SubchannelHelpers.h File Reference

#include "AMP/mesh/Mesh.h"
#include "AMP/mesh/MeshElement.h"
#include "AMP/operators/subchannel/SubchannelOperatorParameters.h"
#include "AMP/operators/subchannel/SubchannelPhysicsModel.h"
#include "AMP/vectors/Vector.h"
#include <string>
#include <vector>

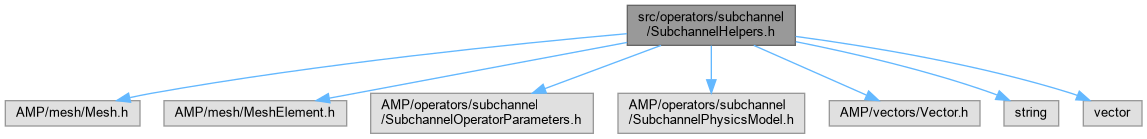

Include dependency graph for SubchannelHelpers.h:

Go to the source code of this file.

Namespaces
namespace	AMP
namespace	AMP::Operator
namespace	AMP::Operator::Subchannel

Functions
std::shared_ptr< const SubchannelOperatorParameters >	AMP::Operator::Subchannel::convert (std::shared_ptr< const OperatorParameters >)
AMP::LinearAlgebra::Vector::shared_ptr	AMP::Operator::Subchannel::getCladHydraulicDiameter (std::shared_ptr< AMP::Mesh::Mesh > clad, std::shared_ptr< AMP::Mesh::Mesh > subchannel, AMP::AMP_MPI comm)
	Function to get the hydraulic diameter on the clad surface.
void	AMP::Operator::Subchannel::getCladProperties (AMP::AMP_MPI comm, std::shared_ptr< AMP::Mesh::Mesh > clad, std::vector< double > &x, std::vector< double > &y, std::vector< double > &diam)
	Function to get the coordinates of the clad.
std::vector< double >	AMP::Operator::Subchannel::getHeatFluxClad (std::vector< double > z, std::vector< AMP::Mesh::MeshElementID > face_ids, double channelDiam, double reynolds, double prandtl, double fraction, std::shared_ptr< SubchannelPhysicsModel > subchannelPhysicsModel, AMP::LinearAlgebra::Vector::const_shared_ptr flow, AMP::LinearAlgebra::Vector::const_shared_ptr clad_temp)
	Function to get the heat flux of the rod.
std::vector< double >	AMP::Operator::Subchannel::getHeatFluxGeneration (std::string shape, std::vector< double > z, double diam, double Q_tot)
	Function to get the heat flux of the rod.
std::vector< double >	AMP::Operator::Subchannel::getHeatFluxGenerationWithDiscretizationError (std::string shape, std::vector< double > z, double diam, double Q_tot)
	Function to get the heat flux of the rod; uses a midpoint average, leading to discretization error.
size_t	AMP::Operator::Subchannel::getNumberOfSubchannels (std::shared_ptr< AMP::Mesh::Mesh > subchannel)
	Function to get the number of subchannels from the mesh.
void	AMP::Operator::Subchannel::getSubchannelProperties (std::shared_ptr< AMP::Mesh::Mesh > subchannel, const std::vector< double > &clad_x, const std::vector< double > &clad_y, const std::vector< double > &clad_d, std::vector< double > &x, std::vector< double > &y, std::vector< double > &area, std::vector< double > &diam, std::vector< double > &rod_diameter, std::vector< double > &channel_fraction)
	Function to get some basic properties for each subchannel based on the mesh.
std::shared_ptr< AMP::Mesh::Mesh >	AMP::Operator::Subchannel::subsetForSubchannel (std::shared_ptr< AMP::Mesh::Mesh > subchannel, size_t i, size_t j)
	Function to subset the subchannel mesh for a particular subchannel.
