A class used to abstract away geometry information from an application or mesh. More...

#include <Geometry.h>

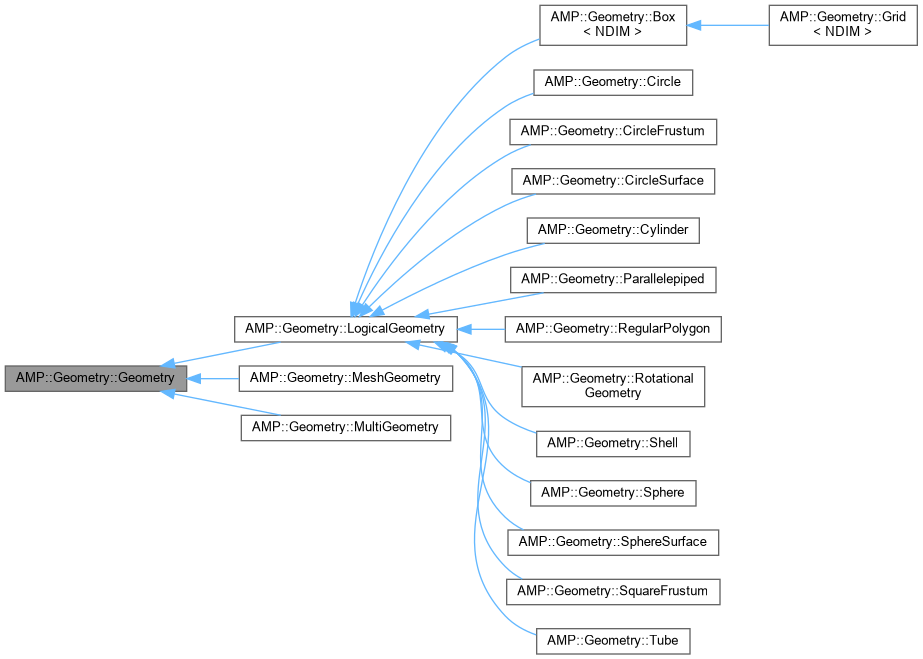

Inheritance diagram for AMP::Geometry::Geometry:

[legend]

Public Member Functions
virtual std::pair< Point, Point >	box () const =0
	Return the bounding box.

virtual Point	centroid () const =0
	Return the centroid.

virtual std::unique_ptr< AMP::Geometry::Geometry >	clone () const =0
	Clone the object.

virtual void	displace (const double *x)=0
	Displace the entire geometry.

virtual double	distance (const Point &pos, const Point &dir) const =0
	Calculate the distance to the object given a ray.

uint8_t	getDim () const
	Get the number of dimensions for the object.

virtual AMP::Mesh::GeomType	getGeomType () const
	Get the geometric type for the geometry.

virtual uint64_t	getID () const
	Return a unique hash id.

virtual std::string	getName () const =0
	Get the name of the geometry.

virtual bool	inside (const Point &pos) const =0
	Is the point in the geometry.

virtual bool	isConvex () const =0
	Is the object convex.

virtual Point	nearest (const Point &pos) const =0
	Calculate the nearest point on the surface.

virtual int	NSurface () const =0
	Get the number of surfaces.

bool	operator!= (const Geometry &rhs) const
	Check if two geometries are not equal.

virtual bool	operator== (const Geometry &rhs) const =0
	Check if two geometries are equal.

virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register child objects.

virtual int	surface (const Point &x) const =0
	Get the surface id.

virtual Point	surfaceNorm (const Point &x) const =0
	Return the outward normal to a surface.

virtual double	volume () const =0
	Return the volume.

virtual void	writeRestart (int64_t fid) const
	Write restart data to file.

virtual	~Geometry ()=default
	Destructor.

Static Public Member Functions
static std::shared_ptr< AMP::Geometry::Geometry >	buildGeometry (std::shared_ptr< const AMP::Database > db)
	Create a geometry.

Protected Member Functions
	Geometry (const Geometry &)=default

	Geometry (Geometry &&)=delete

	Geometry (int ndim)
	Empty constructor for the base class.

	Geometry (int64_t fid)
	Initialize the base class from file.

Geometry &	operator= (const Geometry &)=delete

Geometry &	operator= (Geometry &&)=delete

Protected Attributes
const uint8_t	d_physicalDim

Detailed Description

A class used to abstract away geometry information from an application or mesh.

This class provides routines for reading, accessing and writing geometries.

Definition at line 28 of file Geometry.h.

Constructor & Destructor Documentation

◆ ~Geometry()

virtual AMP::Geometry::Geometry::~Geometry ( )

virtualdefault

Destructor.

◆ Geometry() [1/4]

AMP::Geometry::Geometry::Geometry ( int64_t fid )

protected

Initialize the base class from file.

◆ Geometry() [2/4]

AMP::Geometry::Geometry::Geometry ( int ndim )

inlineprotected

Empty constructor for the base class.

Definition at line 190 of file Geometry.h.

◆ Geometry() [3/4]

AMP::Geometry::Geometry::Geometry ( Geometry && )

protecteddelete

◆ Geometry() [4/4]

AMP::Geometry::Geometry::Geometry ( const Geometry & )

protecteddefault

Member Function Documentation

◆ box()

virtual std::pair< Point, Point > AMP::Geometry::Geometry::box ( ) const

pure virtual

Return the bounding box.

This function will return the bounding box of the object

Returns: Returns the bounding box [lb,ub]

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::RotationalGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ buildGeometry()

static std::shared_ptr< AMP::Geometry::Geometry > AMP::Geometry::Geometry::buildGeometry ( std::shared_ptr< const AMP::Database > db )

static

Create a geometry.

This function will create a geometry based on the input database.

Parameters

[in] db Parameters for constructing a geometry from an input database

◆ centroid()

virtual Point AMP::Geometry::Geometry::centroid ( ) const

pure virtual

Return the centroid.

This function will return the centroid of the object. The centroid is equivalent to the center of mass of object of uniform density.

Returns: Returns the physical coordinates

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::RotationalGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ clone()

virtual std::unique_ptr< AMP::Geometry::Geometry > AMP::Geometry::Geometry::clone ( ) const

pure virtual

Clone the object.

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::MultiGeometry, AMP::Geometry::RotationalGeometry, AMP::Geometry::Grid< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ displace()

virtual void AMP::Geometry::Geometry::displace ( const double * x )

pure virtual

Displace the entire geometry.

This function will displace the entire geometry by a scalar value. The displacement vector should be the size of the physical dimension.

Parameters

[in] x Displacement vector

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::MultiGeometry, AMP::Geometry::RotationalGeometry, AMP::Geometry::Grid< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ distance()

virtual double AMP::Geometry::Geometry::distance	(	const Point &	pos,
		const Point &	dir
	)		const

pure virtual

Calculate the distance to the object given a ray.

This function computes the distance to the object given a ray. If the ray is inside the object, this distance is negitive. If the ray will never intersect the object, this distance is inf.

Parameters

[in]	pos	Current position of ray
[in]	dir	Direction of ray (should be normalized for most uses)

Returns: Returns the distance to the nearest surface (intersection = pos + dir*distance)

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, AMP::Geometry::Tube, and AMP::Geometry::RotationalGeometry.

◆ getDim()

uint8_t AMP::Geometry::Geometry::getDim ( ) const

inline

Get the number of dimensions for the object.

This function returns the number of physical dimensions for the geometry

Returns: Returns the number of physical dimensions

Definition at line 42 of file Geometry.h.

References d_physicalDim.

◆ getGeomType()

virtual AMP::Mesh::GeomType AMP::Geometry::Geometry::getGeomType ( ) const

virtual

Get the geometric type for the geometry.

This function returns the largest geometric type supported by the geometry

Returns: Returns the geometric dimensions

Reimplemented in AMP::Geometry::LogicalGeometry.

◆ getID()

virtual uint64_t AMP::Geometry::Geometry::getID ( ) const

virtual

Return a unique hash id.

◆ getName()

virtual std::string AMP::Geometry::Geometry::getName ( ) const

pure virtual

Get the name of the geometry.

Implemented in AMP::Geometry::RotationalGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Grid< NDIM >, AMP::Geometry::RegularPolygon, AMP::Geometry::MultiGeometry, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ inside()

virtual bool AMP::Geometry::Geometry::inside ( const Point & pos ) const

pure virtual

Is the point in the geometry.

This function checks if the ray is in the geometry. If it is on the surface, it will return true.

Parameters

[in] pos Current position

Returns: Returns true if the point is inside the geometry (or on the surface)

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, AMP::Geometry::Tube, and AMP::Geometry::RotationalGeometry.

◆ isConvex()

virtual bool AMP::Geometry::Geometry::isConvex ( ) const

pure virtual

Is the object convex.

Check if the geometric object is convex

Returns: Returns true if the object is convex

Implemented in AMP::Geometry::RotationalGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ nearest()

virtual Point AMP::Geometry::Geometry::nearest ( const Point & pos ) const

pure virtual

Calculate the nearest point on the surface.

This function computes the nearest point on the surface

Parameters

[in] pos Current position of ray

Returns: Returns the nearest surface point

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, AMP::Geometry::Tube, and AMP::Geometry::RotationalGeometry.

◆ NSurface()

virtual int AMP::Geometry::Geometry::NSurface ( ) const

pure virtual

Get the number of surfaces.

This function will return the number of unique surfaces

Returns: Returns the number of unique surfaces

Implemented in AMP::Geometry::RotationalGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ operator!=()

bool AMP::Geometry::Geometry::operator!= ( const Geometry & rhs ) const

inline

Check if two geometries are not equal.

Definition at line 151 of file Geometry.h.

References operator==().

◆ operator=() [1/2]

Geometry & AMP::Geometry::Geometry::operator= ( const Geometry & )

protecteddelete

◆ operator=() [2/2]

Geometry & AMP::Geometry::Geometry::operator= ( Geometry && )

protecteddelete

◆ operator==()

virtual bool AMP::Geometry::Geometry::operator== ( const Geometry & rhs ) const

pure virtual

Check if two geometries are equal.

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::MultiGeometry, AMP::Geometry::Grid< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

Referenced by operator!=().

◆ registerChildObjects()

virtual void AMP::Geometry::Geometry::registerChildObjects ( AMP::IO::RestartManager * manager ) const

virtual

Register child objects.

This function register child objects if necessary

Parameters

manager Restart manager

Reimplemented in AMP::Geometry::MultiGeometry.

◆ surface()

virtual int AMP::Geometry::Geometry::surface ( const Point & x ) const

pure virtual

Get the surface id.

This function will return the surface id closest to the point

Parameters

[in] x Current position

Returns: Returns the surface id (0:NSurface-1)

Implemented in AMP::Geometry::Circle, AMP::Geometry::CircleSurface, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::RotationalGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::CircleFrustum, AMP::Geometry::Cylinder, AMP::Geometry::Shell, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ surfaceNorm()

virtual Point AMP::Geometry::Geometry::surfaceNorm ( const Point & x ) const

pure virtual

Return the outward normal to a surface.

This function will return the surface id and outward normal to the surface at the given point

Parameters

[in] x Current position

Returns: Returns the surface normal

Implemented in AMP::Geometry::Parallelepiped, AMP::Geometry::Sphere, AMP::Geometry::RotationalGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ volume()

virtual double AMP::Geometry::Geometry::volume ( ) const

pure virtual

Return the volume.

This function will return the interior volume of the object

Returns: Returns the volume

Implemented in AMP::Geometry::MeshGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::RotationalGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

◆ writeRestart()

virtual void AMP::Geometry::Geometry::writeRestart ( int64_t fid ) const

virtual

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::Geometry::LogicalGeometry, AMP::Geometry::MultiGeometry, AMP::Geometry::MeshGeometry, AMP::Geometry::Box< NDIM >, AMP::Geometry::Grid< NDIM >, AMP::Geometry::Circle, AMP::Geometry::CircleFrustum, AMP::Geometry::CircleSurface, AMP::Geometry::Cylinder, AMP::Geometry::Parallelepiped, AMP::Geometry::RegularPolygon, AMP::Geometry::Shell, AMP::Geometry::Sphere, AMP::Geometry::SphereSurface, AMP::Geometry::SquareFrustum, and AMP::Geometry::Tube.

Member Data Documentation

◆ d_physicalDim

const uint8_t AMP::Geometry::Geometry::d_physicalDim

protected

Definition at line 200 of file Geometry.h.

Referenced by getDim().

The documentation for this class was generated from the following file:

src/geometry/Geometry.h
