AMP::LinearAlgebra::Variable Class Reference

A description of the data in the vector. More...

#include <Variable.h>

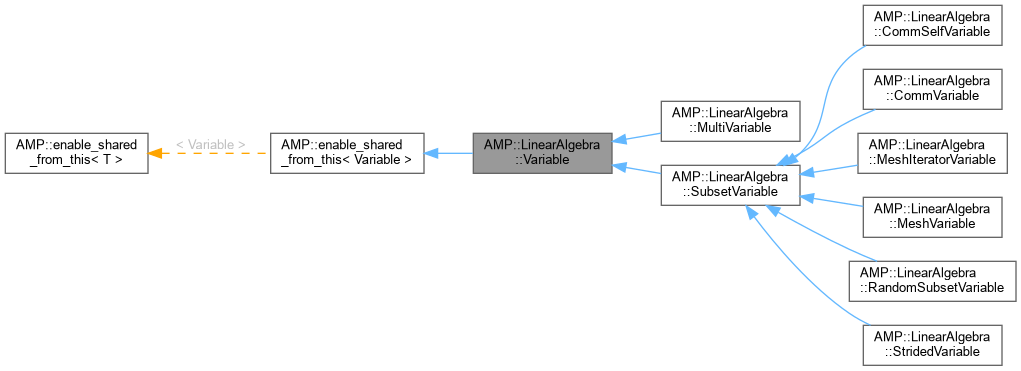

Inheritance diagram for AMP::LinearAlgebra::Variable:

Public Member Functions
virtual std::string	className () const
	A function that returns the name of a variable.
std::shared_ptr< Variable >	clone () const
	Create a variable of the same type with a new name.
virtual std::shared_ptr< Variable >	clone (const std::string &name) const
	Create a variable of the same type with a new name.
virtual std::shared_ptr< VectorSelector >	createVectorSelector () const
	Create a VectorSelector.
virtual uint64_t	getID () const
	Get a unique id hash for the vector.
auto &	getName () const
	A function that returns the name of a variable.
virtual const Units &	getUnits () const
	Get the units of this variable.
bool	operator!= (const Variable &rhs) const
	Inverse of ==.
virtual bool	operator== (const Variable &rhs) const
	Compares two variables for equality.
virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register any child objects.
virtual void	setUnits (const Units &u)
	Set the units of this variable.
std::shared_ptr< Variable >	shared_from_this ()
std::shared_ptr< const Variable >	shared_from_this () const
	Variable ()=default
	Variable (const std::string &name)
	Construct a variable with a name.
	Variable (int64_t fid)
	Read restart data to file.
virtual void	writeRestart (int64_t fid) const
	Write restart data to file.
virtual	~Variable ()
	Destructor.

Protected Attributes
AMP::Units	d_Units
	The units this variable is measured in.
std::string	d_VariableName
	A name given to the variable.
std::weak_ptr< Variable >	weak_ptr_

Detailed Description

A description of the data in the vector.

This class stores information about the vector such as the name and units. It is used in subsetting operations.

Definition at line 45 of file Variable.h.

Constructor & Destructor Documentation

Variable() [1/3]

AMP::LinearAlgebra::Variable::Variable ( )

default

Variable() [2/3]

AMP::LinearAlgebra::Variable::Variable ( const std::string &  name )

explicit

Construct a variable with a name.

At the very least, a variable must have a name. Since this class is virtual, this constructor is used by derived classes.

Parameters

name	The name of the variable

~Variable()

virtual AMP::LinearAlgebra::Variable::~Variable ( )

virtual

Destructor.

Variable() [3/3]

AMP::LinearAlgebra::Variable::Variable

(

int64_t

fid

)

Read restart data to file.

This function will create a variable from the restart file

Parameters

fid	File identifier to write

Member Function Documentation

className()

virtual std::string AMP::LinearAlgebra::Variable::className ( ) const

inlinevirtual

A function that returns the name of a variable.

This gives access to the name

Reimplemented in AMP::LinearAlgebra::CommSelfVariable, AMP::LinearAlgebra::CommVariable, AMP::LinearAlgebra::MeshVariable, AMP::LinearAlgebra::MeshIteratorVariable, AMP::LinearAlgebra::MultiVariable, AMP::LinearAlgebra::RandomSubsetVariable, AMP::LinearAlgebra::StridedVariable, and AMP::LinearAlgebra::SubsetVariable.

Definition at line 80 of file Variable.h.

clone() [1/2]

std::shared_ptr< Variable > AMP::LinearAlgebra::Variable::clone

(

)

const

Create a variable of the same type with a new name.

This function will create a "deep" copy of this variable.

clone() [2/2]

virtual std::shared_ptr< Variable > AMP::LinearAlgebra::Variable::clone ( const std::string &  name ) const

virtual

Create a variable of the same type with a new name.

This function will create a "deep" copy of this variable.

Reimplemented in AMP::LinearAlgebra::MultiVariable.

createVectorSelector()

virtual std::shared_ptr< VectorSelector > AMP::LinearAlgebra::Variable::createVectorSelector ( ) const

virtual

Create a VectorSelector.

This function will create a VectorSelector that is able to subset a vector for the variable. This is used by Vector::subsetVectorForVariable which then calls Vector::selectInto.

Reimplemented in AMP::LinearAlgebra::CommSelfVariable, AMP::LinearAlgebra::CommVariable, AMP::LinearAlgebra::MeshVariable, AMP::LinearAlgebra::MeshIteratorVariable, AMP::LinearAlgebra::MultiVariable, AMP::LinearAlgebra::StridedVariable, and AMP::LinearAlgebra::SubsetVariable.

getID()

virtual uint64_t AMP::LinearAlgebra::Variable::getID ( ) const

virtual

Get a unique id hash for the vector.

Reimplemented in AMP::LinearAlgebra::CommSelfVariable, AMP::LinearAlgebra::CommVariable, AMP::LinearAlgebra::MeshVariable, and AMP::LinearAlgebra::MeshIteratorVariable.

getName()

auto & AMP::LinearAlgebra::Variable::getName ( ) const

inline

A function that returns the name of a variable.

This gives access to the name

Definition at line 74 of file Variable.h.

References d_VariableName.

getUnits()

virtual const Units & AMP::LinearAlgebra::Variable::getUnits ( ) const

virtual

Get the units of this variable.

operator!=()

bool AMP::LinearAlgebra::Variable::operator!=

(

const Variable &

rhs

)

const

Inverse of ==.

This function performs an equality check and negates it.

Parameters

rhs	Variable to compare

operator==()

virtual bool AMP::LinearAlgebra::Variable::operator== ( const Variable &  rhs ) const

virtual

Compares two variables for equality.

This operation compares the names.

Parameters

rhs	Variable to compare

Reimplemented in AMP::LinearAlgebra::MultiVariable.

registerChildObjects()

virtual void AMP::LinearAlgebra::Variable::registerChildObjects ( AMP::IO::RestartManager *  manager ) const

virtual

Register any child objects.

This function will register child objects with the manager

Parameters

manager

Restart manager

Reimplemented in AMP::LinearAlgebra::MultiVariable.

setUnits()

virtual void AMP::LinearAlgebra::Variable::setUnits ( const Units &  u )

virtual

Set the units of this variable.

Reimplemented in AMP::LinearAlgebra::MultiVariable.

shared_from_this() [1/2]

std::shared_ptr< Variable > AMP::enable_shared_from_this< Variable >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

shared_from_this() [2/2]

std::shared_ptr< const Variable > AMP::enable_shared_from_this< Variable >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

writeRestart()

virtual void AMP::LinearAlgebra::Variable::writeRestart ( int64_t  fid ) const

virtual

Write restart data to file.

This function will the variable to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::LinearAlgebra::CommSelfVariable, AMP::LinearAlgebra::CommVariable, AMP::LinearAlgebra::MeshVariable, AMP::LinearAlgebra::MeshIteratorVariable, AMP::LinearAlgebra::MultiVariable, AMP::LinearAlgebra::RandomSubsetVariable, AMP::LinearAlgebra::StridedVariable, and AMP::LinearAlgebra::SubsetVariable.

Member Data Documentation

d_Units

AMP::Units AMP::LinearAlgebra::Variable::d_Units

protected

The units this variable is measured in.

Definition at line 155 of file Variable.h.

d_VariableName

std::string AMP::LinearAlgebra::Variable::d_VariableName

protected

A name given to the variable.

Variables have names for easy identification. For instance, some variables are called displacement, concentration, search direction, etc.

Definition at line 151 of file Variable.h.

Referenced by getName().

weak_ptr_

std::weak_ptr<Variable > AMP::enable_shared_from_this< Variable >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

---

The documentation for this class was generated from the following file:

• src/vectors/Variable.h
