#include <MeshElement.h>

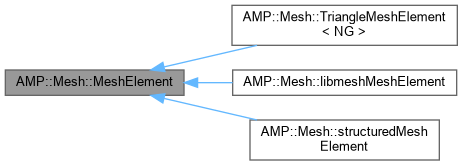

Inheritance diagram for AMP::Mesh::MeshElement:

[legend]

Public Types
using	ElementListPtr = MeshElementVectorPtr

Public Member Functions
virtual Point	centroid () const
	Return the centroid of the element.

virtual std::unique_ptr< MeshElement >	clone () const
	Clone the element.

virtual bool	containsPoint (const Point &pos, double TOL=1e-12) const
	Return true if the element contains the point.

bool	containsPoint (const std::vector< double > &pos, double TOL=1e-12) const
	Return true if the element contains the point.

virtual Point	coord () const
	Return the coordinates of the vertex (only applies to vertices)

double	coord (int i) const
	Return the coordinate of the vertex.

virtual double	distance (const Point &pos, const Point &dir) const
	Calculate the distance to the element given a ray.

virtual std::string	elementClass () const
	Return the element class.

GeomType	elementType () const
	Return the element type.

virtual ElementListPtr	getElements (const GeomType type) const
	Return the elements composing the current element.

virtual int	getElementsID (const GeomType type, MeshElementID *ID) const
	Return the IDs of the elements composing the current element.

virtual ElementListPtr	getNeighbors () const

virtual void	getNeighborVertices (std::vector< Point > &vertices) const

virtual const typeID &	getTypeID () const
	Return the typeID of the underlying element.

virtual void	getVertices (std::vector< Point > &vertices) const

virtual MeshElementID	globalID () const
	Return the unique global ID of the element.

unsigned int	globalOwnerRank (const Mesh &mesh) const
	Return the owner rank according to AMP_COMM_WORLD.

virtual bool	isInBlock (int id) const
	Check if the current element is in the given block.

bool	isNull () const
	Is the mesh element null.

virtual bool	isOnBoundary (int id) const
	Check if the current element is on the given boundary.

virtual bool	isOnSurface () const
	Check if the element is on the surface.

	MeshElement ()=default
	Empty constructor for a MeshElement.

virtual Point	nearest (const Point &pos) const
	Calculate the nearest point on the element.

virtual Point	norm () const
	Return the normal to the current element (does not apply to all elements)

bool	operator!= (const MeshElement &rhs) const

bool	operator!= (const MeshElementID &rhs) const

bool	operator< (const MeshElement &rhs) const

bool	operator< (const MeshElementID &rhs) const

bool	operator<= (const MeshElement &rhs) const

bool	operator<= (const MeshElementID &rhs) const

bool	operator== (const MeshElement &rhs) const

bool	operator== (const MeshElementID &rhs) const

bool	operator> (const MeshElement &rhs) const

bool	operator> (const MeshElementID &rhs) const

bool	operator>= (const MeshElement &rhs) const

bool	operator>= (const MeshElementID &rhs) const

std::string	print (uint8_t indent=0) const
	Print info about the element.

virtual double	volume () const
	Return the volume of the current element (does not apply to vertices)

virtual	~MeshElement ()=default
	Destructor for a MeshElement.

Protected Member Functions
	MeshElement (const MeshElement &)=default

	MeshElement (MeshElement &&)=default

MeshElement &	operator= (const MeshElement &)=default

MeshElement &	operator= (MeshElement &&)=default

Detailed Description

Definition at line 26 of file MeshElement.h.

Member Typedef Documentation

◆ ElementListPtr

using AMP::Mesh::MeshElement::ElementListPtr = MeshElementVectorPtr

Definition at line 29 of file MeshElement.h.

Constructor & Destructor Documentation

◆ MeshElement() [1/3]

AMP::Mesh::MeshElement::MeshElement ( )

default

Empty constructor for a MeshElement.

◆ ~MeshElement()

virtual AMP::Mesh::MeshElement::~MeshElement ( )

virtualdefault

Destructor for a MeshElement.

◆ MeshElement() [2/3]

AMP::Mesh::MeshElement::MeshElement ( const MeshElement & )

protecteddefault

◆ MeshElement() [3/3]

AMP::Mesh::MeshElement::MeshElement ( MeshElement && )

protecteddefault

Member Function Documentation

◆ centroid()

virtual Point AMP::Mesh::MeshElement::centroid ( ) const

virtual

Return the centroid of the element.

This function returns the centroid of the element. The centroid is defined as the average of the coordinates of the vertices. The centroid of a vertex is the vertex and will return the same result as coord().

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ clone()

virtual std::unique_ptr< MeshElement > AMP::Mesh::MeshElement::clone ( ) const

virtual

Clone the element.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ containsPoint() [1/2]

virtual bool AMP::Mesh::MeshElement::containsPoint	(	const Point &	pos,
		double	TOL = `1e-12`
	)		const

virtual

Return true if the element contains the point.

This function checks if the given point is inside or within TOL of the given element. If the current element is a vertex, this function checks if the point is with TOL of the vertex.

Parameters

pos	The coordinates of the point to check.
TOL	The tolerance to use for the computation.

Reimplemented in AMP::Mesh::TriangleMeshElement< NG >, AMP::Mesh::libmeshMeshElement, and AMP::Mesh::structuredMeshElement.

◆ containsPoint() [2/2]

bool AMP::Mesh::MeshElement::containsPoint	(	const std::vector< double > &	pos,
		double	TOL = `1e-12`
	)		const

Return true if the element contains the point.

This function checks if the given point is inside or within TOL of the given element. If the current element is a vertex, this function checks if the point is with TOL of the vertex.

Parameters

pos	The coordinates of the point to check.
TOL	The tolerance to use for the computation.

◆ coord() [1/2]

virtual Point AMP::Mesh::MeshElement::coord ( ) const

virtual

Return the coordinates of the vertex (only applies to vertices)

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::TriangleMeshElement< NG >, and AMP::Mesh::structuredMeshElement.

◆ coord() [2/2]

double AMP::Mesh::MeshElement::coord ( int i ) const

inline

Return the coordinate of the vertex.

This function returns the coordinates of the vertex in the given direction (only applies to vertices).

Parameters

i	The direction requested. Equivalent to coord()[i]

Definition at line 61 of file MeshElement.h.

References coord().

Referenced by coord().

◆ distance()

virtual double AMP::Mesh::MeshElement::distance	(	const Point &	pos,
		const Point &	dir
	)		const

virtual

Calculate the distance to the element given a ray.

This function computes the distance to the element given a ray. If the ray will never intersect the element, this distance is inf.

Parameters

[in]	pos	Current position of ray
[in]	dir	Direction of ray (should be normalized for most uses)

Returns: Returns the distance to the element surface

Reimplemented in AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ elementClass()

virtual std::string AMP::Mesh::MeshElement::elementClass ( ) const

virtual

Return the element class.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ elementType()

GeomType AMP::Mesh::MeshElement::elementType ( ) const

inline

Return the element type.

Definition at line 39 of file MeshElement.h.

References globalID(), and AMP::Mesh::MeshElementID::type().

◆ getElements()

virtual ElementListPtr AMP::Mesh::MeshElement::getElements ( const GeomType type ) const

virtual

Return the elements composing the current element.

Reimplemented in AMP::Mesh::structuredMeshElement, AMP::Mesh::libmeshMeshElement, AMP::Mesh::TriangleMeshElement< NG >, and AMP::Mesh::structuredMeshElement.

◆ getElementsID()

virtual int AMP::Mesh::MeshElement::getElementsID	(	const GeomType	type,
		MeshElementID *	ID
	)		const

virtual

Return the IDs of the elements composing the current element.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::TriangleMeshElement< NG >, and AMP::Mesh::structuredMeshElement.

◆ getNeighbors()

virtual ElementListPtr AMP::Mesh::MeshElement::getNeighbors ( ) const

virtual

Return the elements neighboring the current element. One neighbor is returned for each side of the element. If the side is on the surface, then it's neighbor is null. For Verticies, a list of all vertices that share an element is returned. This list is in unsorted order.

Reimplemented in AMP::Mesh::structuredMeshElement, AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ getNeighborVertices()

virtual void AMP::Mesh::MeshElement::getNeighborVertices ( std::vector< Point > & vertices ) const

virtual

Return the vertex coordinates for all neighboring elements excluding verticies composing the current element. Note the default implementation will call getNeighbors followed by getVertices, derived classes may implement a more efficient alternative

◆ getTypeID()

virtual const typeID & AMP::Mesh::MeshElement::getTypeID ( ) const

virtual

Return the typeID of the underlying element.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ getVertices()

virtual void AMP::Mesh::MeshElement::getVertices ( std::vector< Point > & vertices ) const

virtual

Return the vertex coordinates composing the current element. For a node, this will return the equivalent to coord(). For an element, this will return the equivalent to getElements(Vertex)->coord(). Note the default implementation will call getElements followed by coord, derived classes may implement a more efficient alternative

Reimplemented in AMP::Mesh::structuredMeshElement.

◆ globalID()

virtual MeshElementID AMP::Mesh::MeshElement::globalID ( ) const

virtual

Return the unique global ID of the element.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

Referenced by elementType(), isNull(), operator!=(), operator!=(), operator<(), operator<(), operator<=(), operator<=(), operator==(), operator==(), operator>(), operator>(), operator>=(), and operator>=().

◆ globalOwnerRank()

unsigned int AMP::Mesh::MeshElement::globalOwnerRank ( const Mesh & mesh ) const

Return the owner rank according to AMP_COMM_WORLD.

◆ isInBlock()

virtual bool AMP::Mesh::MeshElement::isInBlock ( int id ) const

virtual

Check if the current element is in the given block.

Check if the current element is in the block specified by the given id

Parameters

id	The block id to check

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ isNull()

bool AMP::Mesh::MeshElement::isNull ( ) const

inline

Is the mesh element null.

Definition at line 36 of file MeshElement.h.

References globalID(), and AMP::Mesh::MeshElementID::isNull().

◆ isOnBoundary()

virtual bool AMP::Mesh::MeshElement::isOnBoundary ( int id ) const

virtual

Check if the current element is on the given boundary.

Check if the current element is on the boundary specified by the given id

Parameters

id	The boundary id to check

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ isOnSurface()

virtual bool AMP::Mesh::MeshElement::isOnSurface ( ) const

virtual

Check if the element is on the surface.

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ nearest()

virtual Point AMP::Mesh::MeshElement::nearest ( const Point & pos ) const

virtual

Calculate the nearest point on the element.

This function computes nearest point on/in the element to the given point

Parameters

[in] pos Current position of the point

Reimplemented in AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ norm()

virtual Point AMP::Mesh::MeshElement::norm ( ) const

virtual

Return the normal to the current element (does not apply to all elements)

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

◆ operator!=() [1/2]

bool AMP::Mesh::MeshElement::operator!= ( const MeshElement & rhs ) const

inline

Definition at line 43 of file MeshElement.h.

References globalID().

◆ operator!=() [2/2]

bool AMP::Mesh::MeshElement::operator!= ( const MeshElementID & rhs ) const

inline

Definition at line 49 of file MeshElement.h.

References globalID().

◆ operator<() [1/2]

bool AMP::Mesh::MeshElement::operator< ( const MeshElement & rhs ) const

inline

Definition at line 44 of file MeshElement.h.

References globalID().

◆ operator<() [2/2]

bool AMP::Mesh::MeshElement::operator< ( const MeshElementID & rhs ) const

inline

Definition at line 50 of file MeshElement.h.

References globalID().

◆ operator<=() [1/2]

bool AMP::Mesh::MeshElement::operator<= ( const MeshElement & rhs ) const

inline

Definition at line 46 of file MeshElement.h.

References globalID().

◆ operator<=() [2/2]

bool AMP::Mesh::MeshElement::operator<= ( const MeshElementID & rhs ) const

inline

Definition at line 52 of file MeshElement.h.

References globalID().

◆ operator=() [1/2]

MeshElement & AMP::Mesh::MeshElement::operator= ( const MeshElement & )

protecteddefault

◆ operator=() [2/2]

MeshElement & AMP::Mesh::MeshElement::operator= ( MeshElement && )

protecteddefault

◆ operator==() [1/2]

bool AMP::Mesh::MeshElement::operator== ( const MeshElement & rhs ) const

inline

Definition at line 42 of file MeshElement.h.

References globalID().

◆ operator==() [2/2]

bool AMP::Mesh::MeshElement::operator== ( const MeshElementID & rhs ) const

inline

Definition at line 48 of file MeshElement.h.

References globalID().

◆ operator>() [1/2]

bool AMP::Mesh::MeshElement::operator> ( const MeshElement & rhs ) const

inline

Definition at line 45 of file MeshElement.h.

References globalID().

◆ operator>() [2/2]

bool AMP::Mesh::MeshElement::operator> ( const MeshElementID & rhs ) const

inline

Definition at line 51 of file MeshElement.h.

References globalID().

◆ operator>=() [1/2]

bool AMP::Mesh::MeshElement::operator>= ( const MeshElement & rhs ) const

inline

Definition at line 47 of file MeshElement.h.

References globalID().

◆ operator>=() [2/2]

bool AMP::Mesh::MeshElement::operator>= ( const MeshElementID & rhs ) const

inline

Definition at line 53 of file MeshElement.h.

References globalID().

◆ print()

std::string AMP::Mesh::MeshElement::print ( uint8_t indent = 0 ) const

Print info about the element.

This function returns debug info about the element

Parameters

indent The number of spaces to indent new lines

◆ volume()

virtual double AMP::Mesh::MeshElement::volume ( ) const

virtual

Return the volume of the current element (does not apply to vertices)

Reimplemented in AMP::Mesh::libmeshMeshElement, AMP::Mesh::structuredMeshElement, and AMP::Mesh::TriangleMeshElement< NG >.

The documentation for this class was generated from the following file:

src/mesh/MeshElement.h

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ ElementListPtr

Constructor & Destructor Documentation

◆ MeshElement() [1/3]

◆ ~MeshElement()

◆ MeshElement() [2/3]

◆ MeshElement() [3/3]

Member Function Documentation

◆ centroid()

◆ clone()

◆ containsPoint() [1/2]

◆ containsPoint() [2/2]

◆ coord() [1/2]

◆ coord() [2/2]

◆ distance()

◆ elementClass()

◆ elementType()

◆ getElements()

◆ getElementsID()

◆ getNeighbors()

◆ getNeighborVertices()

◆ getTypeID()

◆ getVertices()

◆ globalID()

◆ globalOwnerRank()

◆ isInBlock()

◆ isNull()

◆ isOnBoundary()

◆ isOnSurface()

◆ nearest()

◆ norm()

◆ operator!=() [1/2]

◆ operator!=() [2/2]

◆ operator<() [1/2]

◆ operator<() [2/2]

◆ operator<=() [1/2]

◆ operator<=() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==() [1/2]

◆ operator==() [2/2]

◆ operator>() [1/2]

◆ operator>() [2/2]

◆ operator>=() [1/2]

◆ operator>=() [2/2]

◆ print()

◆ volume()
