AMP::Operator::MechanicsMaterialModel Class Reference

#include <MechanicsMaterialModel.h>

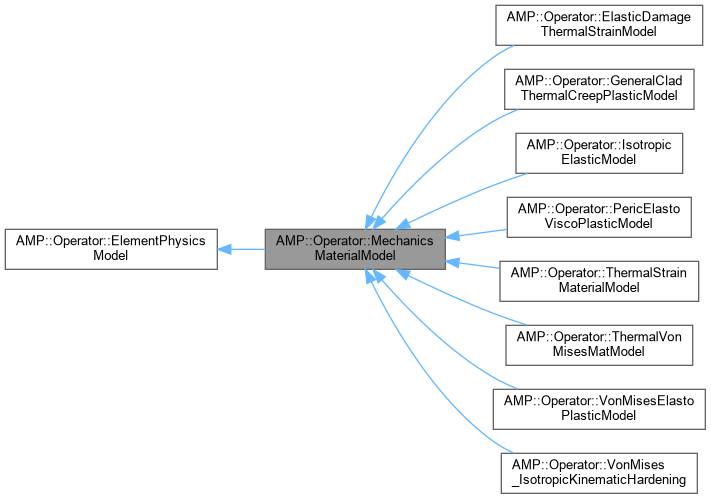

Inheritance diagram for AMP::Operator::MechanicsMaterialModel:

Public Member Functions
virtual void	getConstitutiveMatrix (double *&)
virtual void	getConstitutiveMatrixUpdatedLagrangian (double[6][6], double[3][3])
virtual void	getEffectiveStress (double *&)
virtual void	getEquivalentStrain (double *&)
virtual void	getExternalStress (double *&)
virtual void	getInternalStress (const std::vector< std::vector< double > > &, double *&)
virtual void	getInternalStress_UL (const std::vector< std::vector< double > > &, double *&, double[3][3], double[3][3], double)
std::shared_ptr< AMP::Materials::Material >	getMaterial ()
virtual void	getStressForUpdatedLagrangian (double[6])
virtual void	globalReset ()
	MechanicsMaterialModel (std::shared_ptr< MechanicsMaterialModelParameters > params)
virtual void	nonlinearInitGaussPointOperation (double)
virtual void	nonlinearJacobianGaussPointOperation (const std::vector< std::vector< double > > &)
virtual void	nonlinearJacobianGaussPointOperation_UL (const std::vector< std::vector< double > > &, double[3][3], double[3][3])
virtual void	nonlinearResetGaussPointOperation (const std::vector< std::vector< double > > &)
virtual void	nonlinearResetGaussPointOperation_UL (const std::vector< std::vector< double > > &, double[3][3], double[3][3])
virtual void	postLinearAssembly ()
virtual void	postLinearElementOperation ()
virtual void	postLinearGaussPointOperation ()
virtual void	postNonlinearAssembly ()
virtual void	postNonlinearAssemblyElementOperation ()
virtual void	postNonlinearAssemblyGaussPointOperation ()
virtual void	postNonlinearInit ()
virtual void	postNonlinearInitElementOperation ()
virtual void	postNonlinearInitGaussPointOperation ()
virtual void	postNonlinearJacobian ()
virtual void	postNonlinearJacobianElementOperation ()
virtual void	postNonlinearJacobianGaussPointOperation ()
virtual void	postNonlinearReset ()
virtual void	postNonlinearResetElementOperation ()
virtual void	postNonlinearResetGaussPointOperation ()
virtual void	preLinearAssembly ()
virtual void	preLinearElementOperation ()
virtual void	preLinearGaussPointOperation ()
virtual void	preNonlinearAssembly ()
virtual void	preNonlinearAssemblyElementOperation ()
virtual void	preNonlinearAssemblyGaussPointOperation ()
virtual void	preNonlinearInit (bool, bool)
virtual void	preNonlinearInitElementOperation ()
virtual void	preNonlinearInitGaussPointOperation ()
virtual void	preNonlinearJacobian ()
virtual void	preNonlinearJacobianElementOperation ()
virtual void	preNonlinearJacobianGaussPointOperation ()
virtual void	preNonlinearReset ()
virtual void	preNonlinearResetElementOperation ()
virtual void	preNonlinearResetGaussPointOperation ()
virtual void	setDebugPrintInfoLevel (int print_level)
void	updateTime (double currTime)
virtual	~MechanicsMaterialModel ()

Protected Attributes
bool	d_checkCladOrPellet
double	d_currentTime
int	d_iDebugPrintInfoLevel
std::shared_ptr< AMP::Materials::Material >	d_material
double	d_previousTime
bool	d_useContinuumTangent
bool	d_useJaumannRate
bool	d_useMaterialsLibrary
bool	d_useUpdatedLagrangian

Detailed Description

An abstract base class for representing the mechanics material models. The derived classes can represent both linear and nonlinear material behavior. Derived classes must implement the function named getConstitutiveMatrix, which provides the ConstitutiveMatrix that is used in the construction of the Jacobian. Non-linear material models must implement the function getInternalStress. Linear material models that use an implicit method must implement the getInternalStress function too.

Definition at line 24 of file MechanicsMaterialModel.h.

Constructor & Destructor Documentation

MechanicsMaterialModel()

AMP::Operator::MechanicsMaterialModel::MechanicsMaterialModel ( std::shared_ptr< MechanicsMaterialModelParameters >  params )

inlineexplicit

Constructor. This reads the value for the key USE_MATERIALS_LIBRARY (false by default) from the database object contained in the parameter object, params. This key specifies whether or not the AMP::materials interface is used in this model.

Definition at line 32 of file MechanicsMaterialModel.h.

References AMP_INSIST, d_checkCladOrPellet, d_currentTime, d_material, d_previousTime, d_useContinuumTangent, d_useJaumannRate, d_useMaterialsLibrary, d_useUpdatedLagrangian, and AMP::Materials::getMaterial().

~MechanicsMaterialModel()

virtual AMP::Operator::MechanicsMaterialModel::~MechanicsMaterialModel ( )

inlinevirtual

Destructor.

Definition at line 61 of file MechanicsMaterialModel.h.

Member Function Documentation

getConstitutiveMatrix()

virtual void AMP::Operator::MechanicsMaterialModel::getConstitutiveMatrix ( double *&  )

inlinevirtual

Calculates the constitutive matrix for the material model. This matrix is used for the construction of the Jacobian during the solve process.

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 67 of file MechanicsMaterialModel.h.

getConstitutiveMatrixUpdatedLagrangian()

virtual void AMP::Operator::MechanicsMaterialModel::getConstitutiveMatrixUpdatedLagrangian ( double  [6][6], double  [3][3]  )

inlinevirtual

Calculates the constitutive matrix for the material model in Updated Lagrangian. This matrix is used for the construction of the Jacobian during the solve process.

Reimplemented in AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 73 of file MechanicsMaterialModel.h.

getEffectiveStress()

virtual void AMP::Operator::MechanicsMaterialModel::getEffectiveStress ( double *&  )

inlinevirtual

Used to print the effective stress at any point of the simulation.

Reimplemented in AMP::Operator::PericElastoViscoPlasticModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 96 of file MechanicsMaterialModel.h.

getEquivalentStrain()

virtual void AMP::Operator::MechanicsMaterialModel::getEquivalentStrain ( double *&  )

inlinevirtual

Used to print the equivalent plastic or creep or thermal strain at any point of the simulation.

Reimplemented in AMP::Operator::PericElastoViscoPlasticModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 102 of file MechanicsMaterialModel.h.

getExternalStress()

virtual void AMP::Operator::MechanicsMaterialModel::getExternalStress ( double *&  )

inlinevirtual

Used for linear material models if the problem is being solved in an explicit method. This function has not been implemented, because all the linear material model problems are being solved in implicit way.

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, and AMP::Operator::ThermalStrainMaterialModel.

Definition at line 109 of file MechanicsMaterialModel.h.

getInternalStress()

virtual void AMP::Operator::MechanicsMaterialModel::getInternalStress ( const std::vector< std::vector< double > > &  , double *&    )

inlinevirtual

Given a strain, the stress state is calculated in ths function. It is necessary for non-linear material models or linear models with implicit solver.

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 86 of file MechanicsMaterialModel.h.

getInternalStress_UL()

virtual void AMP::Operator::MechanicsMaterialModel::getInternalStress_UL ( const std::vector< std::vector< double > > &  , double *&  , double  [3][3], double  [3][3], double    )

inlinevirtual

Reimplemented in AMP::Operator::IsotropicElasticModel, AMP::Operator::ThermalStrainMaterialModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 88 of file MechanicsMaterialModel.h.

getMaterial()

std::shared_ptr< AMP::Materials::Material > AMP::Operator::MechanicsMaterialModel::getMaterial ( )

inline

Definition at line 226 of file MechanicsMaterialModel.h.

References d_material.

getStressForUpdatedLagrangian()

virtual void AMP::Operator::MechanicsMaterialModel::getStressForUpdatedLagrangian ( double  [6] )

inlinevirtual

Returns the 6x1 stress vector at the current gauss point. Used in UpdatedLagrangian calculations.

Reimplemented in AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 79 of file MechanicsMaterialModel.h.

globalReset()

virtual void AMP::Operator::MechanicsMaterialModel::globalReset ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 170 of file MechanicsMaterialModel.h.

nonlinearInitGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::nonlinearInitGaussPointOperation ( double  )

inlinevirtual

Initializes all the variables with zero, except the temperature variable which has some non-zero value initially (something like room temperature). The input argument is the initial_Temperature.

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 152 of file MechanicsMaterialModel.h.

nonlinearJacobianGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::nonlinearJacobianGaussPointOperation ( const std::vector< std::vector< double > > &  )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 212 of file MechanicsMaterialModel.h.

nonlinearJacobianGaussPointOperation_UL()

virtual void AMP::Operator::MechanicsMaterialModel::nonlinearJacobianGaussPointOperation_UL ( const std::vector< std::vector< double > > &  , double  [3][3], double  [3][3]  )

inlinevirtual

Reimplemented in AMP::Operator::IsotropicElasticModel, AMP::Operator::ThermalStrainMaterialModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 214 of file MechanicsMaterialModel.h.

nonlinearResetGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::nonlinearResetGaussPointOperation ( const std::vector< std::vector< double > > &  )

inlinevirtual

In the implicit solution technique, once the solver converges, the previous equilibrium values are replaced by the current converged values in this function. The input is a vector of all the variables at that particular gauss point.

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 190 of file MechanicsMaterialModel.h.

nonlinearResetGaussPointOperation_UL()

virtual void AMP::Operator::MechanicsMaterialModel::nonlinearResetGaussPointOperation_UL ( const std::vector< std::vector< double > > &  , double  [3][3], double  [3][3]  )

inlinevirtual

Reimplemented in AMP::Operator::IsotropicElasticModel, AMP::Operator::ThermalStrainMaterialModel, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 192 of file MechanicsMaterialModel.h.

postLinearAssembly()

virtual void AMP::Operator::MechanicsMaterialModel::postLinearAssembly ( )

inlinevirtual

Definition at line 123 of file MechanicsMaterialModel.h.

postLinearElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postLinearElementOperation ( )

inlinevirtual

Definition at line 127 of file MechanicsMaterialModel.h.

postLinearGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postLinearGaussPointOperation ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 131 of file MechanicsMaterialModel.h.

postNonlinearAssembly()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearAssembly ( )

inlinevirtual

Reimplemented in AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 158 of file MechanicsMaterialModel.h.

postNonlinearAssemblyElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearAssemblyElementOperation ( )

inlinevirtual

Definition at line 162 of file MechanicsMaterialModel.h.

postNonlinearAssemblyGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearAssemblyGaussPointOperation ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 166 of file MechanicsMaterialModel.h.

postNonlinearInit()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearInit ( )

inlinevirtual

Definition at line 137 of file MechanicsMaterialModel.h.

postNonlinearInitElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearInitElementOperation ( )

inlinevirtual

Definition at line 141 of file MechanicsMaterialModel.h.

postNonlinearInitGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearInitGaussPointOperation ( )

inlinevirtual

Definition at line 145 of file MechanicsMaterialModel.h.

postNonlinearJacobian()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearJacobian ( )

inlinevirtual

Definition at line 202 of file MechanicsMaterialModel.h.

postNonlinearJacobianElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearJacobianElementOperation ( )

inlinevirtual

Definition at line 206 of file MechanicsMaterialModel.h.

postNonlinearJacobianGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearJacobianGaussPointOperation ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 210 of file MechanicsMaterialModel.h.

postNonlinearReset()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearReset ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 174 of file MechanicsMaterialModel.h.

postNonlinearResetElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearResetElementOperation ( )

inlinevirtual

Definition at line 178 of file MechanicsMaterialModel.h.

postNonlinearResetGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::postNonlinearResetGaussPointOperation ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 182 of file MechanicsMaterialModel.h.

preLinearAssembly()

virtual void AMP::Operator::MechanicsMaterialModel::preLinearAssembly ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 121 of file MechanicsMaterialModel.h.

preLinearElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preLinearElementOperation ( )

inlinevirtual

Definition at line 125 of file MechanicsMaterialModel.h.

preLinearGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preLinearGaussPointOperation ( )

inlinevirtual

Definition at line 129 of file MechanicsMaterialModel.h.

preNonlinearAssembly()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearAssembly ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 156 of file MechanicsMaterialModel.h.

preNonlinearAssemblyElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearAssemblyElementOperation ( )

inlinevirtual

Definition at line 160 of file MechanicsMaterialModel.h.

preNonlinearAssemblyGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearAssemblyGaussPointOperation ( )

inlinevirtual

Definition at line 164 of file MechanicsMaterialModel.h.

preNonlinearInit()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearInit ( bool  , bool    )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 135 of file MechanicsMaterialModel.h.

preNonlinearInitElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearInitElementOperation ( )

inlinevirtual

Definition at line 139 of file MechanicsMaterialModel.h.

preNonlinearInitGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearInitGaussPointOperation ( )

inlinevirtual

Definition at line 143 of file MechanicsMaterialModel.h.

preNonlinearJacobian()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearJacobian ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 200 of file MechanicsMaterialModel.h.

preNonlinearJacobianElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearJacobianElementOperation ( )

inlinevirtual

Definition at line 204 of file MechanicsMaterialModel.h.

preNonlinearJacobianGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearJacobianGaussPointOperation ( )

inlinevirtual

Definition at line 208 of file MechanicsMaterialModel.h.

preNonlinearReset()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearReset ( )

inlinevirtual

Reimplemented in AMP::Operator::ElasticDamageThermalStrainModel, AMP::Operator::GeneralCladThermalCreepPlasticModel, AMP::Operator::IsotropicElasticModel, AMP::Operator::PericElastoViscoPlasticModel, AMP::Operator::ThermalStrainMaterialModel, AMP::Operator::ThermalVonMisesMatModel, AMP::Operator::VonMises_IsotropicKinematicHardening, and AMP::Operator::VonMisesElastoPlasticModel.

Definition at line 172 of file MechanicsMaterialModel.h.

preNonlinearResetElementOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearResetElementOperation ( )

inlinevirtual

Definition at line 176 of file MechanicsMaterialModel.h.

preNonlinearResetGaussPointOperation()

virtual void AMP::Operator::MechanicsMaterialModel::preNonlinearResetGaussPointOperation ( )

inlinevirtual

Definition at line 180 of file MechanicsMaterialModel.h.

setDebugPrintInfoLevel()

virtual void AMP::Operator::ElementPhysicsModel::setDebugPrintInfoLevel ( int  print_level )

inlinevirtualinherited

Specify level of diagnostic information printed during iterations.

Parameters

[in]

print_level

zero prints none or minimal information, higher numbers provide increasingly verbose debugging information.

Definition at line 36 of file ElementPhysicsModel.h.

References AMP::Operator::ElementPhysicsModel::d_iDebugPrintInfoLevel.

updateTime()

void AMP::Operator::MechanicsMaterialModel::updateTime ( double  currTime )

inline

Definition at line 220 of file MechanicsMaterialModel.h.

References d_currentTime, and d_previousTime.

Member Data Documentation

d_checkCladOrPellet

bool AMP::Operator::MechanicsMaterialModel::d_checkCladOrPellet

protected

Definition at line 244 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel().

d_currentTime

double AMP::Operator::MechanicsMaterialModel::d_currentTime

protected

The time at present.

Definition at line 229 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel(), and updateTime().

d_iDebugPrintInfoLevel

int AMP::Operator::ElementPhysicsModel::d_iDebugPrintInfoLevel

protectedinherited

Variable that controls the amount of diagnostic information that gets printed within this material model.

Definition at line 39 of file ElementPhysicsModel.h.

Referenced by AMP::Operator::ElementPhysicsModel::ElementPhysicsModel(), and AMP::Operator::ElementPhysicsModel::setDebugPrintInfoLevel().

d_material

std::shared_ptr<AMP::Materials::Material> AMP::Operator::MechanicsMaterialModel::d_material

protected

Shared pointer to the materials object.

Definition at line 247 of file MechanicsMaterialModel.h.

Referenced by getMaterial(), and MechanicsMaterialModel().

d_previousTime

double AMP::Operator::MechanicsMaterialModel::d_previousTime

protected

Time at the previous step.

Definition at line 231 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel(), and updateTime().

d_useContinuumTangent

bool AMP::Operator::MechanicsMaterialModel::d_useContinuumTangent

protected

Flag to check whether to use Continuum tangent is elasto plasticity or not.

Definition at line 241 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel().

d_useJaumannRate

bool AMP::Operator::MechanicsMaterialModel::d_useJaumannRate

protected

Flag to check whether to use Jaumann rate in updated lagrangian or not.

Definition at line 238 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel().

d_useMaterialsLibrary

bool AMP::Operator::MechanicsMaterialModel::d_useMaterialsLibrary

protected

A flag that is true if the AMP::materials library is used in this model and false otherwise.

Definition at line 233 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel().

d_useUpdatedLagrangian

bool AMP::Operator::MechanicsMaterialModel::d_useUpdatedLagrangian

protected

Flag to check whether to use updated lagrangian or not.

Definition at line 236 of file MechanicsMaterialModel.h.

Referenced by MechanicsMaterialModel().

---

The documentation for this class was generated from the following file:

• src/operators/mechanics/MechanicsMaterialModel.h
