A class used to hold vector data. More...

#include <MultiVectorData.h>

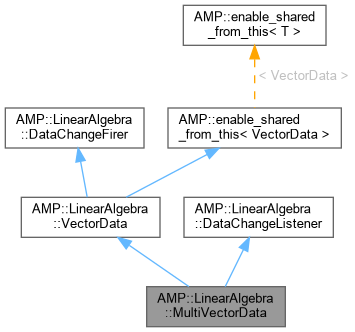

Inheritance diagram for AMP::LinearAlgebra::MultiVectorData:

[legend]

Public Member Functions
template<class TYPE >
void	addGhostValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Add shared values using global identifier.

void	addGhostValuesByGlobalID (size_t, const size_t , const void , const typeID &) override
	Add shared values using global identifier.

template<class TYPE >
void	addValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Add owned or shared values using global identifier.

template<class TYPE >
void	addValuesByLocalID (size_t num, const size_t indices, const TYPE vals)
	Add values to vector entities by their local offset.

void	addValuesByLocalID (size_t, const size_t , const void , const typeID &) override
	Add values to vector entities by their local offset.

void	assemble () override
	This method is used to implement the assemble interface of PETSc.

template<class TYPE = double>
VectorDataIterator< TYPE >	begin ()
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	begin () const
	Return an iterator to the beginning of the data.

std::shared_ptr< VectorData >	cloneData (const std::string &name="") const override
	Clone the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	constBegin () const
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	constEnd () const
	Return an iterator to the end of the data.

bool	containsGlobalElement (size_t) const override

void	copyGhostValues (const VectorData &rhs) override
	Copy ghosted vlues to a vector.

void	dataChanged () override
	Notify listeners that data has changed in this vector.

virtual void	deregisterListener (DataChangeListener *listener)
	Deregister a listener with this DataChangeFirer.

void	dumpGhostedData (std::ostream &out, size_t offset=0) const override
	Write data owned by other processors to an std::ostream.

void	dumpOwnedData (std::ostream &out, size_t GIDoffset=0, size_t LIDoffset=0) const override
	Write owned data to an std::ostream.

template<class TYPE = double>
VectorDataIterator< TYPE >	end ()
	Return an iterator to the end of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	end () const
	Return an iterator to the end of the data.

void	fillGhosts (const Scalar &) override
	Zero all ghost data (does not modify consistent status)

virtual void	fireDataChange ()
	Notify all listeners of a data change event.

size_t	getAllGhostValues (void *, const typeID &) const override
	Get all ghost values in the vector.

const AMP_MPI &	getComm () const override
	Get the communicator.

std::shared_ptr< CommunicationList >	getCommunicationList () const override
	Get the CommunicationList for this Vector.

std::shared_ptr< const VectorData >	getComponent (size_t i=0) const override
	Number of elements in the ith component.

std::shared_ptr< VectorData >	getComponent (size_t i=0) override
	Number of elements in the ith component.

uint64_t	getDataID () const override
	A unique id for the underlying data allocation.

template<class TYPE >
void	getGhostAddValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	get ghosted values to add to off-proc elements

void	getGhostAddValuesByGlobalID (size_t, const size_t , void , const typeID &) const override
	get ghosted values to add to off-proc elements

size_t	getGhostSize () const override
	Number of entries "owned" by other cores stored on this core.

template<class TYPE >
void	getGhostValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	Get ghost values in the vector by their global offset.

void	getGhostValuesByGlobalID (size_t, const size_t , void , const typeID &) const override
	Get ghost values in the vector by their global offset.

size_t	getGlobalSize () const
	Number of total entries in this vector across all cores.

UpdateState	getGlobalUpdateStatus () const
	Return the current update state of the Vector.

uint64_t	getID () const
	Get a unique id hash for the vector.

size_t	getLocalSize () const
	Number of elements "owned" by this core.

std::vector< size_t >	getLocalSizes () const override
	The local sizes on each rank.

size_t	getLocalStartID () const
	get local start id core.

UpdateState	getLocalUpdateStatus () const override
	Return the current update state of the Vector.

AMP::Utilities::MemoryType	getMemoryLocation () const override
	returns the memory location for data

size_t	getNumberOfComponents () const override
	Return integer number of data components.

template<class TYPE >
void	getRawData (TYPE *buf) const
	Copy data out of this vector.

void	getRawData (void *buf, const typeID &id) const override
	Copy data out of this vector.

template<typename RETURN_TYPE >
RETURN_TYPE *	getRawDataBlock (size_t i=0)
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

template<typename RETURN_TYPE >
const RETURN_TYPE *	getRawDataBlock (size_t i=0) const
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

const void *	getRawDataBlockAsVoid (size_t i) const override
	Return a pointer to a particular block of memory in the vector.

void *	getRawDataBlockAsVoid (size_t i) override
	Return a pointer to a particular block of memory in the vector.

typeID	getType (size_t block) const override
	Return the typeid of the given block.

std::shared_ptr< UpdateState >	getUpdateStatusPtr () const override
	Return the current update state of this Vector.

template<class TYPE >
void	getValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	get values in the vector by their local offset

template<class TYPE >
void	getValuesByLocalID (size_t num, const size_t indices, TYPE vals) const
	Get local values in the vector by their global offset.

void	getValuesByLocalID (size_t, const size_t , void , const typeID &) const override
	Get local values in the vector by their global offset.

VectorData *	getVectorData (size_t i)

const VectorData *	getVectorData (size_t i) const

size_t	getVectorDataSize () const

bool	hasContiguousData () const override
	returns whether all data for the vector on a single process is contiguous

bool	hasGhosts () const override
	Check if any entries "owned" by other cores are stored on this core.

virtual bool	isAnAliasOf (const VectorData &rhs) const
	Check if the two VectorData objects are alias of each other.

template<typename TYPE >
bool	isBlockType (size_t i=0) const
	Check if the data is of the given type.

template<typename TYPE >
bool	isType () const
	Check if the data is of the given type.

bool	isType (const typeID &id, size_t block) const
	Is the data of the given type.

void	makeConsistent () override
	Update shared values on entire communicator.

void	makeConsistent (ScatterType t) override
	Update shared values on entire communicator.

	MultiVectorData (const AMP::AMP_MPI &comm)

	MultiVectorData (int64_t fid, AMP::IO::RestartManager *manager)
	Write restart data to file.

	MultiVectorData (VectorData data, const AMP::Discretization::DOFManager manager=nullptr)

size_t	numberOfDataBlocks () const override
	Number of blocks of contiguous data in the Vector.

virtual void	print (std::ostream &os, const std::string &name="A", const std::string &prefix="") const

template<class TYPE >
void	putRawData (const TYPE *buf)
	Copy data into this vector.

void	putRawData (const void *buf, const typeID &id) override
	Copy data into this vector.

void	receiveDataChanged () override
	The method called when a data change event occurs.

void	registerChildObjects (AMP::IO::RestartManager *manager) const override
	Register any child objects.

virtual void	registerListener (DataChangeListener *listener)
	Register a listener with this DataChangeFirer.

virtual void	registerListener (std::shared_ptr< DataChangeListener > listener)
	Register a listener with this DataChangeFirer.

virtual void	reset ()
	reset the vector data object

void	resetMultiVectorData (const AMP::Discretization::DOFManager manager, const std::vector< VectorData > &data)

void	setCommunicationList (std::shared_ptr< CommunicationList > comm) override
	Set the CommunicationList for this Vector.

template<class TYPE >
void	setGhostValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Set ghost values using global identifier.

void	setGhostValuesByGlobalID (size_t, const size_t , const void , const typeID &) override
	Set ghost values using global identifier.

void	setNoGhosts () override
	Ensure this vector has no ghosts.

void	setUpdateStatus (UpdateState state) override
	Sets the current update state of the Vector.

void	setUpdateStatusPtr (std::shared_ptr< UpdateState > rhs) override
	Tie the current update state to another.

template<class TYPE >
void	setValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Set owned or shared values using global identifier.

template<class TYPE >
void	setValuesByLocalID (size_t num, const size_t indices, const TYPE vals)
	Set values in the vector by their local offset.

void	setValuesByLocalID (size_t, const size_t , const void , const typeID &) override
	Set values in the vector by their local offset.

std::shared_ptr< VectorData >	shared_from_this ()

std::shared_ptr< const VectorData >	shared_from_this () const

size_t	sizeOfDataBlock (size_t i=0) const override
	Number of elements in a data block.

size_t	sizeofDataBlockType (size_t i) const override
	Return the result of sizeof(TYPE) for the given data block.

void	swapData (VectorData &rhs) override
	Swap the data with another VectorData object.

std::string	VectorDataName () const override
	Get the type name.

void	writeRestart (int64_t fid) const override
	Write restart data to file.

virtual	~MultiVectorData ()
	Virtual destructor.

Protected Member Functions
template<class TYPE >
size_t	getAllGhostValues (TYPE *) const

void	partitionGlobalValues (const int num, const size_t indices, const void vals, const size_t bytes, std::vector< std::vector< size_t > > &out_indices, std::vector< std::vector< std::byte > > &out_vals, std::vector< std::vector< int > > *remap=nullptr) const

void	partitionLocalValues (const int num, const size_t indices, const void vals, const size_t bytes, std::vector< std::vector< size_t > > &out_indices, std::vector< std::vector< std::byte > > &out_vals, std::vector< std::vector< int > > *remap=nullptr) const

Protected Attributes
AMP::AMP_MPI	d_comm

std::vector< VectorData * >	d_data

AMP::Discretization::multiDOFHelper	d_dofMap

size_t	d_globalSize = 0
	Number of local values.

size_t	d_localSize = 0

size_t	d_localStart = 0
	Number of global values.

std::shared_ptr< UpdateState >	d_UpdateState

std::weak_ptr< VectorData >	weak_ptr_

Private Member Functions
void	deregisterFromFirer (DataChangeFirer *firer)
	Deregister this DataChangeListener with a DataChangeFirer.

void	registerWithFirer (DataChangeFirer *firer)
	Register this DataChangeListener with a DataChangeFirer.

Private Attributes
std::vector< DataChangeFirer * >	d_firers

std::vector< DataChangeListener * >	d_listeners

Detailed Description

A class used to hold vector data.

MultiVectorData is a default implementation of VectorData that stores the local values as a single block of data on the CPU.

Definition at line 29 of file MultiVectorData.h.

Constructor & Destructor Documentation

◆ ~MultiVectorData()

virtual AMP::LinearAlgebra::MultiVectorData::~MultiVectorData ( )

inlinevirtual

Virtual destructor.

Definition at line 34 of file MultiVectorData.h.

◆ MultiVectorData() [1/3]

AMP::LinearAlgebra::MultiVectorData::MultiVectorData ( const AMP::AMP_MPI & comm )

inlineexplicit

Definition at line 137 of file MultiVectorData.h.

◆ MultiVectorData() [2/3]

AMP::LinearAlgebra::MultiVectorData::MultiVectorData	(	VectorData *	data,
		const AMP::Discretization::DOFManager *	manager = `nullptr`
	)

explicit

◆ MultiVectorData() [3/3]

AMP::LinearAlgebra::MultiVectorData::MultiVectorData	(	int64_t	fid,
		AMP::IO::RestartManager *	manager
	)

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to read
manager	Restart manager

Member Function Documentation

◆ addGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add shared values using global identifier.

Parameters

[in]	num	number of values to add
[in]	indices	the indices of the values to add
[in]	vals	the values to place in the vector

◆ addGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::addGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Add shared values using global identifier.

Parameters

[in]	num	number of values to add
[in]	indices	the indices of the values to add
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

Implements AMP::LinearAlgebra::VectorData.

◆ addValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add owned or shared values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

Since the shared buffer and owned buffer are separate, this function must sort the data by buffer before setting values.

◆ addValuesByLocalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add values to vector entities by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{this}_{\mathit{indices}_i} + \mathit{vals}_i \)

◆ addValuesByLocalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::addValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Add values to vector entities by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{this}_{\mathit{indices}_i} + \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ assemble()

void AMP::LinearAlgebra::MultiVectorData::assemble ( )

overridevirtual

This method is used to implement the assemble interface of PETSc.

This method is empty except for instantiations of NativePetscVectorData

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ begin() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::VectorData::begin ( )

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ begin() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::begin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ cloneData()

std::shared_ptr< VectorData > AMP::LinearAlgebra::MultiVectorData::cloneData ( const std::string & name = "" ) const

overridevirtual

Clone the data.

Implements AMP::LinearAlgebra::VectorData.

◆ constBegin()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::constBegin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ constEnd()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::constEnd ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ containsGlobalElement()

bool AMP::LinearAlgebra::MultiVectorData::containsGlobalElement ( size_t ) const

overridevirtual

Implements AMP::LinearAlgebra::VectorData.

◆ copyGhostValues()

void AMP::LinearAlgebra::MultiVectorData::copyGhostValues ( const VectorData & rhs )

overridevirtual

Copy ghosted vlues to a vector.

Parameters

[in] rhs Vector to copy ghost values from

This ensures that ghosted values on this and rhs are the same without a call to makeConsistent.

See also: makeConsistent

Implements AMP::LinearAlgebra::VectorData.

◆ dataChanged()

void AMP::LinearAlgebra::MultiVectorData::dataChanged ( )

overridevirtual

Notify listeners that data has changed in this vector.

Implements AMP::LinearAlgebra::VectorData.

◆ deregisterFromFirer()

void AMP::LinearAlgebra::DataChangeListener::deregisterFromFirer ( DataChangeFirer * firer )

privateinherited

Deregister this DataChangeListener with a DataChangeFirer.

Parameters

firer the data change firer this object will no longer listen for

This method will erase firer from the list. This method is only used by the DataChangeFirer

◆ deregisterListener()

virtual void AMP::LinearAlgebra::DataChangeFirer::deregisterListener ( DataChangeListener * listener )

virtualinherited

Deregister a listener with this DataChangeFirer.

Parameters

[in] listener The listener to remove from the list

Removes a listener from itself.

◆ dumpGhostedData()

void AMP::LinearAlgebra::MultiVectorData::dumpGhostedData	(	std::ostream &	out,
		size_t	offset = `0`
	)		const

overridevirtual

Write data owned by other processors to an std::ostream.

Parameters

[in]	out	The output stream to write to.
[in]	offset	A number to add to the global ID when writing information

Implements AMP::LinearAlgebra::VectorData.

◆ dumpOwnedData()

void AMP::LinearAlgebra::MultiVectorData::dumpOwnedData	(	std::ostream &	out,
		size_t	GIDoffset = `0`,
		size_t	LIDoffset = `0`
	)		const

overridevirtual

Write owned data to an std::ostream.

Parameters

[in]	out	The output stream to write to.
[in]	GIDoffset	A number to add to the global ID when writing information
[in]	LIDoffset	A number to add to the local ID when writing information

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ end() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::VectorData::end ( )

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ end() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::end ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ fillGhosts()

void AMP::LinearAlgebra::MultiVectorData::fillGhosts ( const Scalar & x )

overridevirtual

Zero all ghost data (does not modify consistent status)

Implements AMP::LinearAlgebra::VectorData.

◆ fireDataChange()

virtual void AMP::LinearAlgebra::DataChangeFirer::fireDataChange ( )

virtualinherited

Notify all listeners of a data change event.

Iterates through the list of DataChangeListeners and invokes the receiveDataChanged() method.

Referenced by AMP::LinearAlgebra::ManagedVectorData::receiveDataChanged(), and receiveDataChanged().

◆ getAllGhostValues() [1/2]

template<class TYPE >

size_t AMP::LinearAlgebra::MultiVectorData::getAllGhostValues ( TYPE * ) const

protected

◆ getAllGhostValues() [2/2]

size_t AMP::LinearAlgebra::MultiVectorData::getAllGhostValues	(	void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get all ghost values in the vector.

Parameters

[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value owned by this core.

Returns: Returns the number of ghost values

Implements AMP::LinearAlgebra::VectorData.

◆ getComm()

const AMP_MPI & AMP::LinearAlgebra::MultiVectorData::getComm ( ) const

inlineoverridevirtual

Get the communicator.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 129 of file MultiVectorData.h.

References d_comm.

◆ getCommunicationList()

std::shared_ptr< CommunicationList > AMP::LinearAlgebra::MultiVectorData::getCommunicationList ( ) const

overridevirtual

Get the CommunicationList for this Vector.

Implements AMP::LinearAlgebra::VectorData.

◆ getComponent() [1/2]

std::shared_ptr< const VectorData > AMP::LinearAlgebra::MultiVectorData::getComponent ( size_t i = 0 ) const

overridevirtual

Number of elements in the ith component.

Parameters

[in] i particular data block

Returns: The number of elements in the ith component

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ getComponent() [2/2]

std::shared_ptr< VectorData > AMP::LinearAlgebra::MultiVectorData::getComponent ( size_t i = 0 )

overridevirtual

Number of elements in the ith component.

Parameters

[in] i particular data block

Returns: The number of elements in the ith component

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ getDataID()

uint64_t AMP::LinearAlgebra::MultiVectorData::getDataID ( ) const

overridevirtual

A unique id for the underlying data allocation.

This is a unique id that is associated with the data data allocation. Views of a vector should preserve the id of the original vector. Vectors that are not allocated, or contain multiple vectors (such as Multivector) should return 0. Note: this id is not consistent across multiple processors.

Implements AMP::LinearAlgebra::VectorData.

◆ getGhostAddValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getGhostAddValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

get ghosted values to add to off-proc elements

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will get the ghosted updates this processor has made. All indices are from global 0.

◆ getGhostAddValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::getGhostAddValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

get ghosted values to add to off-proc elements

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get the ghosted updates this processor has made. All indices are from global 0.

Implements AMP::LinearAlgebra::VectorData.

◆ getGhostSize()

size_t AMP::LinearAlgebra::MultiVectorData::getGhostSize ( ) const

overridevirtual

Number of entries "owned" by other cores stored on this core.

Returns: Number of entries "owned" by other cores stored on this core

Implements AMP::LinearAlgebra::VectorData.

◆ getGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

Get ghost values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get any value owned by this core.

◆ getGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::getGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get ghost values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value owned by this core.

Implements AMP::LinearAlgebra::VectorData.

◆ getGlobalSize()

size_t AMP::LinearAlgebra::VectorData::getGlobalSize ( ) const

inlineinherited

Number of total entries in this vector across all cores.

Returns: Number of entries stored across all cores in this

Definition at line 71 of file VectorData.h.

References AMP::LinearAlgebra::VectorData::d_globalSize.

◆ getGlobalUpdateStatus()

UpdateState AMP::LinearAlgebra::VectorData::getGlobalUpdateStatus ( ) const

inherited

Return the current update state of the Vector.

This returns the effective update state of the vector, including any vectors it contains. The effective state is defined as: UNCHANGED - All data and sub vectors are unchanged LOCAL_CHANGED - Local data may be modified, sub vectors must either be UNCHANGED or LOCAL_CHANGED. ADDING - Local and ghost data may be modified through add operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or ADDING SETTING - Local and ghost data may be modified through set operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or SETTING If different subvectors have incompatible states ADDING and SETTING, this function will return MIXED This version returns the global state and requires a collective communication

◆ getID()

uint64_t AMP::LinearAlgebra::VectorData::getID ( ) const

inherited

Get a unique id hash for the vector.

◆ getLocalSize()

size_t AMP::LinearAlgebra::VectorData::getLocalSize ( ) const

inlineinherited

Number of elements "owned" by this core.

Returns: Number of entries stored on this processor

This function returns the number of locally stored values under contiguous indexing.

Definition at line 66 of file VectorData.h.

◆ getLocalSizes()

std::vector< size_t > AMP::LinearAlgebra::MultiVectorData::getLocalSizes ( ) const

overridevirtual

The local sizes on each rank.

Returns: The local sizes on each rank

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ getLocalStartID()

size_t AMP::LinearAlgebra::VectorData::getLocalStartID ( ) const

inlineinherited

get local start id core.

Returns: The first entry "owned" by this core

Definition at line 76 of file VectorData.h.

References AMP::LinearAlgebra::VectorData::d_localStart.

◆ getLocalUpdateStatus()

UpdateState AMP::LinearAlgebra::MultiVectorData::getLocalUpdateStatus ( ) const

overridevirtual

Return the current update state of the Vector.

This returns the effective update state of the vector, including any vectors it contains. The effective state is defined as: UNCHANGED - All data and sub vectors are unchanged LOCAL_CHANGED - Local data may be modified, sub vectors must either be UNCHANGED or LOCAL_CHANGED. ADDING - Local and ghost data may be modified through add operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or ADDING SETTING - Local and ghost data may be modified through set operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or SETTING If different subvectors have incompatible states ADDING and SETTING, this function will return MIXED This version returns the local state only and does not involve communication

Implements AMP::LinearAlgebra::VectorData.

◆ getMemoryLocation()

AMP::Utilities::MemoryType AMP::LinearAlgebra::MultiVectorData::getMemoryLocation ( ) const

overridevirtual

returns the memory location for data

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ getNumberOfComponents()

size_t AMP::LinearAlgebra::MultiVectorData::getNumberOfComponents ( ) const

overridevirtual

Return integer number of data components.

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ getRawData() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getRawData ( TYPE * buf ) const

inherited

Copy data out of this vector.

Parameters

[out] buf Buffer to copy to

The Vector should be pre-allocated to the correct size (getLocalSize())

◆ getRawData() [2/2]

void AMP::LinearAlgebra::MultiVectorData::getRawData	(	void *	buf,
		const typeID &	id
	)		const

overridevirtual

Copy data out of this vector.

Parameters

[out]	buf	Buffer to copy to
[in]	id	typeID of raw data

The Vector should be pre-allocated to the correct size (getLocalSize())

Implements AMP::LinearAlgebra::VectorData.

◆ getRawDataBlock() [1/2]

template<typename RETURN_TYPE >

RETURN_TYPE * AMP::LinearAlgebra::VectorData::getRawDataBlock ( size_t i = 0 )

inherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A contiguous array of type RETURN_TYPE

◆ getRawDataBlock() [2/2]

template<typename RETURN_TYPE >

const RETURN_TYPE * AMP::LinearAlgebra::VectorData::getRawDataBlock ( size_t i = 0 ) const

inherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A const contiguous array of type RETURN_TYPE

◆ getRawDataBlockAsVoid() [1/2]

const void * AMP::LinearAlgebra::MultiVectorData::getRawDataBlockAsVoid ( size_t i ) const

overridevirtual

Return a pointer to a particular block of memory in the vector.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

◆ getRawDataBlockAsVoid() [2/2]

void * AMP::LinearAlgebra::MultiVectorData::getRawDataBlockAsVoid ( size_t i )

overridevirtual

Return a pointer to a particular block of memory in the vector.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

◆ getType()

typeID AMP::LinearAlgebra::MultiVectorData::getType ( size_t block ) const

overridevirtual

Return the typeid of the given block.

Parameters

block The block id to check

Implements AMP::LinearAlgebra::VectorData.

◆ getUpdateStatusPtr()

std::shared_ptr< UpdateState > AMP::LinearAlgebra::MultiVectorData::getUpdateStatusPtr ( ) const

overridevirtual

Return the current update state of this Vector.

This returns the pointer to the update state of the current vector only (not vectors it contains). It should NOT be used by users.

Implements AMP::LinearAlgebra::VectorData.

◆ getValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

get values in the vector by their local offset

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get the owned values for this core. All indices are from 0.

◆ getValuesByLocalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

Get local values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get any value used by this core.

◆ getValuesByLocalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::getValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get local values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value used by this core.

Implements AMP::LinearAlgebra::VectorData.

◆ getVectorData() [1/2]

VectorData * AMP::LinearAlgebra::MultiVectorData::getVectorData ( size_t i )

◆ getVectorData() [2/2]

const VectorData * AMP::LinearAlgebra::MultiVectorData::getVectorData ( size_t i ) const

◆ getVectorDataSize()

size_t AMP::LinearAlgebra::MultiVectorData::getVectorDataSize ( ) const

inline

Definition at line 127 of file MultiVectorData.h.

References d_data.

◆ hasContiguousData()

bool AMP::LinearAlgebra::MultiVectorData::hasContiguousData ( ) const

inlineoverridevirtual

returns whether all data for the vector on a single process is contiguous

Reimplemented from AMP::LinearAlgebra::VectorData.

Definition at line 64 of file MultiVectorData.h.

References numberOfDataBlocks().

◆ hasGhosts()

bool AMP::LinearAlgebra::MultiVectorData::hasGhosts ( ) const

overridevirtual

Check if any entries "owned" by other cores are stored on this core.

Returns: True if any entries "owned" by other cores are stored on this core

Implements AMP::LinearAlgebra::VectorData.

◆ isAnAliasOf()

virtual bool AMP::LinearAlgebra::VectorData::isAnAliasOf ( const VectorData & rhs ) const

virtualinherited

Check if the two VectorData objects are alias of each other.

This function checks if two VectorData objects are alias of each other. Two VectorData objects are alias if their data blocks are the same size and point to the same memory blocks.

Parameters

[in] rhs VectorData to compare

See also: makeConsistent

Reimplemented in AMP::LinearAlgebra::ManagedVectorData.

◆ isBlockType()

template<typename TYPE >

bool AMP::LinearAlgebra::VectorData::isBlockType ( size_t i = 0 ) const

inherited

Check if the data is of the given type.

Returns: true if the ith block of data is of the given type

◆ isType() [1/2]

template<typename TYPE >

bool AMP::LinearAlgebra::VectorData::isType ( ) const

inherited

Check if the data is of the given type.

Returns: true if all data is of the given type

◆ isType() [2/2]

bool AMP::LinearAlgebra::VectorData::isType	(	const typeID &	id,
		size_t	block
	)		const

inlineinherited

Is the data of the given type.

Parameters

id	The typeid
block	The block id to check

◆ makeConsistent() [1/2]

void AMP::LinearAlgebra::MultiVectorData::makeConsistent ( )

overridevirtual

Update shared values on entire communicator.

This version will check the state of the vector and then call the appropriate version of makeConsistent

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ makeConsistent() [2/2]

void AMP::LinearAlgebra::MultiVectorData::makeConsistent ( ScatterType t )

overridevirtual

Update shared values on entire communicator.

Parameters

t	The type of scatter used to compute values

There are two algorithms used by makeConsistent

If t = CONSISTENT_SET, then owned values are sent to processors that share the value. Shared values are overwritten
If t = CONSISTENT_ADD, then shared values are accumulated on the core that owns it and applied as determined, either add or set. Then, the values are broadcast out.

Generally, when adding to a vector, the GATHER_SCATTER should be used to make consistent. When setting entries in a vector the BROADCAST should be used.

Implements AMP::LinearAlgebra::VectorData.

◆ numberOfDataBlocks()

size_t AMP::LinearAlgebra::MultiVectorData::numberOfDataBlocks ( ) const

overridevirtual

Number of blocks of contiguous data in the Vector.

Returns: Number of blocks in the Vector

A vector is not necessarily contiguous in memory. This method returns the number of contiguous blocks in memory used by this vector

Implements AMP::LinearAlgebra::VectorData.

Referenced by hasContiguousData().

◆ partitionGlobalValues()

void AMP::LinearAlgebra::MultiVectorData::partitionGlobalValues	(	const int	num,
		const size_t *	indices,
		const void *	vals,
		const size_t	bytes,
		std::vector< std::vector< size_t > > &	out_indices,
		std::vector< std::vector< std::byte > > &	out_vals,
		std::vector< std::vector< int > > *	remap = `nullptr`
	)		const

protected

A method that will translate an array of global ids relative to the multivector into an array of arrays of global ids relative to the component vectors

Parameters

[in]	num	The number of DOFs that need to be mapped
[in]	indices	The indices of the values relative to the multivector
[in]	vals	Values associated somehow with the indices
[in]	bytes	Size of a value
[out]	out_indices	An array of arrays of mapped indices relative to constituent vectors
[out]	out_vals	The values partitioned according to out_indices
[out]	remap	If not null, this is a list of where in the indices array an entry comes from

◆ partitionLocalValues()

void AMP::LinearAlgebra::MultiVectorData::partitionLocalValues	(	const int	num,
		const size_t *	indices,
		const void *	vals,
		const size_t	bytes,
		std::vector< std::vector< size_t > > &	out_indices,
		std::vector< std::vector< std::byte > > &	out_vals,
		std::vector< std::vector< int > > *	remap = `nullptr`
	)		const

protected

A method that will translate an array of local ids relative to the multivector into an array of arrays of local ids relative to the component vectors

Parameters

[in]	num	The number of DOFs that need to be mapped
[in]	indices	The indices of the values relative to the multivector
[in]	vals	Values associated somehow with the indices
[in]	bytes	Size of a value
[out]	out_indices	An array of arrays of mapped indices relative to constituent vectors
[out]	out_vals	The values partitioned according to out_indices
[out]	remap	If not null, this is a list of where in the indices array an entry comes from

◆ print()

virtual void AMP::LinearAlgebra::VectorData::print	(	std::ostream &	os,
		const std::string &	name = `"A"`,
		const std::string &	prefix = `""`
	)		const

virtualinherited

◆ putRawData() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::putRawData ( const TYPE * buf )

inherited

Copy data into this vector.

Parameters

[in] buf Buffer to copy from

◆ putRawData() [2/2]

void AMP::LinearAlgebra::MultiVectorData::putRawData	(	const void *	buf,
		const typeID &	id
	)

overridevirtual

Copy data into this vector.

Parameters

[in]	buf	Buffer to copy from
[in]	id	typeID of raw data

Implements AMP::LinearAlgebra::VectorData.

◆ receiveDataChanged()

void AMP::LinearAlgebra::MultiVectorData::receiveDataChanged ( )

inlineoverridevirtual

The method called when a data change event occurs.

The method called when a data change event occurs

Implements AMP::LinearAlgebra::DataChangeListener.

Definition at line 135 of file MultiVectorData.h.

References AMP::LinearAlgebra::DataChangeFirer::fireDataChange().

◆ registerChildObjects()

void AMP::LinearAlgebra::MultiVectorData::registerChildObjects ( AMP::IO::RestartManager * manager ) const

overridevirtual

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ registerListener() [1/2]

virtual void AMP::LinearAlgebra::DataChangeFirer::registerListener ( DataChangeListener * listener )

virtualinherited

Register a listener with this DataChangeFirer.

Parameters

[in] listener The listener to be alerted to data change events

Adds a listener to itself.

◆ registerListener() [2/2]

virtual void AMP::LinearAlgebra::DataChangeFirer::registerListener ( std::shared_ptr< DataChangeListener > listener )

virtualinherited

Register a listener with this DataChangeFirer.

Parameters

[in] listener The listener to be alerted to data change events

Adds a listener to itself.

◆ registerWithFirer()

void AMP::LinearAlgebra::DataChangeListener::registerWithFirer ( DataChangeFirer * firer )

privateinherited

Register this DataChangeListener with a DataChangeFirer.

Parameters

firer the data change firer this object will listen for

This method will push firer onto the list. This method is only used by the DataChangeFirer

◆ reset()

virtual void AMP::LinearAlgebra::VectorData::reset ( )

virtualinherited

reset the vector data object

At present this interface is primarily meant for vector data over AMR hierarchies, where the number of AMR levels and vector data has to be reallocated

◆ resetMultiVectorData()

void AMP::LinearAlgebra::MultiVectorData::resetMultiVectorData	(	const AMP::Discretization::DOFManager *	manager,
		const std::vector< VectorData * > &	data
	)

◆ setCommunicationList()

void AMP::LinearAlgebra::MultiVectorData::setCommunicationList ( std::shared_ptr< CommunicationList > comm )

overridevirtual

Set the CommunicationList for this Vector.

Setting the CommunicationList for a Vector may involve reallocating ghost storage.

Implements AMP::LinearAlgebra::VectorData.

◆ setGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set ghost values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

\( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

◆ setGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::setGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Set ghost values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

\( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ setNoGhosts()

void AMP::LinearAlgebra::MultiVectorData::setNoGhosts ( )

overridevirtual

Ensure this vector has no ghosts.

Calls clearBuffer for the communication list and removes any storage for ghosts

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ setUpdateStatus()

void AMP::LinearAlgebra::MultiVectorData::setUpdateStatus ( UpdateState state )

overridevirtual

Sets the current update state of the Vector.

This sets the update status of the vector. This function should only be called by advanced users

Parameters

[in] state State of the vector to set

Implements AMP::LinearAlgebra::VectorData.

◆ setUpdateStatusPtr()

void AMP::LinearAlgebra::MultiVectorData::setUpdateStatusPtr ( std::shared_ptr< UpdateState > rhs )

overridevirtual

Tie the current update state to another.

This sets the pointer to the update state of the current vector only (not vectors it contains). It should NOT be used by users.

Parameters

rhs	Pointer to share update state with

Implements AMP::LinearAlgebra::VectorData.

◆ setValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set owned or shared values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

Since the shared buffer and owned buffer are separate, this function must sort the data by buffer before setting values.

◆ setValuesByLocalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set values in the vector by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

◆ setValuesByLocalID() [2/2]

void AMP::LinearAlgebra::MultiVectorData::setValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Set values in the vector by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ shared_from_this() [1/2]

std::shared_ptr< VectorData > AMP::enable_shared_from_this< VectorData >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const VectorData > AMP::enable_shared_from_this< VectorData >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ sizeOfDataBlock()

size_t AMP::LinearAlgebra::MultiVectorData::sizeOfDataBlock ( size_t i = 0 ) const

overridevirtual

Number of elements in a data block.

Parameters

[in] i particular data block

Returns: The size of a particular block

Implements AMP::LinearAlgebra::VectorData.

◆ sizeofDataBlockType()

size_t AMP::LinearAlgebra::MultiVectorData::sizeofDataBlockType ( size_t i ) const

overridevirtual

Return the result of sizeof(TYPE) for the given data block.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

◆ swapData()

void AMP::LinearAlgebra::MultiVectorData::swapData ( VectorData & rhs )

overridevirtual

Swap the data with another VectorData object.

Parameters

rhs	The VectorData to swap with

Implements AMP::LinearAlgebra::VectorData.

◆ VectorDataName()

std::string AMP::LinearAlgebra::MultiVectorData::VectorDataName ( ) const

inlineoverridevirtual

Get the type name.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 38 of file MultiVectorData.h.

◆ writeRestart()

void AMP::LinearAlgebra::MultiVectorData::writeRestart ( int64_t fid ) const

overridevirtual

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented from AMP::LinearAlgebra::VectorData.

Member Data Documentation

◆ d_comm

AMP::AMP_MPI AMP::LinearAlgebra::MultiVectorData::d_comm

protected

Definition at line 217 of file MultiVectorData.h.

Referenced by getComm().

◆ d_data

std::vector<VectorData *> AMP::LinearAlgebra::MultiVectorData::d_data

protected

Definition at line 218 of file MultiVectorData.h.

Referenced by getVectorDataSize().

◆ d_dofMap

AMP::Discretization::multiDOFHelper AMP::LinearAlgebra::MultiVectorData::d_dofMap

protected

Definition at line 219 of file MultiVectorData.h.

◆ d_firers

std::vector<DataChangeFirer *> AMP::LinearAlgebra::DataChangeListener::d_firers

privateinherited

Definition at line 80 of file DataChangeListener.h.

◆ d_globalSize

size_t AMP::LinearAlgebra::VectorData::d_globalSize = 0

protectedinherited

Number of local values.

Definition at line 675 of file VectorData.h.

Referenced by AMP::LinearAlgebra::VectorData::getGlobalSize().

◆ d_listeners

std::vector<DataChangeListener *> AMP::LinearAlgebra::DataChangeFirer::d_listeners

privateinherited

Definition at line 89 of file DataChangeFirer.h.

◆ d_localSize

size_t AMP::LinearAlgebra::VectorData::d_localSize = 0

protectedinherited

Definition at line 674 of file VectorData.h.

Referenced by AMP::LinearAlgebra::GhostDataHelper< T, AMP::HostAllocator< void > >::getGhostValuesByGlobalID(), AMP::LinearAlgebra::EpetraVectorData::sizeOfDataBlock(), and AMP::LinearAlgebra::TpetraVectorData< ST, LO, GO, NT >::sizeOfDataBlock().

◆ d_localStart

size_t AMP::LinearAlgebra::VectorData::d_localStart = 0

protectedinherited

Number of global values.

Definition at line 676 of file VectorData.h.

Referenced by AMP::LinearAlgebra::VectorData::getLocalStartID().

◆ d_UpdateState

std::shared_ptr<UpdateState> AMP::LinearAlgebra::MultiVectorData::d_UpdateState

protected

Definition at line 220 of file MultiVectorData.h.

◆ weak_ptr_

std::weak_ptr<VectorData > AMP::enable_shared_from_this< VectorData >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/vectors/data/MultiVectorData.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~MultiVectorData()

◆ MultiVectorData() [1/3]

◆ MultiVectorData() [2/3]

◆ MultiVectorData() [3/3]

Member Function Documentation

◆ addGhostValuesByGlobalID() [1/2]

◆ addGhostValuesByGlobalID() [2/2]

◆ addValuesByGlobalID()

◆ addValuesByLocalID() [1/2]

◆ addValuesByLocalID() [2/2]

◆ assemble()

◆ begin() [1/2]

◆ begin() [2/2]

◆ cloneData()

◆ constBegin()

◆ constEnd()

◆ containsGlobalElement()

◆ copyGhostValues()

◆ dataChanged()

◆ deregisterFromFirer()

◆ deregisterListener()

◆ dumpGhostedData()

◆ dumpOwnedData()

◆ end() [1/2]

◆ end() [2/2]

◆ fillGhosts()

◆ fireDataChange()

◆ getAllGhostValues() [1/2]

◆ getAllGhostValues() [2/2]

◆ getComm()

◆ getCommunicationList()

◆ getComponent() [1/2]

◆ getComponent() [2/2]

◆ getDataID()

◆ getGhostAddValuesByGlobalID() [1/2]

◆ getGhostAddValuesByGlobalID() [2/2]

◆ getGhostSize()

◆ getGhostValuesByGlobalID() [1/2]

◆ getGhostValuesByGlobalID() [2/2]

◆ getGlobalSize()

◆ getGlobalUpdateStatus()

◆ getID()

◆ getLocalSize()

◆ getLocalSizes()

◆ getLocalStartID()

◆ getLocalUpdateStatus()

◆ getMemoryLocation()

◆ getNumberOfComponents()

◆ getRawData() [1/2]

◆ getRawData() [2/2]

◆ getRawDataBlock() [1/2]

◆ getRawDataBlock() [2/2]

◆ getRawDataBlockAsVoid() [1/2]

◆ getRawDataBlockAsVoid() [2/2]

◆ getType()

◆ getUpdateStatusPtr()

◆ getValuesByGlobalID()

◆ getValuesByLocalID() [1/2]

◆ getValuesByLocalID() [2/2]

◆ getVectorData() [1/2]

◆ getVectorData() [2/2]

◆ getVectorDataSize()

◆ hasContiguousData()

◆ hasGhosts()

◆ isAnAliasOf()

◆ isBlockType()

◆ isType() [1/2]

◆ isType() [2/2]

◆ makeConsistent() [1/2]

◆ makeConsistent() [2/2]

◆ numberOfDataBlocks()

◆ partitionGlobalValues()

◆ partitionLocalValues()
