#include <DOF_Manager.h>

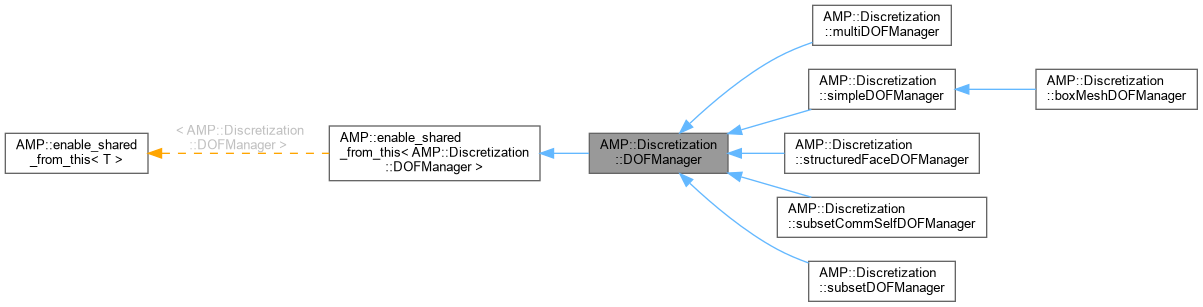

Inheritance diagram for AMP::Discretization::DOFManager:

[legend]

Public Member Functions
virtual size_t	appendDOFs (const AMP::Mesh::MeshElementID &id, size_t *dofs, size_t index, size_t capacity) const

virtual size_t	beginDOF () const
	The first D.O.F. on this core.

virtual std::string	className () const
	Return a string with the mesh class name.

	DOFManager (int64_t fid, AMP::IO::RestartManager *manager)
	Write restart data to file.

	DOFManager (size_t N_local, const AMP_MPI &comm, std::vector< size_t > remoteDOFs={})
	Basic constructor for DOFManager.

virtual size_t	endDOF () const
	One past the last D.O.F. on this core.

const AMP_MPI &	getComm () const
	Get the comm for the DOFManger.

void	getDOFs (const AMP::Mesh::MeshElementID &id, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

void	getDOFs (const std::vector< AMP::Mesh::MeshElementID > &ids, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

void	getDOFs (int N_ids, const AMP::Mesh::MeshElementID *ids, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

virtual int	getDOFsPerPoint () const
	Get the number of DOFs per element.

virtual std::unique_ptr< AMP::Mesh::MeshElement >	getElement (size_t dof) const
	Get the mesh element for a DOF.

virtual AMP::Mesh::MeshElementID	getElementID (size_t dof) const
	Get the mesh element for a DOF.

uint64_t	getID () const
	Get a unique id hash.

virtual AMP::Mesh::MeshIterator	getIterator () const
	Get an entry over the mesh elements associated with the DOFs.

virtual std::vector< size_t >	getLocalSizes () const
	The local number of D.O.F on each rank.

virtual std::shared_ptr< const AMP::Mesh::Mesh >	getMesh () const
	Get the underlying mesh.

virtual std::vector< size_t >	getRemoteDOFs () const
	Get the remote DOFs for a vector.

std::vector< size_t >	getRowDOFs (const AMP::Mesh::MeshElementID &id) const
	Get the row DOFs given a mesh element.

virtual size_t	getRowDOFs (const AMP::Mesh::MeshElementID &id, size_t *dofs, size_t N_alloc, bool sort=true) const
	Get the row DOFs given a mesh element.

virtual size_t	numGlobalDOF () const
	The global number of D.O.F.

virtual size_t	numLocalDOF () const
	The local number of D.O.F.

bool	operator!= (const DOFManager &rhs) const
	Inverse of ==.

virtual bool	operator== (const DOFManager &rhs) const
	Compares two DOFManager for equality.

virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register any child objects.

virtual void	replaceRemoteDOFs (std::vector< size_t > &newRemote)

std::shared_ptr< AMP::Discretization::DOFManager >	shared_from_this ()

std::shared_ptr< const AMP::Discretization::DOFManager >	shared_from_this () const

virtual std::shared_ptr< DOFManager >	subset (const AMP::Mesh::MeshIterator &iterator, const AMP_MPI &comm)
	Subset the DOF Manager for a mesh element iterator.

virtual std::shared_ptr< DOFManager >	subset (const AMP_MPI &comm)
	Subset the DOF Manager for a AMP_MPI communicator.

virtual std::shared_ptr< DOFManager >	subset (const std::shared_ptr< const AMP::Mesh::Mesh > mesh, bool useMeshComm=true)
	Subset the DOF Manager for a mesh.

virtual void	writeRestart (int64_t fid) const
	Write restart data to file.

virtual	~DOFManager ()
	Deconstructor.

Protected Member Functions
	DOFManager ()
	Empty constructor for a DOF manager object.

Protected Attributes
size_t	d_begin = 0
	The begining DOF, ending DOF and number of local DOFs for this processor.

AMP_MPI	d_comm
	The comm for this DOFManager.

size_t	d_end = 0

size_t	d_global = 0

std::vector< size_t >	d_localSize

std::vector< size_t >	d_remoteDOFs
	The remote dofs (if cached)

std::shared_ptr< DOFManagerParameters >	params
	The DOF manager parameters.

std::weak_ptr< AMP::Discretization::DOFManager >	weak_ptr_

Detailed Description

Definition at line 27 of file DOF_Manager.h.

Constructor & Destructor Documentation

◆ DOFManager() [1/3]

AMP::Discretization::DOFManager::DOFManager	(	size_t	N_local,
		const AMP_MPI &	comm,
		std::vector< size_t >	remoteDOFs = `{}`
	)

Basic constructor for DOFManager.

This will create a very simple DOFManager with the given number of DOFs on each processor. It will not contain info to relate that to a mesh. A derived implementation should be used for more advanced features. For example see simpleDOFManager and multiDOFManager.

Parameters

[in]	N_local	The local number of DOFs
[in]	comm	The comm over which the DOFManager exists
[in]	remoteDOFs	Optional list of remote DOFs

◆ ~DOFManager()

virtual AMP::Discretization::DOFManager::~DOFManager ( )

virtual

Deconstructor.

◆ DOFManager() [2/3]

AMP::Discretization::DOFManager::DOFManager	(	int64_t	fid,
		AMP::IO::RestartManager *	manager
	)

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to read
manager	Restart manager

◆ DOFManager() [3/3]

AMP::Discretization::DOFManager::DOFManager ( )

inlineprotected

Empty constructor for a DOF manager object.

Definition at line 254 of file DOF_Manager.h.

Member Function Documentation

◆ appendDOFs()

virtual size_t AMP::Discretization::DOFManager::appendDOFs	(	const AMP::Mesh::MeshElementID &	id,
		size_t *	dofs,
		size_t	index,
		size_t	capacity
	)		const

virtual

Reimplemented in AMP::Discretization::boxMeshDOFManager, AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ beginDOF()

virtual size_t AMP::Discretization::DOFManager::beginDOF ( ) const

virtual

The first D.O.F. on this core.

Returns: The first D.O.F. on this core

◆ className()

virtual std::string AMP::Discretization::DOFManager::className ( ) const

virtual

Return a string with the mesh class name.

Reimplemented in AMP::Discretization::simpleDOFManager.

◆ endDOF()

virtual size_t AMP::Discretization::DOFManager::endDOF ( ) const

virtual

One past the last D.O.F. on this core.

Returns: One past the last D.O.F. on this core

◆ getComm()

const AMP_MPI & AMP::Discretization::DOFManager::getComm ( ) const

inline

Get the comm for the DOFManger.

Definition at line 168 of file DOF_Manager.h.

References d_comm.

◆ getDOFs() [1/3]

void AMP::Discretization::DOFManager::getDOFs	(	const AMP::Mesh::MeshElementID &	id,
		std::vector< size_t > &	dofs
	)		const

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	id	The element ID to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s

◆ getDOFs() [2/3]

void AMP::Discretization::DOFManager::getDOFs	(	const std::vector< AMP::Mesh::MeshElementID > &	ids,
		std::vector< size_t > &	dofs
	)		const

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	ids	The element IDs to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s on the nodes

◆ getDOFs() [3/3]

void AMP::Discretization::DOFManager::getDOFs	(	int	N_ids,
		const AMP::Mesh::MeshElementID *	ids,
		std::vector< size_t > &	dofs
	)		const

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	N_ids	The number of element ids
[in]	ids	The element IDs to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s on the nodes

◆ getDOFsPerPoint()

virtual int AMP::Discretization::DOFManager::getDOFsPerPoint ( ) const

virtual

Get the number of DOFs per element.

This will return the number of DOFs per mesh element. If some DOFs are not associated with a mesh element or if all elements do not contain the same number of DOFs than this routine will return -1.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getElement()

virtual std::unique_ptr< AMP::Mesh::MeshElement > AMP::Discretization::DOFManager::getElement ( size_t dof ) const

virtual

Get the mesh element for a DOF.

This will return the mesh element associated with a given DOF.

Parameters

[in] dof The entry in the vector associated with DOF

Returns: The element for the given DOF.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getElementID()

virtual AMP::Mesh::MeshElementID AMP::Discretization::DOFManager::getElementID ( size_t dof ) const

virtual

Get the mesh element for a DOF.

This will return the mesh element associated with a given DOF.

Parameters

[in] dof The entry in the vector associated with DOF

Returns: The element for the given DOF.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getID()

uint64_t AMP::Discretization::DOFManager::getID ( ) const

Get a unique id hash.

◆ getIterator()

virtual AMP::Mesh::MeshIterator AMP::Discretization::DOFManager::getIterator ( ) const

virtual

Get an entry over the mesh elements associated with the DOFs.

This will return an iterator over the mesh elements associated with the DOFs. Each element in the iterator will have 1 or more DOFs that are associated with that element. For example, a nodal vector with 3 DOFs stored at each node would return an iterator over all the nodes with no element repeated. Note that this iterator does not contain ghost elements because there would be repeated elements between the different processors. Calling this iterator ensures that each owned element is called once regardless of the number of DOFs on that element and the number of processors that share a ghost copy.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getLocalSizes()

virtual std::vector< size_t > AMP::Discretization::DOFManager::getLocalSizes ( ) const

virtual

The local number of D.O.F on each rank.

Returns: The local number of D.O.F on each rank

Reimplemented in AMP::Discretization::multiDOFManager, and AMP::Discretization::subsetCommSelfDOFManager.

◆ getMesh()

virtual std::shared_ptr< const AMP::Mesh::Mesh > AMP::Discretization::DOFManager::getMesh ( ) const

virtual

Get the underlying mesh.

This will return the mesh(es) that underly the DOF manager (if they exist)

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getRemoteDOFs()

virtual std::vector< size_t > AMP::Discretization::DOFManager::getRemoteDOFs ( ) const

virtual

Get the remote DOFs for a vector.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, and AMP::Discretization::subsetDOFManager.

◆ getRowDOFs() [1/2]

std::vector< size_t > AMP::Discretization::DOFManager::getRowDOFs ( const AMP::Mesh::MeshElementID & id ) const

Get the row DOFs given a mesh element.

◆ getRowDOFs() [2/2]

virtual size_t AMP::Discretization::DOFManager::getRowDOFs	(	const AMP::Mesh::MeshElementID &	id,
		size_t *	dofs,
		size_t	N_alloc,
		bool	sort = `true`
	)		const

virtual

Get the row DOFs given a mesh element.

◆ numGlobalDOF()

virtual size_t AMP::Discretization::DOFManager::numGlobalDOF ( ) const

virtual

The global number of D.O.F.

Returns: The global number of D.O.F

◆ numLocalDOF()

virtual size_t AMP::Discretization::DOFManager::numLocalDOF ( ) const

virtual

The local number of D.O.F.

Returns: The local number of D.O.F

◆ operator!=()

bool AMP::Discretization::DOFManager::operator!= ( const DOFManager & rhs ) const

Inverse of ==.

This function performs an equality check and negates it. Hence, it is not virtual

Parameters

rhs	DOFManager to compare

◆ operator==()

virtual bool AMP::Discretization::DOFManager::operator== ( const DOFManager & rhs ) const

virtual

Compares two DOFManager for equality.

This operation compares two DOF managers to see if they are equivalent

Parameters

rhs	DOFManager to compare

◆ registerChildObjects()

virtual void AMP::Discretization::DOFManager::registerChildObjects ( AMP::IO::RestartManager * manager ) const

virtual

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented in AMP::Discretization::simpleDOFManager.

◆ replaceRemoteDOFs()

virtual void AMP::Discretization::DOFManager::replaceRemoteDOFs ( std::vector< size_t > & newRemote )

inlinevirtual

Definition at line 174 of file DOF_Manager.h.

References d_remoteDOFs.

◆ shared_from_this() [1/2]

std::shared_ptr< AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ subset() [1/3]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset	(	const AMP::Mesh::MeshIterator &	iterator,
		const AMP_MPI &	comm
	)

virtual

Subset the DOF Manager for a mesh element iterator.

This will subset a DOF manager for a given mesh element iterator. The resulting DOFManager will exist on the privided comm.

Parameters

[in]	iterator	The mesh iterator for the subset
[in]	comm	The desired comm

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, AMP::Discretization::subsetDOFManager, and AMP::Discretization::multiDOFManager.

◆ subset() [2/3]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset ( const AMP_MPI & comm )

virtual

Subset the DOF Manager for a AMP_MPI communicator.

This will subset a DOF manager for a given communicator.

Parameters

[in] comm The communicator to use to subset

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, AMP::Discretization::subsetDOFManager, and AMP::Discretization::multiDOFManager.

◆ subset() [3/3]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset	(	const std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		bool	useMeshComm = `true`
	)

virtual

Subset the DOF Manager for a mesh.

This will subset a DOF manager for a particular mesh. The resulting DOFManager can exist on either the comm of the parent DOF manager, or the comm of the mesh (default).

Parameters

[in]	mesh	The mesh to use to subset
[in]	useMeshComm	Do we want to use the mesh comm for the new DOFManager. Note: if this is true, any processors that do not contain the mesh will return NULL.

Reimplemented in AMP::Discretization::multiDOFManager, AMP::Discretization::simpleDOFManager, AMP::Discretization::structuredFaceDOFManager, AMP::Discretization::subsetCommSelfDOFManager, AMP::Discretization::subsetDOFManager, AMP::Discretization::multiDOFManager, and AMP::Discretization::simpleDOFManager.

◆ writeRestart()

virtual void AMP::Discretization::DOFManager::writeRestart ( int64_t fid ) const

virtual

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::Discretization::simpleDOFManager.

Member Data Documentation

◆ d_begin

size_t AMP::Discretization::DOFManager::d_begin = 0

protected

The begining DOF, ending DOF and number of local DOFs for this processor.

Definition at line 260 of file DOF_Manager.h.

Referenced by AMP::Discretization::subsetCommSelfDOFManager::getLocalSizes().

◆ d_comm

AMP_MPI AMP::Discretization::DOFManager::d_comm

protected

The comm for this DOFManager.

Definition at line 267 of file DOF_Manager.h.

Referenced by getComm().

◆ d_end

size_t AMP::Discretization::DOFManager::d_end = 0

protected

Definition at line 260 of file DOF_Manager.h.

Referenced by AMP::Discretization::subsetCommSelfDOFManager::getLocalSizes().

◆ d_global

size_t AMP::Discretization::DOFManager::d_global = 0

protected

Definition at line 260 of file DOF_Manager.h.

◆ d_localSize

std::vector<size_t> AMP::Discretization::DOFManager::d_localSize

mutableprotected

Definition at line 261 of file DOF_Manager.h.

◆ d_remoteDOFs

std::vector<size_t> AMP::Discretization::DOFManager::d_remoteDOFs

protected

The remote dofs (if cached)

Definition at line 264 of file DOF_Manager.h.

Referenced by replaceRemoteDOFs().

◆ params

std::shared_ptr<DOFManagerParameters> AMP::Discretization::DOFManager::params

protected

The DOF manager parameters.

Definition at line 257 of file DOF_Manager.h.

◆ weak_ptr_

std::weak_ptr<AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/discretization/DOF_Manager.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DOFManager() [1/3]

◆ ~DOFManager()

◆ DOFManager() [2/3]

◆ DOFManager() [3/3]

Member Function Documentation

◆ appendDOFs()

◆ beginDOF()

◆ className()

◆ endDOF()

◆ getComm()

◆ getDOFs() [1/3]

◆ getDOFs() [2/3]

◆ getDOFs() [3/3]

◆ getDOFsPerPoint()

◆ getElement()

◆ getElementID()

◆ getID()

◆ getIterator()

◆ getLocalSizes()

◆ getMesh()

◆ getRemoteDOFs()

◆ getRowDOFs() [1/2]

◆ getRowDOFs() [2/2]

◆ numGlobalDOF()

◆ numLocalDOF()

◆ operator!=()

◆ operator==()

◆ registerChildObjects()

◆ replaceRemoteDOFs()

◆ shared_from_this() [1/2]

◆ shared_from_this() [2/2]

◆ subset() [1/3]

◆ subset() [2/3]

◆ subset() [3/3]

◆ writeRestart()

Member Data Documentation

◆ d_begin

◆ d_comm

◆ d_end

◆ d_global

◆ d_localSize

◆ d_remoteDOFs

◆ params

◆ weak_ptr_
