A derived class to create a simple DOF_Manager. More...

#include <simpleDOF_Manager.h>

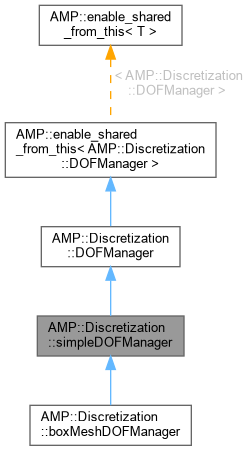

Inheritance diagram for AMP::Discretization::simpleDOFManager:

[legend]

Public Member Functions
size_t	appendDOFs (const AMP::Mesh::MeshElementID &id, size_t *dofs, size_t index, size_t capacity) const override

virtual size_t	beginDOF () const
	The first D.O.F. on this core.

std::string	className () const override
	Return a string with the mesh class name.

virtual size_t	endDOF () const
	One past the last D.O.F. on this core.

const AMP_MPI &	getComm () const
	Get the comm for the DOFManger.

void	getDOFs (const AMP::Mesh::MeshElementID &id, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

void	getDOFs (const std::vector< AMP::Mesh::MeshElementID > &ids, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

void	getDOFs (int N_ids, const AMP::Mesh::MeshElementID *ids, std::vector< size_t > &dofs) const
	Get the entry indices of DOFs given a mesh element ID.

int	getDOFsPerPoint () const override
	Get the number of DOFs per element.

std::unique_ptr< AMP::Mesh::MeshElement >	getElement (size_t dof) const override
	Get the mesh element for a DOF.

AMP::Mesh::MeshElementID	getElementID (size_t dof) const override
	Get the mesh element ID for a DOF.

uint64_t	getID () const
	Get a unique id hash.

AMP::Mesh::MeshIterator	getIterator () const override
	Get an entry over the mesh elements associated with the DOFs.

virtual std::vector< size_t >	getLocalSizes () const
	The local number of D.O.F on each rank.

std::shared_ptr< const AMP::Mesh::Mesh >	getMesh () const override
	Get the underlying mesh.

std::vector< size_t >	getRemoteDOFs () const override
	Get the remote DOFs for a vector.

std::vector< size_t >	getRowDOFs (const AMP::Mesh::MeshElementID &id) const
	Get the row DOFs given a mesh element.

virtual size_t	getRowDOFs (const AMP::Mesh::MeshElementID &id, size_t *dofs, size_t N_alloc, bool sort=true) const
	Get the row DOFs given a mesh element.

size_t	getRowDOFs (const AMP::Mesh::MeshElementID &id, size_t *dofs, size_t N_alloc, bool sort=true) const override
	Get the row DOFs given a mesh element.

virtual size_t	numGlobalDOF () const
	The global number of D.O.F.

virtual size_t	numLocalDOF () const
	The local number of D.O.F.

bool	operator!= (const DOFManager &rhs) const
	Inverse of ==.

virtual bool	operator== (const DOFManager &rhs) const
	Compares two DOFManager for equality.

void	registerChildObjects (AMP::IO::RestartManager *manager) const override
	Register any child objects.

virtual void	replaceRemoteDOFs (std::vector< size_t > &newRemote)

std::shared_ptr< AMP::Discretization::DOFManager >	shared_from_this ()

std::shared_ptr< const AMP::Discretization::DOFManager >	shared_from_this () const

	simpleDOFManager (int64_t, AMP::IO::RestartManager *)

	simpleDOFManager (std::shared_ptr< const AMP::Mesh::Mesh > mesh, const AMP::Mesh::MeshIterator &local, const AMP::Mesh::MeshIterator &ghost, AMP::Mesh::GeomType type, int DOFsPerElement)
	Create a new DOF manager object.

virtual std::shared_ptr< DOFManager >	subset (const AMP::Mesh::MeshIterator &iterator, const AMP_MPI &comm)
	Subset the DOF Manager for a mesh element iterator.

virtual std::shared_ptr< DOFManager >	subset (const AMP_MPI &comm)
	Subset the DOF Manager for a AMP_MPI communicator.

virtual std::shared_ptr< DOFManager >	subset (const std::shared_ptr< const AMP::Mesh::Mesh > mesh, bool useMeshComm=true)
	Subset the DOF Manager for a mesh.

std::shared_ptr< DOFManager >	subset (const std::shared_ptr< const AMP::Mesh::Mesh > mesh, bool useMeshComm=true) override
	Subset the DOF Manager for a mesh.

void	writeRestart (int64_t) const override
	Write restart data to file.

virtual	~simpleDOFManager ()
	Destructor.

Static Public Member Functions
static std::shared_ptr< DOFManager >	create (const AMP::Mesh::MeshIterator &it, int DOFsPerElement)
	Create a new DOF manager object.

static std::shared_ptr< DOFManager >	create (std::shared_ptr< const AMP::Mesh::Mesh > mesh, AMP::Mesh::GeomType type, int gcw, int DOFsPerElement, bool split=true)
	Create a new DOF manager object.

static std::shared_ptr< DOFManager >	create (std::shared_ptr< const AMP::Mesh::Mesh > mesh, const AMP::Mesh::MeshIterator &ghost, const AMP::Mesh::MeshIterator &local, int DOFsPerElement)
	Create a new DOF manager object.

Protected Member Functions
std::vector< size_t >	getRemoteDOF (const std::vector< AMP::Mesh::MeshElementID > &ids) const

void	initialize ()

	simpleDOFManager ()=delete

Protected Attributes
std::vector< AMP::Mesh::MeshID >	d_baseMeshIDs

size_t	d_begin = 0
	The begining DOF, ending DOF and number of local DOFs for this processor.

AMP_MPI	d_comm
	The comm for this DOFManager.

uint8_t	d_DOFsPerElement = 0

size_t	d_end = 0

AMP::Mesh::MeshIterator	d_ghostIterator

size_t	d_global = 0

bool	d_isBaseMesh = false

std::vector< AMP::Mesh::MeshElementID >	d_local_id

AMP::Mesh::MeshIterator	d_localIterator

std::vector< size_t >	d_localSize

std::shared_ptr< const AMP::Mesh::Mesh >	d_mesh

AMP::Mesh::MeshID	d_meshID

std::vector< size_t >	d_remote_dof

std::vector< AMP::Mesh::MeshElementID >	d_remote_id

std::vector< size_t >	d_remoteDOFs
	The remote dofs (if cached)

AMP::Mesh::GeomType	d_type = AMP::Mesh::GeomType::Nullity

std::shared_ptr< DOFManagerParameters >	params
	The DOF manager parameters.

std::weak_ptr< AMP::Discretization::DOFManager >	weak_ptr_

Detailed Description

A derived class to create a simple DOF_Manager.

This derived class implements a concrete DOF_Manager for creating Vectors over a mesh on a particular mesh entity. For example it can create a NodalVector over the entire Mesh. Note: this class will be replaced by a more complete Discretization interface.

Definition at line 21 of file simpleDOF_Manager.h.

Constructor & Destructor Documentation

◆ simpleDOFManager() [1/3]

AMP::Discretization::simpleDOFManager::simpleDOFManager	(	std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		const AMP::Mesh::MeshIterator &	local,
		const AMP::Mesh::MeshIterator &	ghost,
		AMP::Mesh::GeomType	type,
		int	DOFsPerElement
	)

Create a new DOF manager object.

This is the standard constructor for creating a new DOF manager object.

Parameters

mesh	Mesh over which we want to construct the DOF map
local	Local iterator
ghost	Ghost iterator
type	The geometric entity type for the DOF map
DOFsPerElement	The desired number of DOFs per element

◆ ~simpleDOFManager()

virtual AMP::Discretization::simpleDOFManager::~simpleDOFManager ( )

virtual

Destructor.

◆ simpleDOFManager() [2/3]

AMP::Discretization::simpleDOFManager::simpleDOFManager	(	int64_t	,
		AMP::IO::RestartManager *
	)

◆ simpleDOFManager() [3/3]

AMP::Discretization::simpleDOFManager::simpleDOFManager ( )

protecteddelete

Member Function Documentation

◆ appendDOFs()

size_t AMP::Discretization::simpleDOFManager::appendDOFs	(	const AMP::Mesh::MeshElementID &	id,
		size_t *	dofs,
		size_t	index,
		size_t	capacity
	)		const

overridevirtual

Reimplemented from AMP::Discretization::DOFManager.

◆ beginDOF()

virtual size_t AMP::Discretization::DOFManager::beginDOF ( ) const

virtualinherited

The first D.O.F. on this core.

Returns: The first D.O.F. on this core

◆ className()

std::string AMP::Discretization::simpleDOFManager::className ( ) const

inlineoverridevirtual

Return a string with the mesh class name.

Reimplemented from AMP::Discretization::DOFManager.

Definition at line 89 of file simpleDOF_Manager.h.

◆ create() [1/3]

static std::shared_ptr< DOFManager > AMP::Discretization::simpleDOFManager::create	(	const AMP::Mesh::MeshIterator &	it,
		int	DOFsPerElement
	)

static

Create a new DOF manager object.

This is will create a new simpleDOFManager from a mesh iterator on the local processor only (no remote DOFs).

Parameters

it	The iterator over the elements (no ghost cells)
DOFsPerElement	The desired number of DOFs pere element

◆ create() [2/3]

static std::shared_ptr< DOFManager > AMP::Discretization::simpleDOFManager::create	(	std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		AMP::Mesh::GeomType	type,
		int	gcw,
		int	DOFsPerElement,
		bool	split = `true`
	)

static

Create a new DOF manager object.

This is the standard constructor for creating a new DOF manager object.

Parameters

mesh	Mesh over which we want to construct the DOF map
type	The geometric entity type for the DOF map
gcw	The desired ghost width
DOFsPerElement	The desired number of DOFs per element
split	Do we want to split the DOFManager by the meshes returning a multiDOFManager

◆ create() [3/3]

static std::shared_ptr< DOFManager > AMP::Discretization::simpleDOFManager::create	(	std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		const AMP::Mesh::MeshIterator &	ghost,
		const AMP::Mesh::MeshIterator &	local,
		int	DOFsPerElement
	)

static

Create a new DOF manager object.

This is will create a new simpleDOFManager from a mesh iterator

Parameters

mesh	Mesh over which the iterators are defined
ghost	Ghost iterator
local	Local iterator
DOFsPerElement	The desired number of DOFs per element

◆ endDOF()

virtual size_t AMP::Discretization::DOFManager::endDOF ( ) const

virtualinherited

One past the last D.O.F. on this core.

Returns: One past the last D.O.F. on this core

◆ getComm()

const AMP_MPI & AMP::Discretization::DOFManager::getComm ( ) const

inlineinherited

Get the comm for the DOFManger.

Definition at line 168 of file DOF_Manager.h.

References AMP::Discretization::DOFManager::d_comm.

◆ getDOFs() [1/3]

void AMP::Discretization::DOFManager::getDOFs	(	const AMP::Mesh::MeshElementID &	id,
		std::vector< size_t > &	dofs
	)		const

inherited

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	id	The element ID to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s

◆ getDOFs() [2/3]

void AMP::Discretization::DOFManager::getDOFs	(	const std::vector< AMP::Mesh::MeshElementID > &	ids,
		std::vector< size_t > &	dofs
	)		const

inherited

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	ids	The element IDs to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s on the nodes

◆ getDOFs() [3/3]

void AMP::Discretization::DOFManager::getDOFs	(	int	N_ids,
		const AMP::Mesh::MeshElementID *	ids,
		std::vector< size_t > &	dofs
	)		const

inherited

Get the entry indices of DOFs given a mesh element ID.

This will return a vector of pointers into a Vector that are associated with which.

Parameters

[in]	N_ids	The number of element ids
[in]	ids	The element IDs to collect nodal objects for. Note: the mesh element may be any type (include a vertex).
[out]	dofs	The entries in the vector associated with D.O.F.s on the nodes

◆ getDOFsPerPoint()

int AMP::Discretization::simpleDOFManager::getDOFsPerPoint ( ) const

overridevirtual

Get the number of DOFs per element.

This will return the number of DOFs per mesh element. If some DOFs are not associated with a mesh element or if all elements do not contain the same number of DOFs than this routine will return -1.

Reimplemented from AMP::Discretization::DOFManager.

◆ getElement()

std::unique_ptr< AMP::Mesh::MeshElement > AMP::Discretization::simpleDOFManager::getElement ( size_t dof ) const

overridevirtual

Get the mesh element for a DOF.

This will return the mesh element associated with a given DOF.

Parameters

[in] dof The entry in the vector associated with DOF

Returns: The element for the given DOF.

Reimplemented from AMP::Discretization::DOFManager.

◆ getElementID()

AMP::Mesh::MeshElementID AMP::Discretization::simpleDOFManager::getElementID ( size_t dof ) const

overridevirtual

Get the mesh element ID for a DOF.

This will return the mesh element id associated with a given DOF.

Parameters

[in] dof The entry in the vector associated with DOF

Returns: The element id for the given DOF.

Reimplemented from AMP::Discretization::DOFManager.

◆ getID()

uint64_t AMP::Discretization::DOFManager::getID ( ) const

inherited

Get a unique id hash.

◆ getIterator()

AMP::Mesh::MeshIterator AMP::Discretization::simpleDOFManager::getIterator ( ) const

overridevirtual

Get an entry over the mesh elements associated with the DOFs.

This will return an iterator over the mesh elements associated with the DOFs. Each element in the iterator will have 1 or more DOFs that are associated with that element. For eaxample, a NodalVectorDOF would have 3 DOFs stored at each node, and would return an iterator over all the nodes.

Reimplemented from AMP::Discretization::DOFManager.

◆ getLocalSizes()

virtual std::vector< size_t > AMP::Discretization::DOFManager::getLocalSizes ( ) const

virtualinherited

The local number of D.O.F on each rank.

Returns: The local number of D.O.F on each rank

Reimplemented in AMP::Discretization::multiDOFManager, and AMP::Discretization::subsetCommSelfDOFManager.

◆ getMesh()

std::shared_ptr< const AMP::Mesh::Mesh > AMP::Discretization::simpleDOFManager::getMesh ( ) const

overridevirtual

Get the underlying mesh.

This will return the mesh(es) that underly the DOF manager (if they exist)

Reimplemented from AMP::Discretization::DOFManager.

◆ getRemoteDOF()

std::vector< size_t > AMP::Discretization::simpleDOFManager::getRemoteDOF ( const std::vector< AMP::Mesh::MeshElementID > & ids ) const

protected

◆ getRemoteDOFs()

std::vector< size_t > AMP::Discretization::simpleDOFManager::getRemoteDOFs ( ) const

overridevirtual

Get the remote DOFs for a vector.

Reimplemented from AMP::Discretization::DOFManager.

◆ getRowDOFs() [1/3]

std::vector< size_t > AMP::Discretization::DOFManager::getRowDOFs ( const AMP::Mesh::MeshElementID & id ) const

Get the row DOFs given a mesh element.

◆ getRowDOFs() [2/3]

virtual size_t AMP::Discretization::DOFManager::getRowDOFs	(	const AMP::Mesh::MeshElementID &	id,
		size_t *	dofs,
		size_t	N_alloc,
		bool	sort = `true`
	)		const

virtual

Get the row DOFs given a mesh element.

Reimplemented from AMP::Discretization::DOFManager.

◆ getRowDOFs() [3/3]

size_t AMP::Discretization::simpleDOFManager::getRowDOFs	(	const AMP::Mesh::MeshElementID &	id,
		size_t *	dofs,
		size_t	N_alloc,
		bool	sort = `true`
	)		const

overridevirtual

Get the row DOFs given a mesh element.

Reimplemented from AMP::Discretization::DOFManager.

◆ initialize()

void AMP::Discretization::simpleDOFManager::initialize ( )

protected

◆ numGlobalDOF()

virtual size_t AMP::Discretization::DOFManager::numGlobalDOF ( ) const

virtualinherited

The global number of D.O.F.

Returns: The global number of D.O.F

◆ numLocalDOF()

virtual size_t AMP::Discretization::DOFManager::numLocalDOF ( ) const

virtualinherited

The local number of D.O.F.

Returns: The local number of D.O.F

◆ operator!=()

bool AMP::Discretization::DOFManager::operator!= ( const DOFManager & rhs ) const

inherited

Inverse of ==.

This function performs an equality check and negates it. Hence, it is not virtual

Parameters

rhs	DOFManager to compare

◆ operator==()

virtual bool AMP::Discretization::DOFManager::operator== ( const DOFManager & rhs ) const

virtualinherited

Compares two DOFManager for equality.

This operation compares two DOF managers to see if they are equivalent

Parameters

rhs	DOFManager to compare

◆ registerChildObjects()

void AMP::Discretization::simpleDOFManager::registerChildObjects ( AMP::IO::RestartManager * manager ) const

overridevirtual

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented from AMP::Discretization::DOFManager.

◆ replaceRemoteDOFs()

virtual void AMP::Discretization::DOFManager::replaceRemoteDOFs ( std::vector< size_t > & newRemote )

inlinevirtualinherited

Definition at line 174 of file DOF_Manager.h.

References AMP::Discretization::DOFManager::d_remoteDOFs.

◆ shared_from_this() [1/2]

std::shared_ptr< AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ subset() [1/4]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset	(	const AMP::Mesh::MeshIterator &	iterator,
		const AMP_MPI &	comm
	)

virtual

Subset the DOF Manager for a mesh element iterator.

This will subset a DOF manager for a given mesh element iterator. The resulting DOFManager will exist on the privided comm.

Parameters

[in]	iterator	The mesh iterator for the subset
[in]	comm	The desired comm

Reimplemented from AMP::Discretization::DOFManager.

◆ subset() [2/4]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset ( const AMP_MPI & comm )

virtual

Subset the DOF Manager for a AMP_MPI communicator.

This will subset a DOF manager for a given communicator.

Parameters

[in] comm The communicator to use to subset

Reimplemented from AMP::Discretization::DOFManager.

◆ subset() [3/4]

virtual std::shared_ptr< DOFManager > AMP::Discretization::DOFManager::subset	(	const std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		bool	useMeshComm = `true`
	)

virtual

Subset the DOF Manager for a mesh.

This will subset a DOF manager for a particular mesh. The resulting DOFManager can exist on either the comm of the parent DOF manager, or the comm of the mesh (default).

Parameters

[in]	mesh	The mesh to use to subset
[in]	useMeshComm	Do we want to use the mesh comm for the new DOFManager. Note: if this is true, any processors that do not contain the mesh will return NULL.

Reimplemented from AMP::Discretization::DOFManager.

◆ subset() [4/4]

std::shared_ptr< DOFManager > AMP::Discretization::simpleDOFManager::subset	(	const std::shared_ptr< const AMP::Mesh::Mesh >	mesh,
		bool	useMeshComm = `true`
	)

overridevirtual

Subset the DOF Manager for a mesh.

This will subset a DOF manager for a particular mesh. The resulting DOFManager can exist on either the comm of the parent DOF manager, or the comm of the mesh (default).

Parameters

[in]	mesh	The mesh to use to subset
[in]	useMeshComm	Do we want to use the mesh comm for the new DOFManager. Note: if this is true, any processors that do not contain the mesh will return NULL.

Reimplemented from AMP::Discretization::DOFManager.

◆ writeRestart()

void AMP::Discretization::simpleDOFManager::writeRestart ( int64_t fid ) const

overridevirtual

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented from AMP::Discretization::DOFManager.

Member Data Documentation

◆ d_baseMeshIDs

std::vector<AMP::Mesh::MeshID> AMP::Discretization::simpleDOFManager::d_baseMeshIDs

protected

Definition at line 183 of file simpleDOF_Manager.h.

◆ d_begin

size_t AMP::Discretization::DOFManager::d_begin = 0

protectedinherited

The begining DOF, ending DOF and number of local DOFs for this processor.

Definition at line 260 of file DOF_Manager.h.

Referenced by AMP::Discretization::subsetCommSelfDOFManager::getLocalSizes().

◆ d_comm

AMP_MPI AMP::Discretization::DOFManager::d_comm

protectedinherited

The comm for this DOFManager.

Definition at line 267 of file DOF_Manager.h.

Referenced by AMP::Discretization::DOFManager::getComm().

◆ d_DOFsPerElement

uint8_t AMP::Discretization::simpleDOFManager::d_DOFsPerElement = 0

protected

Definition at line 180 of file simpleDOF_Manager.h.

◆ d_end

size_t AMP::Discretization::DOFManager::d_end = 0

protectedinherited

Definition at line 260 of file DOF_Manager.h.

Referenced by AMP::Discretization::subsetCommSelfDOFManager::getLocalSizes().

◆ d_ghostIterator

AMP::Mesh::MeshIterator AMP::Discretization::simpleDOFManager::d_ghostIterator

protected

Definition at line 185 of file simpleDOF_Manager.h.

◆ d_global

size_t AMP::Discretization::DOFManager::d_global = 0

protectedinherited

Definition at line 260 of file DOF_Manager.h.

◆ d_isBaseMesh

bool AMP::Discretization::simpleDOFManager::d_isBaseMesh = false

protected

Definition at line 178 of file simpleDOF_Manager.h.

◆ d_local_id

std::vector<AMP::Mesh::MeshElementID> AMP::Discretization::simpleDOFManager::d_local_id

protected

Definition at line 186 of file simpleDOF_Manager.h.

◆ d_localIterator

AMP::Mesh::MeshIterator AMP::Discretization::simpleDOFManager::d_localIterator

protected

Definition at line 184 of file simpleDOF_Manager.h.

◆ d_localSize

std::vector<size_t> AMP::Discretization::DOFManager::d_localSize

mutableprotectedinherited

Definition at line 261 of file DOF_Manager.h.

◆ d_mesh

std::shared_ptr<const AMP::Mesh::Mesh> AMP::Discretization::simpleDOFManager::d_mesh

protected

Definition at line 181 of file simpleDOF_Manager.h.

◆ d_meshID

AMP::Mesh::MeshID AMP::Discretization::simpleDOFManager::d_meshID

protected

Definition at line 182 of file simpleDOF_Manager.h.

◆ d_remote_dof

std::vector<size_t> AMP::Discretization::simpleDOFManager::d_remote_dof

protected

Definition at line 188 of file simpleDOF_Manager.h.

◆ d_remote_id

std::vector<AMP::Mesh::MeshElementID> AMP::Discretization::simpleDOFManager::d_remote_id

protected

Definition at line 187 of file simpleDOF_Manager.h.

◆ d_remoteDOFs

std::vector<size_t> AMP::Discretization::DOFManager::d_remoteDOFs

protectedinherited

The remote dofs (if cached)

Definition at line 264 of file DOF_Manager.h.

Referenced by AMP::Discretization::DOFManager::replaceRemoteDOFs().

◆ d_type

AMP::Mesh::GeomType AMP::Discretization::simpleDOFManager::d_type = AMP::Mesh::GeomType::Nullity

protected

Definition at line 179 of file simpleDOF_Manager.h.

◆ params

std::shared_ptr<DOFManagerParameters> AMP::Discretization::DOFManager::params

protectedinherited

The DOF manager parameters.

Definition at line 257 of file DOF_Manager.h.

◆ weak_ptr_

std::weak_ptr<AMP::Discretization::DOFManager > AMP::enable_shared_from_this< AMP::Discretization::DOFManager >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/discretization/simpleDOF_Manager.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ simpleDOFManager() [1/3]

◆ ~simpleDOFManager()

◆ simpleDOFManager() [2/3]

◆ simpleDOFManager() [3/3]

Member Function Documentation

◆ appendDOFs()

◆ beginDOF()

◆ className()

◆ create() [1/3]

◆ create() [2/3]

◆ create() [3/3]

◆ endDOF()

◆ getComm()

◆ getDOFs() [1/3]

◆ getDOFs() [2/3]

◆ getDOFs() [3/3]

◆ getDOFsPerPoint()

◆ getElement()

◆ getElementID()

◆ getID()

◆ getIterator()

◆ getLocalSizes()

◆ getMesh()

◆ getRemoteDOF()

◆ getRemoteDOFs()

◆ getRowDOFs() [1/3]

◆ getRowDOFs() [2/3]

◆ getRowDOFs() [3/3]

◆ initialize()

◆ numGlobalDOF()

◆ numLocalDOF()

◆ operator!=()

◆ operator==()

◆ registerChildObjects()

◆ replaceRemoteDOFs()

◆ shared_from_this() [1/2]

◆ shared_from_this() [2/2]

◆ subset() [1/4]

◆ subset() [2/4]

◆ subset() [3/4]

◆ subset() [4/4]

◆ writeRestart()

Member Data Documentation

◆ d_baseMeshIDs

◆ d_begin

◆ d_comm

◆ d_DOFsPerElement

◆ d_end

◆ d_ghostIterator

◆ d_global

◆ d_isBaseMesh

◆ d_local_id

◆ d_localIterator

◆ d_localSize

◆ d_mesh

◆ d_meshID

◆ d_remote_dof

◆ d_remote_id

◆ d_remoteDOFs

◆ d_type

◆ params

◆ weak_ptr_
