A class used to hold vector data. More...

#include <VectorDataNull.h>

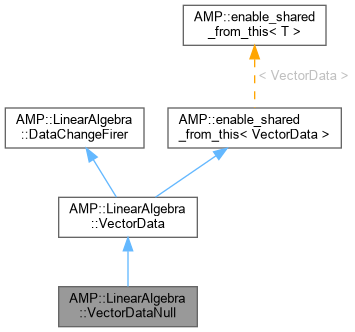

Inheritance diagram for AMP::LinearAlgebra::VectorDataNull:

[legend]

Public Member Functions
template<class TYPE >
void	addGhostValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Add shared values using global identifier.

void	addGhostValuesByGlobalID (size_t, const size_t , const void , const typeID &) override
	Add shared values using global identifier.

template<class TYPE >
void	addValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Add owned or shared values using global identifier.

void	addValuesByLocalID (size_t N, const size_t , const void , const typeID &) override
	Add values to vector entities by their local offset.

template<class TYPE >
void	addValuesByLocalID (size_t num, const size_t indices, const TYPE vals)
	Add values to vector entities by their local offset.

virtual void	assemble ()
	This method is used to implement the assemble interface of PETSc.

template<class TYPE = double>
VectorDataIterator< TYPE >	begin ()
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	begin () const
	Return an iterator to the beginning of the data.

std::shared_ptr< VectorData >	cloneData (const std::string &="") const override
	Clone the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	constBegin () const
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	constEnd () const
	Return an iterator to the end of the data.

bool	containsGlobalElement (size_t) const override

void	copyGhostValues (const VectorData &) override
	Copy ghosted vlues to a vector.

void	dataChanged () override
	Notify listeners that data has changed in this vector.

virtual void	deregisterListener (DataChangeListener *listener)
	Deregister a listener with this DataChangeFirer.

void	dumpGhostedData (std::ostream &, size_t) const override
	Write data owned by other processors to an std::ostream.

virtual void	dumpOwnedData (std::ostream &out, size_t GIDoffset=0, size_t LIDoffset=0) const
	Write owned data to an std::ostream.

template<class TYPE = double>
VectorDataIterator< TYPE >	end ()
	Return an iterator to the end of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	end () const
	Return an iterator to the end of the data.

void	fillGhosts (const Scalar &) override
	Zero all ghost data (does not modify consistent status)

virtual void	fireDataChange ()
	Notify all listeners of a data change event.

template<class TYPE >
size_t	getAllGhostValues (TYPE *vals) const
	Get all ghost values.

size_t	getAllGhostValues (void *, const typeID &) const override
	Get all ghost values in the vector.

const AMP_MPI &	getComm () const override
	Get the communicator.

std::shared_ptr< CommunicationList >	getCommunicationList () const override
	Get the CommunicationList for this Vector.

virtual std::shared_ptr< VectorData >	getComponent (size_t i=0)
	Number of elements in the ith component.

virtual std::shared_ptr< const VectorData >	getComponent (size_t i=0) const
	Number of elements in the ith component.

uint64_t	getDataID () const override
	A unique id for the underlying data allocation.

template<class TYPE >
void	getGhostAddValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	get ghosted values to add to off-proc elements

void	getGhostAddValuesByGlobalID (size_t, const size_t , void , const typeID &) const override
	get ghosted values to add to off-proc elements

size_t	getGhostSize () const override
	Number of entries "owned" by other cores stored on this core.

template<class TYPE >
void	getGhostValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	Get ghost values in the vector by their global offset.

void	getGhostValuesByGlobalID (size_t, const size_t , void , const typeID &) const override
	Get ghost values in the vector by their global offset.

size_t	getGlobalSize () const
	Number of total entries in this vector across all cores.

UpdateState	getGlobalUpdateStatus () const
	Return the current update state of the Vector.

uint64_t	getID () const
	Get a unique id hash for the vector.

size_t	getLocalSize () const
	Number of elements "owned" by this core.

virtual std::vector< size_t >	getLocalSizes () const
	The local sizes on each rank.

size_t	getLocalStartID () const
	get local start id core.

UpdateState	getLocalUpdateStatus () const override
	Return the current update state of the Vector.

virtual AMP::Utilities::MemoryType	getMemoryLocation () const
	returns the memory location for data

virtual size_t	getNumberOfComponents () const
	Return integer number of data components.

template<class TYPE >
void	getRawData (TYPE *buf) const
	Copy data out of this vector.

void	getRawData (void *, const typeID &) const override
	Copy data out of this vector.

template<typename RETURN_TYPE >
RETURN_TYPE *	getRawDataBlock (size_t i=0)
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

template<typename RETURN_TYPE >
const RETURN_TYPE *	getRawDataBlock (size_t i=0) const
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

const void *	getRawDataBlockAsVoid (size_t) const override
	Return a pointer to a particular block of memory in the vector.

void *	getRawDataBlockAsVoid (size_t) override
	Return a pointer to a particular block of memory in the vector.

typeID	getType (size_t) const override
	Return the typeid of the given block.

std::shared_ptr< UpdateState >	getUpdateStatusPtr () const override
	Return the current update state of this Vector.

template<class TYPE >
void	getValuesByGlobalID (size_t num, const size_t indices, TYPE vals) const
	get values in the vector by their local offset

void	getValuesByLocalID (size_t N, const size_t , void , const typeID &) const override
	Get local values in the vector by their global offset.

template<class TYPE >
void	getValuesByLocalID (size_t num, const size_t indices, TYPE vals) const
	Get local values in the vector by their global offset.

virtual bool	hasContiguousData () const
	returns whether all data for the vector on a single process is contiguous

bool	hasGhosts () const override
	Check if any entries "owned" by other cores are stored on this core.

virtual bool	isAnAliasOf (const VectorData &rhs) const
	Check if the two VectorData objects are alias of each other.

template<typename TYPE >
bool	isBlockType (size_t i=0) const
	Check if the data is of the given type.

template<typename TYPE >
bool	isType () const
	Check if the data is of the given type.

bool	isType (const typeID &id, size_t block) const
	Is the data of the given type.

virtual void	makeConsistent ()
	Update shared values on entire communicator.

virtual void	makeConsistent (ScatterType t)=0
	Update shared values on entire communicator.

void	makeConsistent (ScatterType) override
	Update shared values on entire communicator.

size_t	numberOfDataBlocks () const override
	Number of blocks of contiguous data in the Vector.

virtual void	print (std::ostream &os, const std::string &name="A", const std::string &prefix="") const

template<class TYPE >
void	putRawData (const TYPE *buf)
	Copy data into this vector.

void	putRawData (const void *, const typeID &) override
	Copy data into this vector.

virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register any child objects.

virtual void	registerListener (DataChangeListener *listener)
	Register a listener with this DataChangeFirer.

virtual void	registerListener (std::shared_ptr< DataChangeListener > listener)
	Register a listener with this DataChangeFirer.

virtual void	reset ()
	reset the vector data object

void	setCommunicationList (std::shared_ptr< CommunicationList >) override
	Set the CommunicationList for this Vector.

template<class TYPE >
void	setGhostValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Set ghost values using global identifier.

void	setGhostValuesByGlobalID (size_t, const size_t , const void , const typeID &) override
	Set ghost values using global identifier.

virtual void	setNoGhosts ()
	Ensure this vector has no ghosts.

void	setUpdateStatus (UpdateState) override
	Sets the current update state of the Vector.

void	setUpdateStatusPtr (std::shared_ptr< UpdateState >) override
	Tie the current update state to another.

template<class TYPE >
void	setValuesByGlobalID (size_t num, const size_t indices, const TYPE vals)
	Set owned or shared values using global identifier.

void	setValuesByLocalID (size_t N, const size_t , const void , const typeID &) override
	Set values in the vector by their local offset.

template<class TYPE >
void	setValuesByLocalID (size_t num, const size_t indices, const TYPE vals)
	Set values in the vector by their local offset.

std::shared_ptr< VectorData >	shared_from_this ()

std::shared_ptr< const VectorData >	shared_from_this () const

size_t	sizeOfDataBlock (size_t=0) const override
	Number of elements in a data block.

size_t	sizeofDataBlockType (size_t) const override
	Return the result of sizeof(TYPE) for the given data block.

void	swapData (VectorData &) override
	Swap the data with another VectorData object.

std::string	VectorDataName () const override
	Get the type name.

	VectorDataNull ()=delete

	VectorDataNull (const typeID &type)

virtual void	writeRestart (int64_t fid) const
	Write restart data to file.

Protected Attributes
size_t	d_globalSize = 0
	Number of local values.

size_t	d_localSize = 0

size_t	d_localStart = 0
	Number of global values.

std::weak_ptr< VectorData >	weak_ptr_

Private Attributes
std::vector< DataChangeListener * >	d_listeners

typeID	d_type

Detailed Description

A class used to hold vector data.

VectorDataNull is a default implementation of VectorData that stores the local values as a single block of data on the CPU.

Definition at line 16 of file VectorDataNull.h.

Constructor & Destructor Documentation

◆ VectorDataNull() [1/2]

AMP::LinearAlgebra::VectorDataNull::VectorDataNull ( )

delete

◆ VectorDataNull() [2/2]

AMP::LinearAlgebra::VectorDataNull::VectorDataNull ( const typeID & type )

inline

Definition at line 20 of file VectorDataNull.h.

Member Function Documentation

◆ addGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add shared values using global identifier.

Parameters

[in]	num	number of values to add
[in]	indices	the indices of the values to add
[in]	vals	the values to place in the vector

◆ addGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::VectorDataNull::addGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Add shared values using global identifier.

Parameters

[in]	num	number of values to add
[in]	indices	the indices of the values to add
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

Implements AMP::LinearAlgebra::VectorData.

◆ addValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add owned or shared values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

Since the shared buffer and owned buffer are separate, this function must sort the data by buffer before setting values.

◆ addValuesByLocalID() [1/2]

void AMP::LinearAlgebra::VectorDataNull::addValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Add values to vector entities by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{this}_{\mathit{indices}_i} + \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ addValuesByLocalID() [2/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::addValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Add values to vector entities by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{this}_{\mathit{indices}_i} + \mathit{vals}_i \)

◆ assemble()

virtual void AMP::LinearAlgebra::VectorData::assemble ( )

inlinevirtualinherited

This method is used to implement the assemble interface of PETSc.

This method is empty except for instantiations of NativePetscVectorData

Reimplemented in AMP::LinearAlgebra::ManagedVectorData, AMP::LinearAlgebra::MultiVectorData, and AMP::LinearAlgebra::NativePetscVectorData.

Definition at line 631 of file VectorData.h.

◆ begin() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::VectorData::begin ( )

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ begin() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::begin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ cloneData()

std::shared_ptr< VectorData > AMP::LinearAlgebra::VectorDataNull::cloneData ( const std::string & name = "" ) const

overridevirtual

Clone the data.

Implements AMP::LinearAlgebra::VectorData.

◆ constBegin()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::constBegin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ constEnd()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::constEnd ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ containsGlobalElement()

bool AMP::LinearAlgebra::VectorDataNull::containsGlobalElement ( size_t ) const

inlineoverridevirtual

Implements AMP::LinearAlgebra::VectorData.

Definition at line 42 of file VectorDataNull.h.

◆ copyGhostValues()

void AMP::LinearAlgebra::VectorDataNull::copyGhostValues ( const VectorData & rhs )

inlineoverridevirtual

Copy ghosted vlues to a vector.

Parameters

[in] rhs Vector to copy ghost values from

This ensures that ghosted values on this and rhs are the same without a call to makeConsistent.

See also: makeConsistent

Implements AMP::LinearAlgebra::VectorData.

Definition at line 45 of file VectorDataNull.h.

◆ dataChanged()

void AMP::LinearAlgebra::VectorDataNull::dataChanged ( )

inlineoverridevirtual

Notify listeners that data has changed in this vector.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 43 of file VectorDataNull.h.

◆ deregisterListener()

virtual void AMP::LinearAlgebra::DataChangeFirer::deregisterListener ( DataChangeListener * listener )

virtualinherited

Deregister a listener with this DataChangeFirer.

Parameters

[in] listener The listener to remove from the list

Removes a listener from itself.

◆ dumpGhostedData()

void AMP::LinearAlgebra::VectorDataNull::dumpGhostedData	(	std::ostream &	out,
		size_t	offset
	)		const

inlineoverridevirtual

Write data owned by other processors to an std::ostream.

Parameters

[in]	out	The output stream to write to.
[in]	offset	A number to add to the global ID when writing information

Implements AMP::LinearAlgebra::VectorData.

Definition at line 44 of file VectorDataNull.h.

◆ dumpOwnedData()

virtual void AMP::LinearAlgebra::VectorData::dumpOwnedData	(	std::ostream &	out,
		size_t	GIDoffset = `0`,
		size_t	LIDoffset = `0`
	)		const

virtualinherited

Write owned data to an std::ostream.

Parameters

[in]	out	The output stream to write to.
[in]	GIDoffset	A number to add to the global ID when writing information
[in]	LIDoffset	A number to add to the local ID when writing information

Reimplemented in AMP::LinearAlgebra::MultiVectorData.

◆ end() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::VectorData::end ( )

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ end() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::VectorData::end ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

◆ fillGhosts()

void AMP::LinearAlgebra::VectorDataNull::fillGhosts ( const Scalar & x )

inlineoverridevirtual

Zero all ghost data (does not modify consistent status)

Implements AMP::LinearAlgebra::VectorData.

Definition at line 27 of file VectorDataNull.h.

◆ fireDataChange()

virtual void AMP::LinearAlgebra::DataChangeFirer::fireDataChange ( )

virtualinherited

Notify all listeners of a data change event.

Iterates through the list of DataChangeListeners and invokes the receiveDataChanged() method.

Referenced by AMP::LinearAlgebra::ManagedVectorData::receiveDataChanged(), and AMP::LinearAlgebra::MultiVectorData::receiveDataChanged().

◆ getAllGhostValues() [1/2]

template<class TYPE >

size_t AMP::LinearAlgebra::VectorData::getAllGhostValues ( TYPE * vals ) const

inherited

Get all ghost values.

Parameters

[out] vals the values to place in the vector

This will get any value owned by this core.

◆ getAllGhostValues() [2/2]

size_t AMP::LinearAlgebra::VectorDataNull::getAllGhostValues	(	void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get all ghost values in the vector.

Parameters

[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value owned by this core.

Returns: Returns the number of ghost values

Implements AMP::LinearAlgebra::VectorData.

◆ getComm()

const AMP_MPI & AMP::LinearAlgebra::VectorDataNull::getComm ( ) const

overridevirtual

Get the communicator.

Implements AMP::LinearAlgebra::VectorData.

◆ getCommunicationList()

std::shared_ptr< CommunicationList > AMP::LinearAlgebra::VectorDataNull::getCommunicationList ( ) const

inlineoverridevirtual

Get the CommunicationList for this Vector.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 46 of file VectorDataNull.h.

◆ getComponent() [1/2]

virtual std::shared_ptr< VectorData > AMP::LinearAlgebra::VectorData::getComponent ( size_t i = 0 )

virtualinherited

Number of elements in the ith component.

Parameters

[in] i particular data block

Returns: The number of elements in the ith component

Reimplemented in AMP::LinearAlgebra::MultiVectorData.

◆ getComponent() [2/2]

virtual std::shared_ptr< const VectorData > AMP::LinearAlgebra::VectorData::getComponent ( size_t i = 0 ) const

virtualinherited

Number of elements in the ith component.

Parameters

[in] i particular data block

Returns: The number of elements in the ith component

Reimplemented in AMP::LinearAlgebra::MultiVectorData.

◆ getDataID()

uint64_t AMP::LinearAlgebra::VectorDataNull::getDataID ( ) const

inlineoverridevirtual

A unique id for the underlying data allocation.

This is a unique id that is associated with the data data allocation. Views of a vector should preserve the id of the original vector. Vectors that are not allocated, or contain multiple vectors (such as Multivector) should return 0. Note: this id is not consistent across multiple processors.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 50 of file VectorDataNull.h.

◆ getGhostAddValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getGhostAddValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

get ghosted values to add to off-proc elements

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will get the ghosted updates this processor has made. All indices are from global 0.

◆ getGhostAddValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::VectorDataNull::getGhostAddValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

get ghosted values to add to off-proc elements

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get the ghosted updates this processor has made. All indices are from global 0.

Implements AMP::LinearAlgebra::VectorData.

◆ getGhostSize()

size_t AMP::LinearAlgebra::VectorDataNull::getGhostSize ( ) const

inlineoverridevirtual

Number of entries "owned" by other cores stored on this core.

Returns: Number of entries "owned" by other cores stored on this core

Implements AMP::LinearAlgebra::VectorData.

Definition at line 49 of file VectorDataNull.h.

◆ getGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

Get ghost values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get any value owned by this core.

◆ getGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::VectorDataNull::getGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get ghost values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value owned by this core.

Implements AMP::LinearAlgebra::VectorData.

◆ getGlobalSize()

size_t AMP::LinearAlgebra::VectorData::getGlobalSize ( ) const

inlineinherited

Number of total entries in this vector across all cores.

Returns: Number of entries stored across all cores in this

Definition at line 71 of file VectorData.h.

References AMP::LinearAlgebra::VectorData::d_globalSize.

◆ getGlobalUpdateStatus()

UpdateState AMP::LinearAlgebra::VectorData::getGlobalUpdateStatus ( ) const

inherited

Return the current update state of the Vector.

This returns the effective update state of the vector, including any vectors it contains. The effective state is defined as: UNCHANGED - All data and sub vectors are unchanged LOCAL_CHANGED - Local data may be modified, sub vectors must either be UNCHANGED or LOCAL_CHANGED. ADDING - Local and ghost data may be modified through add operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or ADDING SETTING - Local and ghost data may be modified through set operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or SETTING If different subvectors have incompatible states ADDING and SETTING, this function will return MIXED This version returns the global state and requires a collective communication

◆ getID()

uint64_t AMP::LinearAlgebra::VectorData::getID ( ) const

inherited

Get a unique id hash for the vector.

◆ getLocalSize()

size_t AMP::LinearAlgebra::VectorData::getLocalSize ( ) const

inlineinherited

Number of elements "owned" by this core.

Returns: Number of entries stored on this processor

This function returns the number of locally stored values under contiguous indexing.

Definition at line 66 of file VectorData.h.

◆ getLocalSizes()

virtual std::vector< size_t > AMP::LinearAlgebra::VectorData::getLocalSizes ( ) const

virtualinherited

The local sizes on each rank.

Returns: The local sizes on each rank

Reimplemented in AMP::LinearAlgebra::MultiVectorData.

◆ getLocalStartID()

size_t AMP::LinearAlgebra::VectorData::getLocalStartID ( ) const

inlineinherited

get local start id core.

Returns: The first entry "owned" by this core

Definition at line 76 of file VectorData.h.

References AMP::LinearAlgebra::VectorData::d_localStart.

◆ getLocalUpdateStatus()

UpdateState AMP::LinearAlgebra::VectorDataNull::getLocalUpdateStatus ( ) const

inlineoverridevirtual

Return the current update state of the Vector.

This returns the effective update state of the vector, including any vectors it contains. The effective state is defined as: UNCHANGED - All data and sub vectors are unchanged LOCAL_CHANGED - Local data may be modified, sub vectors must either be UNCHANGED or LOCAL_CHANGED. ADDING - Local and ghost data may be modified through add operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or ADDING SETTING - Local and ghost data may be modified through set operations, sub vectors must be UNCHANGED, LOCAL_CHANGED, or SETTING If different subvectors have incompatible states ADDING and SETTING, this function will return MIXED This version returns the local state only and does not involve communication

Implements AMP::LinearAlgebra::VectorData.

Definition at line 38 of file VectorDataNull.h.

References AMP::LinearAlgebra::UNCHANGED.

◆ getMemoryLocation()

virtual AMP::Utilities::MemoryType AMP::LinearAlgebra::VectorData::getMemoryLocation ( ) const

inlinevirtualinherited

returns the memory location for data

Reimplemented in AMP::LinearAlgebra::MultiVectorData, AMP::LinearAlgebra::VectorDataDefault< TYPE, Allocator >, and AMP::LinearAlgebra::VectorDataDefault< double, AMP::HostAllocator< void > >.

Definition at line 528 of file VectorData.h.

References AMP::Utilities::host.

◆ getNumberOfComponents()

virtual size_t AMP::LinearAlgebra::VectorData::getNumberOfComponents ( ) const

virtualinherited

Return integer number of data components.

Reimplemented in AMP::LinearAlgebra::MultiVectorData.

◆ getRawData() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getRawData ( TYPE * buf ) const

inherited

Copy data out of this vector.

Parameters

[out] buf Buffer to copy to

The Vector should be pre-allocated to the correct size (getLocalSize())

◆ getRawData() [2/2]

void AMP::LinearAlgebra::VectorDataNull::getRawData	(	void *	buf,
		const typeID &	id
	)		const

inlineoverridevirtual

Copy data out of this vector.

Parameters

[out]	buf	Buffer to copy to
[in]	id	typeID of raw data

The Vector should be pre-allocated to the correct size (getLocalSize())

Implements AMP::LinearAlgebra::VectorData.

Definition at line 25 of file VectorDataNull.h.

◆ getRawDataBlock() [1/2]

template<typename RETURN_TYPE >

RETURN_TYPE * AMP::LinearAlgebra::VectorData::getRawDataBlock ( size_t i = 0 )

inherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A contiguous array of type RETURN_TYPE

◆ getRawDataBlock() [2/2]

template<typename RETURN_TYPE >

const RETURN_TYPE * AMP::LinearAlgebra::VectorData::getRawDataBlock ( size_t i = 0 ) const

inherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A const contiguous array of type RETURN_TYPE

◆ getRawDataBlockAsVoid() [1/2]

const void * AMP::LinearAlgebra::VectorDataNull::getRawDataBlockAsVoid ( size_t i ) const

inlineoverridevirtual

Return a pointer to a particular block of memory in the vector.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

Definition at line 52 of file VectorDataNull.h.

◆ getRawDataBlockAsVoid() [2/2]

void * AMP::LinearAlgebra::VectorDataNull::getRawDataBlockAsVoid ( size_t i )

inlineoverridevirtual

Return a pointer to a particular block of memory in the vector.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

Definition at line 51 of file VectorDataNull.h.

◆ getType()

typeID AMP::LinearAlgebra::VectorDataNull::getType ( size_t block ) const

inlineoverridevirtual

Return the typeid of the given block.

Parameters

block The block id to check

Implements AMP::LinearAlgebra::VectorData.

Definition at line 37 of file VectorDataNull.h.

References d_type.

◆ getUpdateStatusPtr()

std::shared_ptr< UpdateState > AMP::LinearAlgebra::VectorDataNull::getUpdateStatusPtr ( ) const

inlineoverridevirtual

Return the current update state of this Vector.

This returns the pointer to the update state of the current vector only (not vectors it contains). It should NOT be used by users.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 41 of file VectorDataNull.h.

◆ getValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

get values in the vector by their local offset

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get the owned values for this core. All indices are from 0.

◆ getValuesByLocalID() [1/2]

void AMP::LinearAlgebra::VectorDataNull::getValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		void *	vals,
		const typeID &	id
	)		const

overridevirtual

Get local values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will get any value used by this core.

Implements AMP::LinearAlgebra::VectorData.

◆ getValuesByLocalID() [2/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::getValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inherited

Get local values in the vector by their global offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[out]	vals	the values to place in the vector

This will get any value used by this core.

◆ hasContiguousData()

virtual bool AMP::LinearAlgebra::VectorData::hasContiguousData ( ) const

inlinevirtualinherited

returns whether all data for the vector on a single process is contiguous

Reimplemented in AMP::LinearAlgebra::ManagedVectorData, AMP::LinearAlgebra::MultiVectorData, AMP::LinearAlgebra::SubsetCommSelfVectorData, and AMP::LinearAlgebra::SubsetVectorData.

Definition at line 113 of file VectorData.h.

◆ hasGhosts()

bool AMP::LinearAlgebra::VectorDataNull::hasGhosts ( ) const

inlineoverridevirtual

Check if any entries "owned" by other cores are stored on this core.

Returns: True if any entries "owned" by other cores are stored on this core

Implements AMP::LinearAlgebra::VectorData.

Definition at line 26 of file VectorDataNull.h.

◆ isAnAliasOf()

virtual bool AMP::LinearAlgebra::VectorData::isAnAliasOf ( const VectorData & rhs ) const

virtualinherited

Check if the two VectorData objects are alias of each other.

This function checks if two VectorData objects are alias of each other. Two VectorData objects are alias if their data blocks are the same size and point to the same memory blocks.

Parameters

[in] rhs VectorData to compare

See also: makeConsistent

Reimplemented in AMP::LinearAlgebra::ManagedVectorData.

◆ isBlockType()

template<typename TYPE >

bool AMP::LinearAlgebra::VectorData::isBlockType ( size_t i = 0 ) const

inherited

Check if the data is of the given type.

Returns: true if the ith block of data is of the given type

◆ isType() [1/2]

template<typename TYPE >

bool AMP::LinearAlgebra::VectorData::isType ( ) const

inherited

Check if the data is of the given type.

Returns: true if all data is of the given type

◆ isType() [2/2]

bool AMP::LinearAlgebra::VectorData::isType	(	const typeID &	id,
		size_t	block
	)		const

inlineinherited

Is the data of the given type.

Parameters

id	The typeid
block	The block id to check

◆ makeConsistent() [1/3]

virtual void AMP::LinearAlgebra::VectorData::makeConsistent ( )

virtual

Update shared values on entire communicator.

This version will check the state of the vector and then call the appropriate version of makeConsistent

Reimplemented from AMP::LinearAlgebra::VectorData.

◆ makeConsistent() [2/3]

virtual void AMP::LinearAlgebra::VectorData::makeConsistent ( ScatterType t )

virtual

Update shared values on entire communicator.

Parameters

t	The type of scatter used to compute values

There are two algorithms used by makeConsistent

If t = CONSISTENT_SET, then owned values are sent to processors that share the value. Shared values are overwritten
If t = CONSISTENT_ADD, then shared values are accumulated on the core that owns it and applied as determined, either add or set. Then, the values are broadcast out.

Generally, when adding to a vector, the GATHER_SCATTER should be used to make consistent. When setting entries in a vector the BROADCAST should be used.

Implements AMP::LinearAlgebra::VectorData.

◆ makeConsistent() [3/3]

void AMP::LinearAlgebra::VectorDataNull::makeConsistent ( ScatterType t )

inlineoverridevirtual

Update shared values on entire communicator.

Parameters

t	The type of scatter used to compute values

There are two algorithms used by makeConsistent

If t = CONSISTENT_SET, then owned values are sent to processors that share the value. Shared values are overwritten
If t = CONSISTENT_ADD, then shared values are accumulated on the core that owns it and applied as determined, either add or set. Then, the values are broadcast out.

Generally, when adding to a vector, the GATHER_SCATTER should be used to make consistent. When setting entries in a vector the BROADCAST should be used.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 56 of file VectorDataNull.h.

◆ numberOfDataBlocks()

size_t AMP::LinearAlgebra::VectorDataNull::numberOfDataBlocks ( ) const

inlineoverridevirtual

Number of blocks of contiguous data in the Vector.

Returns: Number of blocks in the Vector

A vector is not necessarily contiguous in memory. This method returns the number of contiguous blocks in memory used by this vector

Implements AMP::LinearAlgebra::VectorData.

Definition at line 22 of file VectorDataNull.h.

◆ print()

virtual void AMP::LinearAlgebra::VectorData::print	(	std::ostream &	os,
		const std::string &	name = `"A"`,
		const std::string &	prefix = `""`
	)		const

virtualinherited

◆ putRawData() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::putRawData ( const TYPE * buf )

inherited

Copy data into this vector.

Parameters

[in] buf Buffer to copy from

◆ putRawData() [2/2]

void AMP::LinearAlgebra::VectorDataNull::putRawData	(	const void *	buf,
		const typeID &	id
	)

inlineoverridevirtual

Copy data into this vector.

Parameters

[in]	buf	Buffer to copy from
[in]	id	typeID of raw data

Implements AMP::LinearAlgebra::VectorData.

Definition at line 24 of file VectorDataNull.h.

◆ registerChildObjects()

virtual void AMP::LinearAlgebra::VectorData::registerChildObjects ( AMP::IO::RestartManager * manager ) const

virtualinherited

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented in AMP::LinearAlgebra::VectorDataDevice< TYPE, Allocator >, AMP::LinearAlgebra::GhostDataHelper< TYPE, Allocator >, AMP::LinearAlgebra::GhostDataHelper< double >, AMP::LinearAlgebra::GhostDataHelper< double, AMP::HostAllocator< void > >, AMP::LinearAlgebra::GhostDataHelper< PetscScalar >, AMP::LinearAlgebra::GhostDataHelper< T, AMP::HostAllocator< void > >, AMP::LinearAlgebra::MultiVectorData, AMP::LinearAlgebra::VectorDataDefault< TYPE, Allocator >, and AMP::LinearAlgebra::VectorDataDefault< double, AMP::HostAllocator< void > >.

◆ registerListener() [1/2]

virtual void AMP::LinearAlgebra::DataChangeFirer::registerListener ( DataChangeListener * listener )

virtualinherited

Register a listener with this DataChangeFirer.

Parameters

[in] listener The listener to be alerted to data change events

Adds a listener to itself.

◆ registerListener() [2/2]

virtual void AMP::LinearAlgebra::DataChangeFirer::registerListener ( std::shared_ptr< DataChangeListener > listener )

virtualinherited

Register a listener with this DataChangeFirer.

Parameters

[in] listener The listener to be alerted to data change events

Adds a listener to itself.

◆ reset()

virtual void AMP::LinearAlgebra::VectorData::reset ( )

virtualinherited

reset the vector data object

At present this interface is primarily meant for vector data over AMR hierarchies, where the number of AMR levels and vector data has to be reallocated

◆ setCommunicationList()

void AMP::LinearAlgebra::VectorDataNull::setCommunicationList ( std::shared_ptr< CommunicationList > comm )

inlineoverridevirtual

Set the CommunicationList for this Vector.

Setting the CommunicationList for a Vector may involve reallocating ghost storage.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 47 of file VectorDataNull.h.

◆ setGhostValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set ghost values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

\( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

◆ setGhostValuesByGlobalID() [2/2]

void AMP::LinearAlgebra::VectorDataNull::setGhostValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Set ghost values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

\( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ setNoGhosts()

virtual void AMP::LinearAlgebra::VectorData::setNoGhosts ( )

virtualinherited

Ensure this vector has no ghosts.

Calls clearBuffer for the communication list and removes any storage for ghosts

Reimplemented in AMP::LinearAlgebra::GhostDataHelper< TYPE, Allocator >, AMP::LinearAlgebra::GhostDataHelper< double >, AMP::LinearAlgebra::GhostDataHelper< double, AMP::HostAllocator< void > >, AMP::LinearAlgebra::GhostDataHelper< PetscScalar >, AMP::LinearAlgebra::GhostDataHelper< T, AMP::HostAllocator< void > >, and AMP::LinearAlgebra::MultiVectorData.

◆ setUpdateStatus()

void AMP::LinearAlgebra::VectorDataNull::setUpdateStatus ( UpdateState state )

inlineoverridevirtual

Sets the current update state of the Vector.

This sets the update status of the vector. This function should only be called by advanced users

Parameters

[in] state State of the vector to set

Implements AMP::LinearAlgebra::VectorData.

Definition at line 39 of file VectorDataNull.h.

◆ setUpdateStatusPtr()

void AMP::LinearAlgebra::VectorDataNull::setUpdateStatusPtr ( std::shared_ptr< UpdateState > rhs )

inlineoverridevirtual

Tie the current update state to another.

This sets the pointer to the update state of the current vector only (not vectors it contains). It should NOT be used by users.

Parameters

rhs	Pointer to share update state with

Implements AMP::LinearAlgebra::VectorData.

Definition at line 40 of file VectorDataNull.h.

◆ setValuesByGlobalID()

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setValuesByGlobalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set owned or shared values using global identifier.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

Since the shared buffer and owned buffer are separate, this function must sort the data by buffer before setting values.

◆ setValuesByLocalID() [1/2]

void AMP::LinearAlgebra::VectorDataNull::setValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const void *	vals,
		const typeID &	id
	)

overridevirtual

Set values in the vector by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector
[in]	id	typeID of raw data

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

Implements AMP::LinearAlgebra::VectorData.

◆ setValuesByLocalID() [2/2]

template<class TYPE >

void AMP::LinearAlgebra::VectorData::setValuesByLocalID	(	size_t	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inherited

Set values in the vector by their local offset.

Parameters

[in]	num	number of values to set
[in]	indices	the indices of the values to set
[in]	vals	the values to place in the vector

This will set the owned values for this core. All indices are from 0. \( \mathit{this}_{\mathit{indices}_i} = \mathit{vals}_i \)

◆ shared_from_this() [1/2]

std::shared_ptr< VectorData > AMP::enable_shared_from_this< VectorData >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const VectorData > AMP::enable_shared_from_this< VectorData >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ sizeOfDataBlock()

size_t AMP::LinearAlgebra::VectorDataNull::sizeOfDataBlock ( size_t i = 0 ) const

inlineoverridevirtual

Number of elements in a data block.

Parameters

[in] i particular data block

Returns: The size of a particular block

Implements AMP::LinearAlgebra::VectorData.

Definition at line 23 of file VectorDataNull.h.

◆ sizeofDataBlockType()

size_t AMP::LinearAlgebra::VectorDataNull::sizeofDataBlockType ( size_t i ) const

inlineoverridevirtual

Return the result of sizeof(TYPE) for the given data block.

Parameters

i	The block to return

Implements AMP::LinearAlgebra::VectorData.

Definition at line 53 of file VectorDataNull.h.

References AMP::typeID::bytes, and d_type.

◆ swapData()

void AMP::LinearAlgebra::VectorDataNull::swapData ( VectorData & rhs )

inlineoverridevirtual

Swap the data with another VectorData object.

Parameters

rhs	The VectorData to swap with

Implements AMP::LinearAlgebra::VectorData.

Definition at line 54 of file VectorDataNull.h.

References AMP_ERROR.

◆ VectorDataName()

std::string AMP::LinearAlgebra::VectorDataNull::VectorDataName ( ) const

inlineoverridevirtual

Get the type name.

Implements AMP::LinearAlgebra::VectorData.

Definition at line 21 of file VectorDataNull.h.

◆ writeRestart()

virtual void AMP::LinearAlgebra::VectorData::writeRestart ( int64_t fid ) const

virtualinherited

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::LinearAlgebra::GhostDataHelper< TYPE, Allocator >, AMP::LinearAlgebra::GhostDataHelper< double >, AMP::LinearAlgebra::GhostDataHelper< double, AMP::HostAllocator< void > >, AMP::LinearAlgebra::GhostDataHelper< PetscScalar >, AMP::LinearAlgebra::GhostDataHelper< T, AMP::HostAllocator< void > >, AMP::LinearAlgebra::MultiVectorData, AMP::LinearAlgebra::VectorDataDevice< TYPE, Allocator >, AMP::LinearAlgebra::VectorDataDefault< TYPE, Allocator >, and AMP::LinearAlgebra::VectorDataDefault< double, AMP::HostAllocator< void > >.

Member Data Documentation

◆ d_globalSize

size_t AMP::LinearAlgebra::VectorData::d_globalSize = 0

protectedinherited

Number of local values.

Definition at line 675 of file VectorData.h.

Referenced by AMP::LinearAlgebra::VectorData::getGlobalSize().

◆ d_listeners

std::vector<DataChangeListener *> AMP::LinearAlgebra::DataChangeFirer::d_listeners

privateinherited

Definition at line 89 of file DataChangeFirer.h.

◆ d_localSize

size_t AMP::LinearAlgebra::VectorData::d_localSize = 0

protectedinherited

Definition at line 674 of file VectorData.h.

Referenced by AMP::LinearAlgebra::GhostDataHelper< T, AMP::HostAllocator< void > >::getGhostValuesByGlobalID(), AMP::LinearAlgebra::EpetraVectorData::sizeOfDataBlock(), and AMP::LinearAlgebra::TpetraVectorData< ST, LO, GO, NT >::sizeOfDataBlock().

◆ d_localStart

size_t AMP::LinearAlgebra::VectorData::d_localStart = 0

protectedinherited

Number of global values.

Definition at line 676 of file VectorData.h.

Referenced by AMP::LinearAlgebra::VectorData::getLocalStartID().

◆ d_type

typeID AMP::LinearAlgebra::VectorDataNull::d_type

private

Definition at line 60 of file VectorDataNull.h.

Referenced by getType(), and sizeofDataBlockType().

◆ weak_ptr_

std::weak_ptr<VectorData > AMP::enable_shared_from_this< VectorData >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/vectors/data/VectorDataNull.h

Public Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VectorDataNull() [1/2]

◆ VectorDataNull() [2/2]

Member Function Documentation

◆ addGhostValuesByGlobalID() [1/2]

◆ addGhostValuesByGlobalID() [2/2]

◆ addValuesByGlobalID()

◆ addValuesByLocalID() [1/2]

◆ addValuesByLocalID() [2/2]

◆ assemble()

◆ begin() [1/2]

◆ begin() [2/2]

◆ cloneData()

◆ constBegin()

◆ constEnd()

◆ containsGlobalElement()

◆ copyGhostValues()

◆ dataChanged()

◆ deregisterListener()

◆ dumpGhostedData()

◆ dumpOwnedData()

◆ end() [1/2]

◆ end() [2/2]

◆ fillGhosts()

◆ fireDataChange()

◆ getAllGhostValues() [1/2]

◆ getAllGhostValues() [2/2]

◆ getComm()

◆ getCommunicationList()

◆ getComponent() [1/2]

◆ getComponent() [2/2]

◆ getDataID()

◆ getGhostAddValuesByGlobalID() [1/2]

◆ getGhostAddValuesByGlobalID() [2/2]

◆ getGhostSize()

◆ getGhostValuesByGlobalID() [1/2]

◆ getGhostValuesByGlobalID() [2/2]

◆ getGlobalSize()

◆ getGlobalUpdateStatus()

◆ getID()

◆ getLocalSize()

◆ getLocalSizes()

◆ getLocalStartID()

◆ getLocalUpdateStatus()

◆ getMemoryLocation()

◆ getNumberOfComponents()

◆ getRawData() [1/2]

◆ getRawData() [2/2]

◆ getRawDataBlock() [1/2]

◆ getRawDataBlock() [2/2]

◆ getRawDataBlockAsVoid() [1/2]

◆ getRawDataBlockAsVoid() [2/2]

◆ getType()

◆ getUpdateStatusPtr()

◆ getValuesByGlobalID()

◆ getValuesByLocalID() [1/2]

◆ getValuesByLocalID() [2/2]

◆ hasContiguousData()

◆ hasGhosts()

◆ isAnAliasOf()

◆ isBlockType()

◆ isType() [1/2]

◆ isType() [2/2]

◆ makeConsistent() [1/3]

◆ makeConsistent() [2/3]

◆ makeConsistent() [3/3]

◆ numberOfDataBlocks()

◆ print()

◆ putRawData() [1/2]

◆ putRawData() [2/2]

◆ registerChildObjects()

◆ registerListener() [1/2]

◆ registerListener() [2/2]

◆ reset()

◆ setCommunicationList()

◆ setGhostValuesByGlobalID() [1/2]
