A base class used to iterate over elements in a Mesh. More...

#include <MeshIterator.h>

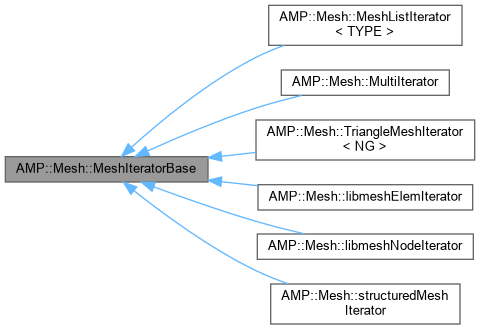

Inheritance diagram for AMP::Mesh::MeshIteratorBase:

[legend]

Public Types
using	difference_type = ptrdiff_t

using	iterator_category = std::random_access_iterator_tag

using	pointer = const AMP::Mesh::MeshElement *

using	reference = const AMP::Mesh::MeshElement &

enum class	Type : uint8_t { Forward = 1 , Bidirectional = 2 , RandomAccess = 3 }
	Enum for the type of iterator supported. More...

using	value_type = AMP::Mesh::MeshElement

Public Member Functions
virtual MeshIterator	begin () const =0
	Return an iterator to the beginning.

virtual std::string	className () const =0
	Return the class name.

virtual std::unique_ptr< MeshIteratorBase >	clone () const =0
	Clone the iterator.

size_t	empty () const
	Return the number of elements in the iterator.

MeshIteratorEnd	end () const
	Return an iterator to the end (use tombstone class)

uint64_t	getID () const
	Return a unique hash id.

	MeshIteratorBase (int64_t, AMP::IO::RestartManager *)

virtual bool	operator!= (const MeshIteratorBase &rhs) const =0
	Check if two iterators are not equal.

bool	operator!= (MeshIteratorEnd) const
	Check if two iterators are not equal.

const MeshElement &	operator* () const
	Dereference the iterator.

virtual MeshIteratorBase &	operator++ ()=0

virtual MeshIteratorBase &	operator+= (int N)=0

virtual MeshIteratorBase &	operator-- ()=0

const MeshElement *	operator-> () const
	Dereference the iterator.

virtual bool	operator== (const MeshIteratorBase &rhs) const =0
	Check if two iterators are equal.

bool	operator== (MeshIteratorEnd) const
	Check if two iterators are equal.

size_t	pos () const
	Return the current position (from the beginning) in the iterator.

virtual void	registerChildObjects (AMP::IO::RestartManager *) const =0

virtual void	setPos (size_t)=0
	Set the position in the iterator.

size_t	size () const
	Return the number of elements in the iterator.

Type	type () const
	Return the iterator type.

virtual void	writeRestart (int64_t) const =0

virtual	~MeshIteratorBase ()=default
	Virtual destructor.

Protected Member Functions
	MeshIteratorBase ()=default

	MeshIteratorBase (const MeshIteratorBase &)=delete

	MeshIteratorBase (MeshIteratorBase &&)=delete

MeshIteratorBase &	operator= (const MeshIteratorBase &)=delete

MeshIteratorBase &	operator= (MeshIteratorBase &&)=delete

Protected Attributes
const MeshElement *	d_element = nullptr
	Pointer to the current element.

Type	d_iteratorType = Type::RandomAccess
	Type of iterator.

size_t	d_pos = 0
	Position of the iterator.

size_t	d_size = 0
	Size of the iterator.

uint32_t	d_typeHash = 0
	Unique hash for the type.

Detailed Description

A base class used to iterate over elements in a Mesh.

This class provides routines for iterating over a set of elements. It is inherited from std::iterator. The base class provides routines for the random access iterators, but does so using the increment/decrement routines. Derived classes may (or may not) override these routines for performance optimizations.

Definition at line 40 of file MeshIterator.h.

Member Typedef Documentation

◆ difference_type

using AMP::Mesh::MeshIteratorBase::difference_type = ptrdiff_t

Definition at line 45 of file MeshIterator.h.

◆ iterator_category

using AMP::Mesh::MeshIteratorBase::iterator_category = std::random_access_iterator_tag

Definition at line 43 of file MeshIterator.h.

◆ pointer

using AMP::Mesh::MeshIteratorBase::pointer = const AMP::Mesh::MeshElement *

Definition at line 46 of file MeshIterator.h.

◆ reference

using AMP::Mesh::MeshIteratorBase::reference = const AMP::Mesh::MeshElement &

Definition at line 47 of file MeshIterator.h.

◆ value_type

using AMP::Mesh::MeshIteratorBase::value_type = AMP::Mesh::MeshElement

Definition at line 44 of file MeshIterator.h.

Member Enumeration Documentation

◆ Type

enum class AMP::Mesh::MeshIteratorBase::Type : uint8_t

strong

Enum for the type of iterator supported.

Enumerator
Forward
Bidirectional
RandomAccess

Definition at line 52 of file MeshIterator.h.

Constructor & Destructor Documentation

◆ ~MeshIteratorBase()

virtual AMP::Mesh::MeshIteratorBase::~MeshIteratorBase ( )

virtualdefault

Virtual destructor.

◆ MeshIteratorBase() [1/4]

AMP::Mesh::MeshIteratorBase::MeshIteratorBase	(	int64_t	,
		AMP::IO::RestartManager *
	)

◆ MeshIteratorBase() [2/4]

AMP::Mesh::MeshIteratorBase::MeshIteratorBase ( )

protecteddefault

◆ MeshIteratorBase() [3/4]

AMP::Mesh::MeshIteratorBase::MeshIteratorBase ( const MeshIteratorBase & )

protecteddelete

◆ MeshIteratorBase() [4/4]

AMP::Mesh::MeshIteratorBase::MeshIteratorBase ( MeshIteratorBase && )

protecteddelete

Member Function Documentation

◆ begin()

virtual MeshIterator AMP::Mesh::MeshIteratorBase::begin ( ) const

pure virtual

Return an iterator to the beginning.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ className()

virtual std::string AMP::Mesh::MeshIteratorBase::className ( ) const

pure virtual

Return the class name.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ clone()

virtual std::unique_ptr< MeshIteratorBase > AMP::Mesh::MeshIteratorBase::clone ( ) const

pure virtual

Clone the iterator.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ empty()

size_t AMP::Mesh::MeshIteratorBase::empty ( ) const

inline

Return the number of elements in the iterator.

Definition at line 63 of file MeshIterator.h.

References d_size.

◆ end()

MeshIteratorEnd AMP::Mesh::MeshIteratorBase::end ( ) const

inline

Return an iterator to the end (use tombstone class)

Definition at line 78 of file MeshIterator.h.

◆ getID()

uint64_t AMP::Mesh::MeshIteratorBase::getID ( ) const

inline

Return a unique hash id.

Definition at line 60 of file MeshIterator.h.

References d_typeHash.

◆ operator!=() [1/2]

virtual bool AMP::Mesh::MeshIteratorBase::operator!= ( const MeshIteratorBase & rhs ) const

pure virtual

Check if two iterators are not equal.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, AMP::Mesh::TriangleMeshIterator< NG >, AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ operator!=() [2/2]

bool AMP::Mesh::MeshIteratorBase::operator!= ( MeshIteratorEnd ) const

inline

Check if two iterators are not equal.

Definition at line 84 of file MeshIterator.h.

References d_pos, and d_size.

◆ operator*()

const MeshElement & AMP::Mesh::MeshIteratorBase::operator* ( ) const

inline

Dereference the iterator.

Definition at line 75 of file MeshIterator.h.

References d_element.

◆ operator++()

virtual MeshIteratorBase & AMP::Mesh::MeshIteratorBase::operator++ ( )

pure virtual

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ operator+=()

virtual MeshIteratorBase & AMP::Mesh::MeshIteratorBase::operator+= ( int N )

pure virtual

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ operator--()

virtual MeshIteratorBase & AMP::Mesh::MeshIteratorBase::operator-- ( )

pure virtual

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ operator->()

const MeshElement * AMP::Mesh::MeshIteratorBase::operator-> ( ) const

inline

Dereference the iterator.

Definition at line 72 of file MeshIterator.h.

References d_element.

◆ operator=() [1/2]

MeshIteratorBase & AMP::Mesh::MeshIteratorBase::operator= ( const MeshIteratorBase & )

protecteddelete

◆ operator=() [2/2]

MeshIteratorBase & AMP::Mesh::MeshIteratorBase::operator= ( MeshIteratorBase && )

protecteddelete

◆ operator==() [1/2]

virtual bool AMP::Mesh::MeshIteratorBase::operator== ( const MeshIteratorBase & rhs ) const

pure virtual

Check if two iterators are equal.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, AMP::Mesh::TriangleMeshIterator< NG >, AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ operator==() [2/2]

bool AMP::Mesh::MeshIteratorBase::operator== ( MeshIteratorEnd ) const

inline

Check if two iterators are equal.

Definition at line 81 of file MeshIterator.h.

References d_pos, and d_size.

◆ pos()

size_t AMP::Mesh::MeshIteratorBase::pos ( ) const

inline

Return the current position (from the beginning) in the iterator.

Definition at line 69 of file MeshIterator.h.

References d_pos.

◆ registerChildObjects()

virtual void AMP::Mesh::MeshIteratorBase::registerChildObjects ( AMP::IO::RestartManager * ) const

pure virtual

Implemented in AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::TriangleMeshIterator< NG >, AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MultiIterator, and AMP::Mesh::structuredMeshIterator.

◆ setPos()

virtual void AMP::Mesh::MeshIteratorBase::setPos ( size_t )

pure virtual

Set the position in the iterator.

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MeshListIterator< TYPE >, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, and AMP::Mesh::TriangleMeshIterator< NG >.

◆ size()

size_t AMP::Mesh::MeshIteratorBase::size ( ) const

inline

Return the number of elements in the iterator.

Definition at line 66 of file MeshIterator.h.

References d_size.

◆ type()

Type AMP::Mesh::MeshIteratorBase::type ( ) const

inline

Return the iterator type.

Definition at line 57 of file MeshIterator.h.

References d_iteratorType.

◆ writeRestart()

virtual void AMP::Mesh::MeshIteratorBase::writeRestart ( int64_t ) const

pure virtual

Implemented in AMP::Mesh::libmeshElemIterator, AMP::Mesh::libmeshNodeIterator, AMP::Mesh::MultiIterator, AMP::Mesh::structuredMeshIterator, AMP::Mesh::MeshListIterator< TYPE >, and AMP::Mesh::TriangleMeshIterator< NG >.

Member Data Documentation

◆ d_element

const MeshElement* AMP::Mesh::MeshIteratorBase::d_element = nullptr

protected

Pointer to the current element.

Definition at line 137 of file MeshIterator.h.

Referenced by operator*(), and operator->().

◆ d_iteratorType

Type AMP::Mesh::MeshIteratorBase::d_iteratorType = Type::RandomAccess

protected

Type of iterator.

Definition at line 133 of file MeshIterator.h.

Referenced by type().

◆ d_pos

size_t AMP::Mesh::MeshIteratorBase::d_pos = 0

protected

Position of the iterator.

Definition at line 136 of file MeshIterator.h.

Referenced by operator!=(), operator==(), and pos().

◆ d_size

size_t AMP::Mesh::MeshIteratorBase::d_size = 0

protected

Size of the iterator.

Definition at line 135 of file MeshIterator.h.

Referenced by empty(), operator!=(), operator==(), and size().

◆ d_typeHash

uint32_t AMP::Mesh::MeshIteratorBase::d_typeHash = 0

protected

Unique hash for the type.

Definition at line 134 of file MeshIterator.h.

Referenced by getID().

The documentation for this class was generated from the following file:

src/mesh/MeshIterator.h
