A class that can provide a Sundials N_Vector view of an AMP Vector. More...

#include <ManagedSundialsVector.h>

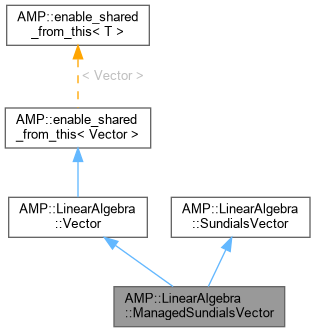

Inheritance diagram for AMP::LinearAlgebra::ManagedSundialsVector:

[legend]

Public Types
typedef std::shared_ptr< const Vector >	const_shared_ptr

typedef std::shared_ptr< Vector >	shared_ptr
	Shorthand for shared pointer to Vector.

Public Member Functions
void	abs (const Vector &x)
	Set this to the component-wise absolute value of a vector. \(\mathit{this}_i = \|x_i\|\).

void	add (const Vector &x, const Vector &y)
	Adds two vectors. For Vectors, \(\mathit{this}_i = x_i + y_i\).

template<typename TYPE >
void	addGhostValuesByGlobalID (int num, const size_t indices, const TYPE vals)

void	addScalar (const Vector &x, const Scalar &alpha)
	set vector to \(x + \alpha \bar{1}\).

template<typename TYPE >
void	addValuesByGlobalID (int num, const size_t indices, const TYPE vals)

template<class TYPE >
void	addValuesByLocalID (int num, size_t indices, const TYPE vals)

void	axpby (const Scalar &alpha, const Scalar &beta, const Vector &x)
	Set this vector alpha * x + this. \(\mathit{this}_i = \alpha x_i + \beta \mathit{this}_i \).

void	axpy (const Scalar &alpha, const Vector &x, const Vector &y)
	Set this vector to alpha * x + y. \(\mathit{this}_i = \alpha x_i + y_i\).

template<class TYPE = double>
VectorDataIterator< TYPE >	begin ()
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	begin () const
	Return an iterator to the beginning of the data.

std::shared_ptr< Vector >	clone () const
	Allocate space in the same fashion as this

std::shared_ptr< Vector >	clone (const std::shared_ptr< Variable > name) const
	Allocate space in the same fashion as this

std::shared_ptr< Vector >	clone (const std::string &name) const
	Allocate space in the same fashion as this

std::shared_ptr< VectorData >	cloneData () const

template<class TYPE = double>
VectorDataIterator< const TYPE >	constBegin () const
	Return an iterator to the beginning of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	constEnd () const
	Return an iterator to the end of the data.

bool	containsGlobalElement (size_t id)

void	copy (const Vector &x)
	Set vector equal to x For Vectors, \(\mathit{this}_i = x_i\).

void	copyCast (std::shared_ptr< const Vector > x)
	Copy up/down-casting this

virtual void	copyVector (std::shared_ptr< const Vector > x)

void	dataChanged ()

void	divide (const Vector &x, const Vector &y)
	Component-wise divide one vector by another. For Vectors, \(\mathit{this}_i = x_i / y_i\).

Scalar	dot (const Vector &x) const
	Return the dot product of this vector with the argument vector.

void	dumpGhostedData (std::ostream &out, size_t offset=0) const

void	dumpOwnedData (std::ostream &out, size_t GIDoffset=0, size_t LIDoffset=0) const

template<class TYPE = double>
VectorDataIterator< TYPE >	end ()
	Return an iterator to the end of the data.

template<class TYPE = double>
VectorDataIterator< const TYPE >	end () const
	Return an iterator to the end of the data.

bool	equals (const Vector &x, const Scalar &tol=1e-6) const
	Check if two vectors are equal.

const AMP_MPI &	getComm () const

std::shared_ptr< CommunicationList >	getCommunicationList () const
	Get the CommunicationList for this Vector.

uint64_t	getDataID () const

std::shared_ptr< AMP::Discretization::DOFManager >	getDOFManager () const
	Get the DOFManager for this Vector.

size_t	getGhostSize () const

template<typename TYPE = double>
TYPE	getGhostValueByGlobalID (size_t i) const
	Return a ghost value from the vector.

template<typename TYPE >
void	getGhostValuesByGlobalID (int num, const size_t indices, TYPE vals) const

size_t	getGlobalSize () const

uint64_t	getID () const
	Get a unique id hash for the vector.

size_t	getLocalSize () const

size_t	getLocalStartID () const

template<typename TYPE = double>
TYPE	getLocalValueByGlobalID (size_t i) const
	Return a local value from the vector.

std::shared_ptr< const Vector >	getManagedVec () const override

std::shared_ptr< Vector >	getManagedVec () override

AMP::Utilities::MemoryType	getMemoryLocation () const
	returns the memory location for data

std::string	getName () const
	Return the vector name.

N_Vector &	getNativeVec ()

const N_Vector &	getNativeVec () const

size_t	getNumberOfComponents () const
	Return integer number of patch data components in vector.

N_Vector &	getNVector ()
	Obtain a Sundials N_Vector for use in Sundials routines.

const N_Vector &	getNVector () const
	Obtain a Sundials N_Vector for use in Sundials routines.

template<class TYPE >
void	getRawData (TYPE *buf) const

template<typename RETURN_TYPE >
RETURN_TYPE *	getRawDataBlock (size_t i=0)
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

template<typename RETURN_TYPE >
const RETURN_TYPE *	getRawDataBlock (size_t i=0) const
	Obtain a particular contiguous block of data cast to RETURN_TYPE.

void *	getRawDataBlockAsVoid (size_t i)

const void *	getRawDataBlockAsVoid (size_t i) const

auto &	getUnits () const
	Get the units for this Vector.

AMP::LinearAlgebra::UpdateState	getUpdateStatus () const

template<typename TYPE = double>
TYPE	getValueByGlobalID (size_t i) const
	Return a value from the vector.

template<typename TYPE = double>
TYPE	getValueByLocalID (size_t i) const
	Return a local value from the vector.

template<typename TYPE >
void	getValuesByGlobalID (int num, const size_t indices, TYPE vals) const

template<typename TYPE >
void	getValuesByLocalID (int num, const size_t indices, TYPE vals) const

std::shared_ptr< Variable >	getVariable ()
	Get the variable associated with this vector.

const std::shared_ptr< Variable >	getVariable () const
	Get the variable associated with this vector.

std::shared_ptr< VectorData >	getVectorData ()
	Return the pointer to the VectorData.

std::shared_ptr< const VectorData >	getVectorData () const
	Return the pointer to the VectorData.

std::shared_ptr< VectorOperations >	getVectorOperations ()
	Return the pointer to the VectorOperation.

std::shared_ptr< const VectorOperations >	getVectorOperations () const
	Return the pointer to the VectorOperation.

template<typename VIEW_TYPE >
std::shared_ptr< VIEW_TYPE >	getView () const
	If a particular type of view of this Vector has been created, return it.

bool	hasComm () const

template<typename VIEW_TYPE >
bool	hasView () const
	If a particular type of view of this Vector has been created, return true.

template<typename TYPE >
bool	isType (size_t block) const

Scalar	L1Norm () const
	Return discrete \( L_1 \) -norm of this vector.

Scalar	L2Norm () const
	Return discrete \( L_2 \) -norm of this vector.

std::pair< Scalar, Scalar >	L2NormAndDot (const Vector &x) const
	Return the L2 norm of this vector and the dot product with the argument vector.

void	linearSum (const Scalar &alpha, const Vector &x, const Scalar &beta, const Vector &y)
	Set a vector to be a linear combination of two vectors. \(\mathit{this}_i = \alpha x_i + \beta y_i\).

void	makeConsistent ()

void	makeConsistent (AMP::LinearAlgebra::ScatterType t)

	ManagedSundialsVector (shared_ptr alias)
	Create a view to an AMP vector.

Scalar	max () const
	Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

Scalar	maxNorm () const
	Return the \( L_\infty \) -norm of this vector.

Scalar	mean () const
	Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

Scalar	min () const
	Return the minimum value of the vector. \(\min_i \mathit{this}_i\).

Scalar	minQuotient (const Vector &x) const
	Returns the minimum of the quotient of two vectors:

void	multiply (const Vector &x, const Vector &y)
	Component-wise multiply one vector with another. For Vectors, \(\mathit{this}_i = x_i y_i\).

size_t	numberOfDataBlocks () const

template<class TYPE >
void	putRawData (const TYPE *buf)

std::unique_ptr< Vector >	rawClone () const override
	Allocate space in the same fashion as this

void	reciprocal (const Vector &x)
	Set this to the component-wise reciprocal of a vector. \(\mathit{this}_i = 1/x_i\).

virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register any child objects.

template<typename VIEW_TYPE >
void	registerView (std::shared_ptr< VIEW_TYPE > v) const
	Add a view of this vector to an internal queue.

virtual void	rename (const std::string &src, const std::string &dst)
	Renames.

virtual void	reset ()
	Reset.

void	scale (const Scalar &alpha)
	Scale a vector. For Vectors, \(\mathit{this}_i = \alpha\mathit{this}_i\).

void	scale (const Scalar &alpha, const Vector &x)
	Set vector equal to scaled input. For Vectors, \(\mathit{this}_i = \alpha x_i\).

shared_ptr	select (const VectorSelector &criterion)
	Selects a portion of this vector and creates a view.

const_shared_ptr	select (const VectorSelector &criterion) const
	Selects a portion of this vector and creates a view.

virtual Vector::shared_ptr	selectInto (const VectorSelector &criterion)
	Selects a portion of this vector and puts a view into a vector.

virtual Vector::const_shared_ptr	selectInto (const VectorSelector &criterion) const

void	setCommunicationList (std::shared_ptr< CommunicationList > comm)

template<typename TYPE >
void	setGhostValuesByGlobalID (int num, const size_t indices, const TYPE vals)

void	setMax (const Scalar &val)
	modify vector to have max value 'val' specified

void	setMin (const Scalar &val)
	modify vector to have min value 'val' specified

void	setName (const std::string &name)
	Set the vector name.

void	setNoGhosts ()
	Ensure this vector has no ghosts.

void	setRandomValues ()
	Set data in this vector to random values on [0,1).

void	setToScalar (const Scalar &alpha)
	Set all compenents of a vector to a scalar. For Vectors, the components of this are set to \(\alpha\).

virtual void	setUnits (AMP::Units)
	Get the units for this Vector.

void	setUpdateStatus (AMP::LinearAlgebra::UpdateState state)

template<typename TYPE >
void	setValueByGlobalID (size_t i, TYPE v)
	Set a value in the vector.

template<typename TYPE >
void	setValuesByGlobalID (int num, const size_t indices, const TYPE vals)

template<class TYPE >
void	setValuesByLocalID (int num, size_t indices, const TYPE vals)

void	setVariable (const std::shared_ptr< Variable > name)
	Change the variable associated with this vector.

std::shared_ptr< Vector >	shared_from_this ()

std::shared_ptr< const Vector >	shared_from_this () const

size_t	sizeOfDataBlock (size_t i=0) const

size_t	sizeofDataBlockType (size_t i) const

Vector::shared_ptr	subsetVectorForComponent (size_t index)
	Retrieve ith subvector.

Vector::const_shared_ptr	subsetVectorForComponent (size_t index) const
	Retrieve ith subvector.

Vector::shared_ptr	subsetVectorForVariable (const std::string &name)
	Retrieve a sub-vector associated with a particular Variable.

Vector::const_shared_ptr	subsetVectorForVariable (const std::string &name) const
	Retrieve a sub-vector associated with a particular Variable.

Vector::shared_ptr	subsetVectorForVariable (std::shared_ptr< const Variable > var)
	Retrieve a sub-vector associated with a particular Variable.

Vector::const_shared_ptr	subsetVectorForVariable (std::shared_ptr< const Variable > var) const
	Retrieve a sub-vector associated with a particular Variable.

void	subtract (const Vector &x, const Vector &y)
	Subtracts one vector from another. For Vectors, \(\mathit{this}_i = x_i - y_i\).

Scalar	sum () const
	Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

void	swapData (VectorData &rhs)

void	swapVectors (Vector &other) override
	Swap the data in this Vector for another.

void	swapVectors (Vector::shared_ptr other)
	Swap the data in this Vector for another.

std::string	type () const override
	Return the name of the vector.

std::string	VectorDataName () const

virtual void	writeRestart (int64_t fid) const
	Write restart data to file.

Scalar	wrmsNorm (const Vector &x, const Vector &y) const
	Return a weighted norm of a vector.

Scalar	wrmsNormMask (const Vector &x, const Vector &mask, const Vector &y) const
	Return a weighted norm of a subset of a vector.

void	zero ()
	Set vector entries (including ghosts) to zero.

virtual	~ManagedSundialsVector ()
	Destructor.

Static Public Member Functions
static std::shared_ptr< const SundialsVector >	constView (Vector::const_shared_ptr AmpVector)
	If needed, create a Sundials wrapper for AmpVector. Otherwise, return AmpVector.

static std::shared_ptr< SundialsVector >	view (Vector::shared_ptr AmpVector)
	If needed, create a Sundials wrapper for AmpVector. Otherwise, return AmpVector.

Protected Attributes
std::shared_ptr< AMP::Discretization::DOFManager >	d_DOFManager

N_Vector	d_n_vector
	Sundials NVector wrapping the data in the Vector.

AMP::Units	d_units

std::shared_ptr< Variable >	d_Variable

std::shared_ptr< VectorData >	d_VectorData

std::shared_ptr< VectorOperations >	d_VectorOps

std::shared_ptr< std::vector< std::any > >	d_Views

std::weak_ptr< Vector >	weak_ptr_

Private Member Functions
	ManagedSundialsVector (const ManagedSundialsVector &)

void	operator= (const ManagedSundialsVector &)

Static Private Member Functions
static void	abs_AMP (N_Vector x, N_Vector z)

static void	addScalar_AMP (N_Vector x, realtype b, N_Vector z)

static N_Vector	clone_AMP (N_Vector w)

static N_Vector	cloneempty_no_impl (N_Vector w)

static void	compare_no_impl (realtype c, N_Vector x, N_Vector z)

static booleantype	constrmask_no_impl (N_Vector c, N_Vector x, N_Vector m)

static N_Vector_Ops	createNVectorOps ()

static void	divide_AMP (N_Vector x, N_Vector y, N_Vector z)

static realtype	dot_AMP (N_Vector x, N_Vector y)

static void	freeVectorComponents_AMP (N_Vector v)

static realtype *	getarraypointer_no_impl (N_Vector v)

static booleantype	invtest_no_impl (N_Vector x, N_Vector z)

static realtype	L1Norm_AMP (N_Vector x)

static void	linearSum_AMP (realtype a, N_Vector x, realtype b, N_Vector y, N_Vector z)

static realtype	maxNorm_AMP (N_Vector x)

static realtype	min_AMP (N_Vector x)

static realtype	minquotient_AMP (N_Vector num, N_Vector denom)

static void	multiply_AMP (N_Vector x, N_Vector y, N_Vector z)

static void	reciprocal_AMP (N_Vector x, N_Vector z)

static void	scale_AMP (realtype c, N_Vector x, N_Vector z)

static void	setarraypointer_no_impl (realtype *v_data, N_Vector v)

static void	setToScalar_AMP (realtype c, N_Vector z)

static realtype	wl2norm_no_impl (N_Vector x, N_Vector w)

static realtype	WRMSNorm_AMP (N_Vector x, N_Vector w)

static realtype	WRMSNormMask_AMP (N_Vector x, N_Vector w, N_Vector mask)

Detailed Description

A class that can provide a Sundials N_Vector view of an AMP Vector.

This class should not be used explicitly. It is the return type of SundialsVector::view() and SundialsVector::constView().

See also: SundialsVector

Definition at line 24 of file ManagedSundialsVector.h.

Member Typedef Documentation

◆ const_shared_ptr

typedef std::shared_ptr<const Vector> AMP::LinearAlgebra::Vector::const_shared_ptr

inherited

Definition at line 65 of file Vector.h.

◆ shared_ptr

AMP::LinearAlgebra::Vector::shared_ptr

inherited

Shorthand for shared pointer to Vector.

Definition at line 60 of file Vector.h.

Constructor & Destructor Documentation

◆ ManagedSundialsVector() [1/2]

AMP::LinearAlgebra::ManagedSundialsVector::ManagedSundialsVector ( shared_ptr alias )

explicit

Create a view to an AMP vector.

Parameters

[in] alias Vector to view

◆ ~ManagedSundialsVector()

virtual AMP::LinearAlgebra::ManagedSundialsVector::~ManagedSundialsVector ( )

virtual

Destructor.

◆ ManagedSundialsVector() [2/2]

AMP::LinearAlgebra::ManagedSundialsVector::ManagedSundialsVector ( const ManagedSundialsVector & )

explicitprivate

Member Function Documentation

◆ abs()

void AMP::LinearAlgebra::Vector::abs ( const Vector & x )

inherited

Set this to the component-wise absolute value of a vector. \(\mathit{this}_i = |x_i|\).

Parameters

[in] x a vector

◆ abs_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::abs_AMP	(	N_Vector	x,
		N_Vector	z
	)

staticprivate

◆ add()

void AMP::LinearAlgebra::Vector::add	(	const Vector &	x,
		const Vector &	y
	)

inherited

Adds two vectors. For Vectors, \(\mathit{this}_i = x_i + y_i\).

Parameters

[in]	x	Input vector x
[in]	y	Input vector y

◆ addGhostValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::addGhostValuesByGlobalID	(	int	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 728 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ addScalar()

void AMP::LinearAlgebra::Vector::addScalar	(	const Vector &	x,
		const Scalar &	alpha
	)

inherited

set vector to \(x + \alpha \bar{1}\).

Parameters

[in]	x	a vector
[in]	alpha	a scalar

for vectors, \(\mathit{this}_i = x_i + \alpha\).

◆ addScalar_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::addScalar_AMP	(	N_Vector	x,
		realtype	b,
		N_Vector	z
	)

staticprivate

◆ addValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::addValuesByGlobalID	(	int	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 738 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ addValuesByLocalID()

template<class TYPE >

void AMP::LinearAlgebra::Vector::addValuesByLocalID	(	int	num,
		size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 672 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ axpby()

void AMP::LinearAlgebra::Vector::axpby	(	const Scalar &	alpha,
		const Scalar &	beta,
		const Vector &	x
	)

inherited

Set this vector alpha * x + this. \(\mathit{this}_i = \alpha x_i + \beta \mathit{this}_i \).

Parameters

[in]	alpha	a scalar
[in]	beta	a scalar
[in]	x	a vector

◆ axpy()

void AMP::LinearAlgebra::Vector::axpy	(	const Scalar &	alpha,
		const Vector &	x,
		const Vector &	y
	)

inherited

Set this vector to alpha * x + y. \(\mathit{this}_i = \alpha x_i + y_i\).

Parameters

[in]	alpha	a scalar
[in]	x	a vector
[in]	y	a vector

◆ begin() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::Vector::begin ( )

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 572 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ begin() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::Vector::begin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 579 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ clone() [1/3]

std::shared_ptr< Vector > AMP::LinearAlgebra::Vector::clone ( ) const

inherited

Allocate space in the same fashion as this

This will allocate new space with identical layout as this. It will have the same number of blocks, each with the same engines and same number of entries. The vector will be associated with the same Variable.

Returns: A Vector shared pointer

◆ clone() [2/3]

std::shared_ptr< Vector > AMP::LinearAlgebra::Vector::clone ( const std::shared_ptr< Variable > name ) const

inherited

Allocate space in the same fashion as this

This will allocate new space with identical layout as this. It will have the same number of blocks, each with the same engines and same number of entries.

Parameters

[in] name The variable to associate with the new vector

Returns: A Vector shared pointer

◆ clone() [3/3]

std::shared_ptr< Vector > AMP::LinearAlgebra::Vector::clone ( const std::string & name ) const

inherited

Allocate space in the same fashion as this

This will allocate new space with identical layout as this. It will have the same number of blocks, each with the same engines and same number of entries. The vector will be associated with a clone of the same Variable with the given name.

Parameters

[in] name Name to give the variable associated with this vector

Returns: A Vector shared pointer

◆ clone_AMP()

static N_Vector AMP::LinearAlgebra::ManagedSundialsVector::clone_AMP ( N_Vector w )

staticprivate

◆ cloneData()

std::shared_ptr< VectorData > AMP::LinearAlgebra::Vector::cloneData ( ) const

inlineinherited

Definition at line 696 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ cloneempty_no_impl()

static N_Vector AMP::LinearAlgebra::ManagedSundialsVector::cloneempty_no_impl ( N_Vector w )

staticprivate

◆ compare_no_impl()

static void AMP::LinearAlgebra::ManagedSundialsVector::compare_no_impl	(	realtype	c,
		N_Vector	x,
		N_Vector	z
	)

staticprivate

◆ constBegin()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::Vector::constBegin ( ) const

inlineinherited

Return an iterator to the beginning of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 586 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ constEnd()

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::Vector::constEnd ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 616 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ constrmask_no_impl()

static booleantype AMP::LinearAlgebra::ManagedSundialsVector::constrmask_no_impl	(	N_Vector	c,
		N_Vector	x,
		N_Vector	m
	)

staticprivate

◆ constView()

static std::shared_ptr< const SundialsVector > AMP::LinearAlgebra::SundialsVector::constView ( Vector::const_shared_ptr AmpVector )

staticinherited

If needed, create a Sundials wrapper for AmpVector. Otherwise, return AmpVector.

The function attempts to return a view with the least amount of work. It will never copy data. If the vector cannot be wrapped it wll return an error.

Parameters

AmpVector a shared pointer to a Vector

◆ containsGlobalElement()

bool AMP::LinearAlgebra::Vector::containsGlobalElement ( size_t id )

inlineinherited

Definition at line 758 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ copy()

void AMP::LinearAlgebra::Vector::copy ( const Vector & x )

inherited

Set vector equal to x For Vectors, \(\mathit{this}_i = x_i\).

Parameters

[in] x a vector

◆ copyCast()

void AMP::LinearAlgebra::Vector::copyCast ( std::shared_ptr< const Vector > x )

inherited

Copy up/down-casting this

The vector will be associated with the same Variable, and will contain a copy of the data in x after up/down-casting it.

Parameters

[in] x a vector

◆ copyVector()

virtual void AMP::LinearAlgebra::Vector::copyVector ( std::shared_ptr< const Vector > x )

inlinevirtualinherited

Definition at line 134 of file Vector.h.

References AMP_ASSERT, AMP::LinearAlgebra::Vector::d_VectorData, and AMP::LinearAlgebra::Vector::d_VectorOps.

◆ createNVectorOps()

static N_Vector_Ops AMP::LinearAlgebra::ManagedSundialsVector::createNVectorOps ( )

staticprivate

◆ dataChanged()

void AMP::LinearAlgebra::Vector::dataChanged ( )

inlineinherited

Definition at line 719 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ divide()

void AMP::LinearAlgebra::Vector::divide	(	const Vector &	x,
		const Vector &	y
	)

inherited

Component-wise divide one vector by another. For Vectors, \(\mathit{this}_i = x_i / y_i\).

Parameters

[in]	x	Input vector x
[in]	y	Input vector y

◆ divide_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::divide_AMP	(	N_Vector	x,
		N_Vector	y,
		N_Vector	z
	)

staticprivate

◆ dot()

Scalar AMP::LinearAlgebra::Vector::dot ( const Vector & x ) const

inherited

Return the dot product of this vector with the argument vector.

Returns

\[\sum_i x_i\mathit{this}_i\]

Parameters

[in] x a vector

◆ dot_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::dot_AMP	(	N_Vector	x,
		N_Vector	y
	)

staticprivate

◆ dumpGhostedData()

void AMP::LinearAlgebra::Vector::dumpGhostedData	(	std::ostream &	out,
		size_t	offset = `0`
	)		const

inlineinherited

Definition at line 767 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ dumpOwnedData()

void AMP::LinearAlgebra::Vector::dumpOwnedData	(	std::ostream &	out,
		size_t	GIDoffset = `0`,
		size_t	LIDoffset = `0`
	)		const

inlineinherited

Definition at line 763 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ end() [1/2]

template<class TYPE = double>

VectorDataIterator< TYPE > AMP::LinearAlgebra::Vector::end ( )

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 602 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ end() [2/2]

template<class TYPE = double>

VectorDataIterator< const TYPE > AMP::LinearAlgebra::Vector::end ( ) const

inlineinherited

Return an iterator to the end of the data.

Returns: A VectorDataIterator

Since the Vector presents an interface to a contiguous block of data, it is natural for it to provide a random access iterator.

Warning: The non-const version of the iterators will automatically leave the vector in a non-consistent state. The user may be required to call makeConsistent.

Definition at line 609 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ equals()

bool AMP::LinearAlgebra::Vector::equals	(	const Vector &	x,
		const Scalar &	tol = `1e-6`
	)		const

inherited

Check if two vectors are equal.

Returns true if each vaue is within tol of the corresponding vaue in the other vector

Parameters

[in]	x	a vector
[in]	tol	tolerance to use

◆ freeVectorComponents_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::freeVectorComponents_AMP ( N_Vector v )

staticprivate

◆ getarraypointer_no_impl()

static realtype * AMP::LinearAlgebra::ManagedSundialsVector::getarraypointer_no_impl ( N_Vector v )

staticprivate

◆ getComm()

const AMP_MPI & AMP::LinearAlgebra::Vector::getComm ( ) const

inlineinherited

Definition at line 646 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getCommunicationList()

std::shared_ptr< CommunicationList > AMP::LinearAlgebra::Vector::getCommunicationList ( ) const

inlineinherited

Get the CommunicationList for this Vector.

Definition at line 711 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getDataID()

uint64_t AMP::LinearAlgebra::Vector::getDataID ( ) const

inlineinherited

Definition at line 676 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getDOFManager()

std::shared_ptr< AMP::Discretization::DOFManager > AMP::LinearAlgebra::Vector::getDOFManager ( ) const

inlineinherited

Get the DOFManager for this Vector.

◆ getGhostSize()

size_t AMP::LinearAlgebra::Vector::getGhostSize ( ) const

inlineinherited

Definition at line 721 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getGhostValueByGlobalID()

template<typename TYPE = double>

TYPE AMP::LinearAlgebra::Vector::getGhostValueByGlobalID ( size_t i ) const

inherited

Return a ghost value from the vector.

Parameters

[in] i The global index into the vector

Returns: The value stored at the index

This uses getGhostValuesByGlobalID to get the value

◆ getGhostValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::getGhostValuesByGlobalID	(	int	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inlineinherited

Definition at line 748 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

Referenced by AMP::Solver::AMG::csr_view< LinearAlgebra::CSRMatrix< Config > >::getGhostValues().

◆ getGlobalSize()

size_t AMP::LinearAlgebra::Vector::getGlobalSize ( ) const

inlineinherited

Definition at line 664 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getID()

uint64_t AMP::LinearAlgebra::Vector::getID ( ) const

inherited

Get a unique id hash for the vector.

◆ getLocalSize()

size_t AMP::LinearAlgebra::Vector::getLocalSize ( ) const

inlineinherited

Definition at line 663 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getLocalStartID()

size_t AMP::LinearAlgebra::Vector::getLocalStartID ( ) const

inlineinherited

Definition at line 665 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getLocalValueByGlobalID()

template<typename TYPE = double>

TYPE AMP::LinearAlgebra::Vector::getLocalValueByGlobalID ( size_t i ) const

inherited

Return a local value from the vector.

Parameters

[in] i The global index into the vector

Returns: The value stored at the index

This uses getValuesByGlobalID to get the value

◆ getManagedVec() [1/2]

std::shared_ptr< const Vector > AMP::LinearAlgebra::ManagedSundialsVector::getManagedVec ( ) const

inlineoverridevirtual

Implements AMP::LinearAlgebra::SundialsVector.

Definition at line 43 of file ManagedSundialsVector.h.

References AMP::enable_shared_from_this< Vector >::shared_from_this().

◆ getManagedVec() [2/2]

std::shared_ptr< Vector > AMP::LinearAlgebra::ManagedSundialsVector::getManagedVec ( )

inlineoverridevirtual

Implements AMP::LinearAlgebra::SundialsVector.

Definition at line 42 of file ManagedSundialsVector.h.

References AMP::enable_shared_from_this< Vector >::shared_from_this().

◆ getMemoryLocation()

AMP::Utilities::MemoryType AMP::LinearAlgebra::Vector::getMemoryLocation ( ) const

inlineinherited

returns the memory location for data

Definition at line 779 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getName()

std::string AMP::LinearAlgebra::Vector::getName ( ) const

inherited

Return the vector name.

◆ getNativeVec() [1/2]

N_Vector & AMP::LinearAlgebra::SundialsVector::getNativeVec ( )

inlineinherited

Definition at line 113 of file SundialsVector.h.

References AMP::LinearAlgebra::SundialsVector::getNVector().

◆ getNativeVec() [2/2]

const N_Vector & AMP::LinearAlgebra::SundialsVector::getNativeVec ( ) const

inlineinherited

Definition at line 114 of file SundialsVector.h.

References AMP::LinearAlgebra::SundialsVector::getNVector().

◆ getNumberOfComponents()

size_t AMP::LinearAlgebra::Vector::getNumberOfComponents ( ) const

inherited

Return integer number of patch data components in vector.

◆ getNVector() [1/2]

N_Vector & AMP::LinearAlgebra::SundialsVector::getNVector ( )

inherited

Obtain a Sundials N_Vector for use in Sundials routines.

This function is used to get a Sundials vector. The following idiom should be used since it fails gracefully. In this function, a view may be created before the NVector is extracted.

double DoSundialsMin( Vector::shared_ptr &in )
{
  // Create a Sundials N_Vector if necessary
  Vector::shared_ptr  in_sundials_view = SundialsVector::view( in );
  // Extract the N_Vector
  N_Vector in_nvector =
std::dynamic_pointer_cast<SundialsVector>(in_sundials_view)->getNVector(); return N_VMin(
in_nvector );
}

Referenced by AMP::LinearAlgebra::SundialsVector::getNativeVec(), and AMP::LinearAlgebra::SundialsVector::getNativeVec().

◆ getNVector() [2/2]

const N_Vector & AMP::LinearAlgebra::SundialsVector::getNVector ( ) const

inherited

Obtain a Sundials N_Vector for use in Sundials routines.

This function is used to get a Sundials vector. The following idiom should be used since it fails gracefully. In this function, a view may be created before the NVector is extracted.

double DoSundialsMin( Vector::shared_ptr &in )
{
  // Create a Sundials N_Vector if necessary
  Vector::shared_ptr  in_sundials_view = SundialsVector::view( in );
  // Extract the N_Vector
  N_Vector in_nvector =
std::dynamic_pointer_cast<SundialsVector>(in_sundials_view)->getNVector(); return N_VMin(
in_nvector );
}

◆ getRawData()

template<class TYPE >

void AMP::LinearAlgebra::Vector::getRawData ( TYPE * buf ) const

inlineinherited

Definition at line 659 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getRawDataBlock() [1/2]

template<typename RETURN_TYPE >

RETURN_TYPE * AMP::LinearAlgebra::Vector::getRawDataBlock ( size_t i = 0 )

inlineinherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A contiguous array of type RETURN_TYPE

Definition at line 627 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getRawDataBlock() [2/2]

template<typename RETURN_TYPE >

const RETURN_TYPE * AMP::LinearAlgebra::Vector::getRawDataBlock ( size_t i = 0 ) const

inlineinherited

Obtain a particular contiguous block of data cast to RETURN_TYPE.

Template Parameters

RETURN_TYPE The pointer type of the return

Parameters

[in] i Which block

Returns: A const contiguous array of type RETURN_TYPE

Definition at line 638 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getRawDataBlockAsVoid() [1/2]

void * AMP::LinearAlgebra::Vector::getRawDataBlockAsVoid ( size_t i )

inlineinherited

Definition at line 677 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getRawDataBlockAsVoid() [2/2]

const void * AMP::LinearAlgebra::Vector::getRawDataBlockAsVoid ( size_t i ) const

inlineinherited

Definition at line 681 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getUnits()

auto & AMP::LinearAlgebra::Vector::getUnits ( ) const

inlineinherited

Get the units for this Vector.

Definition at line 403 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_units.

◆ getUpdateStatus()

AMP::LinearAlgebra::UpdateState AMP::LinearAlgebra::Vector::getUpdateStatus ( ) const

inlineinherited

Definition at line 697 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getValueByGlobalID()

template<typename TYPE = double>

TYPE AMP::LinearAlgebra::Vector::getValueByGlobalID ( size_t i ) const

inherited

Return a value from the vector.

Parameters

[in] i The global index into the vector

Returns: The value stored at the index

This uses getValuesByGlobalID to get the value

◆ getValueByLocalID()

template<typename TYPE = double>

TYPE AMP::LinearAlgebra::Vector::getValueByLocalID ( size_t i ) const

inherited

Return a local value from the vector.

Parameters

[in] i The global index into the vector

Returns: The value stored at the index

This uses getValuesByGlobalID to get the value

◆ getValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::getValuesByGlobalID	(	int	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inlineinherited

Definition at line 743 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getValuesByLocalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::getValuesByLocalID	(	int	num,
		const size_t *	indices,
		TYPE *	vals
	)		const

inlineinherited

Definition at line 753 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getVariable() [1/2]

std::shared_ptr< Variable > AMP::LinearAlgebra::Vector::getVariable ( )

inherited

Get the variable associated with this vector.

Returns: A shared point to the Variable associated with this Vector

◆ getVariable() [2/2]

const std::shared_ptr< Variable > AMP::LinearAlgebra::Vector::getVariable ( ) const

inherited

Get the variable associated with this vector.

Returns: A shared point to the Variable associated with this Vector

◆ getVectorData() [1/2]

std::shared_ptr< VectorData > AMP::LinearAlgebra::Vector::getVectorData ( )

inlineinherited

Return the pointer to the VectorData.

Definition at line 412 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getVectorData() [2/2]

std::shared_ptr< const VectorData > AMP::LinearAlgebra::Vector::getVectorData ( ) const

inlineinherited

Return the pointer to the VectorData.

Definition at line 415 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ getVectorOperations() [1/2]

std::shared_ptr< VectorOperations > AMP::LinearAlgebra::Vector::getVectorOperations ( )

inlineinherited

Return the pointer to the VectorOperation.

Definition at line 418 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorOps.

◆ getVectorOperations() [2/2]

std::shared_ptr< const VectorOperations > AMP::LinearAlgebra::Vector::getVectorOperations ( ) const

inlineinherited

Return the pointer to the VectorOperation.

Definition at line 421 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorOps.

◆ getView()

template<typename VIEW_TYPE >

std::shared_ptr< VIEW_TYPE > AMP::LinearAlgebra::Vector::getView ( ) const

inherited

If a particular type of view of this Vector has been created, return it.

Template Parameters

VIEW_TYPE The type of view to look for

Returns: A view of this vector

◆ hasComm()

bool AMP::LinearAlgebra::Vector::hasComm ( ) const

inlineinherited

Definition at line 645 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ hasView()

template<typename VIEW_TYPE >

bool AMP::LinearAlgebra::Vector::hasView ( ) const

inherited

If a particular type of view of this Vector has been created, return true.

Template Parameters

VIEW_TYPE The type of view to look for

Returns: True if a view of this type has been created. False, otherwise.

◆ invtest_no_impl()

static booleantype AMP::LinearAlgebra::ManagedSundialsVector::invtest_no_impl	(	N_Vector	x,
		N_Vector	z
	)

staticprivate

◆ isType()

template<typename TYPE >

bool AMP::LinearAlgebra::Vector::isType ( size_t block ) const

inlineinherited

Definition at line 690 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData, and AMP::LinearAlgebra::Vector::type().

◆ L1Norm()

Scalar AMP::LinearAlgebra::Vector::L1Norm ( ) const

inherited

Return discrete \( L_1 \) -norm of this vector.

Returns

\[\sum_i |\mathit{this}_i|\]

◆ L1Norm_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::L1Norm_AMP ( N_Vector x )

staticprivate

◆ L2Norm()

Scalar AMP::LinearAlgebra::Vector::L2Norm ( ) const

inherited

Return discrete \( L_2 \) -norm of this vector.

Returns

\[\sqrt{\sum_i \mathit{this}_i^2}\]

◆ L2NormAndDot()

std::pair< Scalar, Scalar > AMP::LinearAlgebra::Vector::L2NormAndDot ( const Vector & x ) const

inherited

Return the L2 norm of this vector and the dot product with the argument vector.

Returns

\[\sum_i this_i^2 \]

and

\[\sum_i x_i\mathit{this}_i\]

. Note that this is an unoptimized version purely meant to provide functionality

Parameters

[in] x a vector

Returns: std::pair of L2Norm of vector and dot in that order

◆ linearSum()

void AMP::LinearAlgebra::Vector::linearSum	(	const Scalar &	alpha,
		const Vector &	x,
		const Scalar &	beta,
		const Vector &	y
	)

inherited

Set a vector to be a linear combination of two vectors. \(\mathit{this}_i = \alpha x_i + \beta y_i\).

Parameters

[in]	alpha	a scalar
[in]	x	a vector
[in]	beta	a scalar
[in]	y	a vector

◆ linearSum_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::linearSum_AMP	(	realtype	a,
		N_Vector	x,
		realtype	b,
		N_Vector	y,
		N_Vector	z
	)

staticprivate

◆ makeConsistent() [1/2]

void AMP::LinearAlgebra::Vector::makeConsistent ( )

inlineinherited

Definition at line 705 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ makeConsistent() [2/2]

void AMP::LinearAlgebra::Vector::makeConsistent ( AMP::LinearAlgebra::ScatterType t )

inlineinherited

Definition at line 706 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ max()

Scalar AMP::LinearAlgebra::Vector::max ( ) const

inherited

Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

◆ maxNorm()

Scalar AMP::LinearAlgebra::Vector::maxNorm ( ) const

inherited

Return the \( L_\infty \) -norm of this vector.

Returns

\[\max_i |\mathit{this}_i|\]

◆ maxNorm_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::maxNorm_AMP ( N_Vector x )

staticprivate

◆ mean()

Scalar AMP::LinearAlgebra::Vector::mean ( ) const

inherited

Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

◆ min()

Scalar AMP::LinearAlgebra::Vector::min ( ) const

inherited

Return the minimum value of the vector. \(\min_i \mathit{this}_i\).

◆ min_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::min_AMP ( N_Vector x )

staticprivate

◆ minQuotient()

Scalar AMP::LinearAlgebra::Vector::minQuotient ( const Vector & x ) const

inherited

Returns the minimum of the quotient of two vectors:

\[\min_{i,y_i\neq0} x_i/\mathit{this}_i\]

Parameters

[in] x a vector

Returns: \[\min_{i,y_i\neq0} x_i/\mathit{this}_i\]

◆ minquotient_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::minquotient_AMP	(	N_Vector	num,
		N_Vector	denom
	)

staticprivate

◆ multiply()

void AMP::LinearAlgebra::Vector::multiply	(	const Vector &	x,
		const Vector &	y
	)

inherited

Component-wise multiply one vector with another. For Vectors, \(\mathit{this}_i = x_i y_i\).

Parameters

[in]	x	Input vector x
[in]	y	Input vector y

◆ multiply_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::multiply_AMP	(	N_Vector	x,
		N_Vector	y,
		N_Vector	z
	)

staticprivate

◆ numberOfDataBlocks()

size_t AMP::LinearAlgebra::Vector::numberOfDataBlocks ( ) const

inlineinherited

Definition at line 648 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ operator=()

void AMP::LinearAlgebra::ManagedSundialsVector::operator= ( const ManagedSundialsVector & )

private

◆ putRawData()

template<class TYPE >

void AMP::LinearAlgebra::Vector::putRawData ( const TYPE * buf )

inlineinherited

Definition at line 654 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ rawClone()

std::unique_ptr< Vector > AMP::LinearAlgebra::ManagedSundialsVector::rawClone ( ) const

overridevirtual

Allocate space in the same fashion as this

This will allocate new space with identical layout as this.

Returns: A Vector shared pointer It will have the same number of blocks, each with the same engines and same number of entries.

Reimplemented from AMP::LinearAlgebra::Vector.

◆ reciprocal()

void AMP::LinearAlgebra::Vector::reciprocal ( const Vector & x )

inherited

Set this to the component-wise reciprocal of a vector. \(\mathit{this}_i = 1/x_i\).

Parameters

x a vector

◆ reciprocal_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::reciprocal_AMP	(	N_Vector	x,
		N_Vector	z
	)

staticprivate

◆ registerChildObjects()

virtual void AMP::LinearAlgebra::Vector::registerChildObjects ( AMP::IO::RestartManager * manager ) const

virtualinherited

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented in AMP::LinearAlgebra::MultiVector.

◆ registerView()

template<typename VIEW_TYPE >

void AMP::LinearAlgebra::Vector::registerView ( std::shared_ptr< VIEW_TYPE > v ) const

inherited

Add a view of this vector to an internal queue.

Parameters

[in] v The view to add

◆ rename()

virtual void AMP::LinearAlgebra::Vector::rename	(	const std::string &	src,
		const std::string &	dst
	)

virtualinherited

Renames.

Renames the vector and any components matching src to dst.

Parameters

[in]	src	The original variable name
[in]	dst	The new variable name

◆ reset()

virtual void AMP::LinearAlgebra::Vector::reset ( )

virtualinherited

Reset.

Reimplemented in AMP::LinearAlgebra::MultiVector.

◆ scale() [1/2]

void AMP::LinearAlgebra::Vector::scale ( const Scalar & alpha )

inherited

Scale a vector. For Vectors, \(\mathit{this}_i = \alpha\mathit{this}_i\).

Parameters

[in] alpha a scalar

◆ scale() [2/2]

void AMP::LinearAlgebra::Vector::scale	(	const Scalar &	alpha,
		const Vector &	x
	)

inherited

Set vector equal to scaled input. For Vectors, \(\mathit{this}_i = \alpha x_i\).

Parameters

[in]	alpha	a scalar
[in]	x	a vector

◆ scale_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::scale_AMP	(	realtype	c,
		N_Vector	x,
		N_Vector	z
	)

staticprivate

◆ select() [1/2]

shared_ptr AMP::LinearAlgebra::Vector::select ( const VectorSelector & criterion )

inherited

Selects a portion of this vector and creates a view.

Selects a portion of this vector and creates a view. This function does NOT always return a multivector. To use: auto disp = data->select( VS_ByVariableName( "displacement" ), "displacement view" );

Parameters

[in] criterion The method for deciding inclusion in the view

◆ select() [2/2]

const_shared_ptr AMP::LinearAlgebra::Vector::select ( const VectorSelector & criterion ) const

inherited

Selects a portion of this vector and creates a view.

Selects a portion of this vector and creates a view. This function does NOT always return a multivector. To use: auto disp = data->select( VS_ByVariableName( "displacement" ), "displacement view" );

Parameters

[in] criterion The method for deciding inclusion in the view

◆ selectInto() [1/2]

virtual Vector::shared_ptr AMP::LinearAlgebra::Vector::selectInto ( const VectorSelector & criterion )

virtualinherited

Selects a portion of this vector and puts a view into a vector.

Parameters

[in] criterion The method for deciding inclusion in the view

Reimplemented in AMP::LinearAlgebra::MultiVector.

◆ selectInto() [2/2]

virtual Vector::const_shared_ptr AMP::LinearAlgebra::Vector::selectInto ( const VectorSelector & criterion ) const

virtualinherited

Reimplemented in AMP::LinearAlgebra::MultiVector.

◆ setarraypointer_no_impl()

static void AMP::LinearAlgebra::ManagedSundialsVector::setarraypointer_no_impl	(	realtype *	v_data,
		N_Vector	v
	)

staticprivate

◆ setCommunicationList()

void AMP::LinearAlgebra::Vector::setCommunicationList ( std::shared_ptr< CommunicationList > comm )

inlineinherited

Definition at line 715 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setGhostValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::setGhostValuesByGlobalID	(	int	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 723 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setMax()

void AMP::LinearAlgebra::Vector::setMax ( const Scalar & val )

inherited

modify vector to have max value 'val' specified

◆ setMin()

void AMP::LinearAlgebra::Vector::setMin ( const Scalar & val )

inherited

modify vector to have min value 'val' specified

◆ setName()

void AMP::LinearAlgebra::Vector::setName ( const std::string & name )

inherited

Set the vector name.

◆ setNoGhosts()

void AMP::LinearAlgebra::Vector::setNoGhosts ( )

inlineinherited

Ensure this vector has no ghosts.

Calls clearBuffer for the communication list and removes any storage for ghosts

Definition at line 775 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setRandomValues()

void AMP::LinearAlgebra::Vector::setRandomValues ( )

inherited

Set data in this vector to random values on [0,1).

◆ setToScalar()

void AMP::LinearAlgebra::Vector::setToScalar ( const Scalar & alpha )

inherited

Set all compenents of a vector to a scalar. For Vectors, the components of this are set to \(\alpha\).

Parameters

[in] alpha scalar value

◆ setToScalar_AMP()

static void AMP::LinearAlgebra::ManagedSundialsVector::setToScalar_AMP	(	realtype	c,
		N_Vector	z
	)

staticprivate

◆ setUnits()

virtual void AMP::LinearAlgebra::Vector::setUnits ( AMP::Units )

virtualinherited

Get the units for this Vector.

◆ setUpdateStatus()

void AMP::LinearAlgebra::Vector::setUpdateStatus ( AMP::LinearAlgebra::UpdateState state )

inlineinherited

Definition at line 701 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setValueByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::setValueByGlobalID	(	size_t	i,
		TYPE	v
	)

inherited

Set a value in the vector.

Parameters

[in]	i	The global index into the vector
[in]	v	The value to set

This uses setValuesByGlobalID to set the value

◆ setValuesByGlobalID()

template<typename TYPE >

void AMP::LinearAlgebra::Vector::setValuesByGlobalID	(	int	num,
		const size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 733 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setValuesByLocalID()

template<class TYPE >

void AMP::LinearAlgebra::Vector::setValuesByLocalID	(	int	num,
		size_t *	indices,
		const TYPE *	vals
	)

inlineinherited

Definition at line 667 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ setVariable()

void AMP::LinearAlgebra::Vector::setVariable ( const std::shared_ptr< Variable > name )

inherited

Change the variable associated with this vector.

Parameters

[in] name The new variable

◆ shared_from_this() [1/2]

std::shared_ptr< Vector > AMP::enable_shared_from_this< Vector >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const Vector > AMP::enable_shared_from_this< Vector >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ sizeOfDataBlock()

size_t AMP::LinearAlgebra::Vector::sizeOfDataBlock ( size_t i = 0 ) const

inlineinherited

Definition at line 649 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ sizeofDataBlockType()

size_t AMP::LinearAlgebra::Vector::sizeofDataBlockType ( size_t i ) const

inlineinherited

Definition at line 685 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ subsetVectorForComponent() [1/2]

Vector::shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForComponent ( size_t index )

inherited

Retrieve ith subvector.

Returns the ith subvector based on teh number of components.

Parameters

[in] index Index to retrieve

Returns: A Vector shared pointer

◆ subsetVectorForComponent() [2/2]

Vector::const_shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForComponent ( size_t index ) const

inherited

Retrieve ith subvector.

Returns the ith subvector based on teh number of components.

Parameters

[in] index Index to retrieve

Returns: A Vector shared pointer

◆ subsetVectorForVariable() [1/4]

Vector::shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForVariable ( const std::string & name )

inherited

Retrieve a sub-vector associated with a particular Variable.

Parameters

[in] name Variable by which to retrieve a subvector

Returns: A Vector shared pointer

See also: MultiVector

◆ subsetVectorForVariable() [2/4]

Vector::const_shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForVariable ( const std::string & name ) const

inherited

Retrieve a sub-vector associated with a particular Variable.

Parameters

[in] name Variable by which to retrieve a subvector

Returns: A Vector shared pointer

A null pointer will be returned if the vector does not contain a sub-vector associated with the Variable

See also: MultiVector

◆ subsetVectorForVariable() [3/4]

Vector::shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForVariable ( std::shared_ptr< const Variable > var )

inherited

Retrieve a sub-vector associated with a particular Variable.

Parameters

[in] var Variable by which to retrieve a subvector

Returns: A Vector shared pointer

A null pointer will be returned if the vector does not contain a sub-vector associated with the Variable

See also: MultiVector

◆ subsetVectorForVariable() [4/4]

Vector::const_shared_ptr AMP::LinearAlgebra::Vector::subsetVectorForVariable ( std::shared_ptr< const Variable > var ) const

inherited

Retrieve a sub-vector associated with a particular Variable.

Parameters

[in] var Variable by which to retrieve a subvector

Returns: A Vector shared pointer

A null pointer will be returned if the vector does not contain a sub-vector associated with the Variable

See also: MultiVector

◆ subtract()

void AMP::LinearAlgebra::Vector::subtract	(	const Vector &	x,
		const Vector &	y
	)

inherited

Subtracts one vector from another. For Vectors, \(\mathit{this}_i = x_i - y_i\).

Parameters

[in]	x	Input vector x
[in]	y	Input vector y

◆ sum()

Scalar AMP::LinearAlgebra::Vector::sum ( ) const

inherited

Return the maximum value of the vector. \(\max_i \mathit{this}_i\).

◆ swapData()

void AMP::LinearAlgebra::Vector::swapData ( VectorData & rhs )

inlineinherited

Definition at line 695 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ swapVectors() [1/2]

void AMP::LinearAlgebra::ManagedSundialsVector::swapVectors ( Vector & other )

overridevirtual

Swap the data in this Vector for another.

Parameters

[in] other Vector to swap data with

Effectively, this is

Vector *a;
Vector *b;
std::swap ( a, b );

without a and b exchanging pointers.

Reimplemented from AMP::LinearAlgebra::Vector.

◆ swapVectors() [2/2]

void AMP::LinearAlgebra::Vector::swapVectors ( Vector::shared_ptr other )

inherited

Swap the data in this Vector for another.

Parameters

[in] other Vector to swap data with

A null pointer will be returned if the vector does not contain a sub-vector associated with the Variable. Effectively, this is

Vector *a;
Vector *b;
std::swap ( a, b );

without a and b exchanging pointers.

◆ type()

std::string AMP::LinearAlgebra::ManagedSundialsVector::type ( ) const

overridevirtual

Return the name of the vector.

Reimplemented from AMP::LinearAlgebra::Vector.

◆ VectorDataName()

std::string AMP::LinearAlgebra::Vector::VectorDataName ( ) const

inlineinherited

Definition at line 647 of file Vector.h.

References AMP::LinearAlgebra::Vector::d_VectorData.

◆ view()

static std::shared_ptr< SundialsVector > AMP::LinearAlgebra::SundialsVector::view ( Vector::shared_ptr AmpVector )

staticinherited

If needed, create a Sundials wrapper for AmpVector. Otherwise, return AmpVector.

The function attempts to return a view with the least amount of work. It will never copy data. If the vector cannot be wrapped it wll return an error.

Parameters

AmpVector a shared pointer to a Vector

◆ wl2norm_no_impl()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::wl2norm_no_impl	(	N_Vector	x,
		N_Vector	w
	)

staticprivate

◆ writeRestart()

virtual void AMP::LinearAlgebra::Vector::writeRestart ( int64_t fid ) const

virtualinherited

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::LinearAlgebra::MultiVector.

◆ wrmsNorm()

Scalar AMP::LinearAlgebra::Vector::wrmsNorm	(	const Vector &	x,
		const Vector &	y
	)		const

inherited

Return a weighted norm of a vector.

Parameters

[in]	x	a vector
[in]	y	a vector

Returns: \[\sqrt{\frac{\displaystyle \sum_i x^2_iy^2_i}{n}}\]

◆ WRMSNorm_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::WRMSNorm_AMP	(	N_Vector	x,
		N_Vector	w
	)

staticprivate

◆ wrmsNormMask()

Scalar AMP::LinearAlgebra::Vector::wrmsNormMask	(	const Vector &	x,
		const Vector &	mask,
		const Vector &	y
	)		const

inherited

Return a weighted norm of a subset of a vector.

Parameters

[in]	x	a vector
[in]	y	a vector
[in]	mask	a vector

Returns: \[\sqrt{\frac{\displaystyle \sum_{i,\mathit{mask}_i>0} x^2_iy^2_i}{n}}\]

◆ WRMSNormMask_AMP()

static realtype AMP::LinearAlgebra::ManagedSundialsVector::WRMSNormMask_AMP	(	N_Vector	x,
		N_Vector	w,
		N_Vector	mask
	)

staticprivate

◆ zero()

void AMP::LinearAlgebra::Vector::zero ( )

inherited

Set vector entries (including ghosts) to zero.

This is equivalent (but more efficient) to calling setToScalar ( 0.0 ) followed by a makeConsistent(SET)

Member Data Documentation

◆ d_DOFManager

std::shared_ptr<AMP::Discretization::DOFManager> AMP::LinearAlgebra::Vector::d_DOFManager

protectedinherited

Definition at line 865 of file Vector.h.

◆ d_n_vector

N_Vector AMP::LinearAlgebra::SundialsVector::d_n_vector

protectedinherited

Sundials NVector wrapping the data in the Vector.

However this is created, the N_Vector holds a pointer to the data used in the Vector in such a manner that is consistent with Sundials.

Definition at line 45 of file SundialsVector.h.

◆ d_units

AMP::Units AMP::LinearAlgebra::Vector::d_units

protectedinherited

Definition at line 863 of file Vector.h.

Referenced by AMP::LinearAlgebra::Vector::getUnits().

◆ d_Variable

std::shared_ptr<Variable> AMP::LinearAlgebra::Vector::d_Variable

protectedinherited

Definition at line 864 of file Vector.h.

◆ d_VectorData

std::shared_ptr<VectorData> AMP::LinearAlgebra::Vector::d_VectorData

protectedinherited

Definition at line 866 of file Vector.h.

◆ d_VectorOps

std::shared_ptr<VectorOperations> AMP::LinearAlgebra::Vector::d_VectorOps

protectedinherited

Definition at line 867 of file Vector.h.

Referenced by AMP::LinearAlgebra::Vector::copyVector(), AMP::LinearAlgebra::Vector::getVectorOperations(), and AMP::LinearAlgebra::Vector::getVectorOperations().

◆ d_Views

std::shared_ptr<std::vector<std::any> > AMP::LinearAlgebra::Vector::d_Views

protectedinherited

Definition at line 868 of file Vector.h.

◆ weak_ptr_

std::weak_ptr<Vector > AMP::enable_shared_from_this< Vector >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/vectors/sundials/ManagedSundialsVector.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Detailed Description

Member Typedef Documentation

◆ const_shared_ptr

◆ shared_ptr

Constructor & Destructor Documentation

◆ ManagedSundialsVector() [1/2]

◆ ~ManagedSundialsVector()

◆ ManagedSundialsVector() [2/2]

Member Function Documentation

◆ abs()

◆ abs_AMP()

◆ add()

◆ addGhostValuesByGlobalID()

◆ addScalar()

◆ addScalar_AMP()

◆ addValuesByGlobalID()

◆ addValuesByLocalID()

◆ axpby()

◆ axpy()

◆ begin() [1/2]

◆ begin() [2/2]

◆ clone() [1/3]

◆ clone() [2/3]

◆ clone() [3/3]

◆ clone_AMP()

◆ cloneData()

◆ cloneempty_no_impl()

◆ compare_no_impl()

◆ constBegin()

◆ constEnd()

◆ constrmask_no_impl()

◆ constView()

◆ containsGlobalElement()

◆ copy()

◆ copyCast()

◆ copyVector()

◆ createNVectorOps()

◆ dataChanged()

◆ divide()

◆ divide_AMP()

◆ dot()

◆ dot_AMP()

◆ dumpGhostedData()

◆ dumpOwnedData()

◆ end() [1/2]

◆ end() [2/2]

◆ equals()

◆ freeVectorComponents_AMP()

◆ getarraypointer_no_impl()

◆ getComm()

◆ getCommunicationList()

◆ getDataID()

◆ getDOFManager()

◆ getGhostSize()

◆ getGhostValueByGlobalID()

◆ getGhostValuesByGlobalID()

◆ getGlobalSize()

◆ getID()

◆ getLocalSize()

◆ getLocalStartID()

◆ getLocalValueByGlobalID()

◆ getManagedVec() [1/2]

◆ getManagedVec() [2/2]

◆ getMemoryLocation()

◆ getName()

◆ getNativeVec() [1/2]

◆ getNativeVec() [2/2]

◆ getNumberOfComponents()

◆ getNVector() [1/2]

◆ getNVector() [2/2]

◆ getRawData()

◆ getRawDataBlock() [1/2]

◆ getRawDataBlock() [2/2]

◆ getRawDataBlockAsVoid() [1/2]
