#include <MatrixData.h>

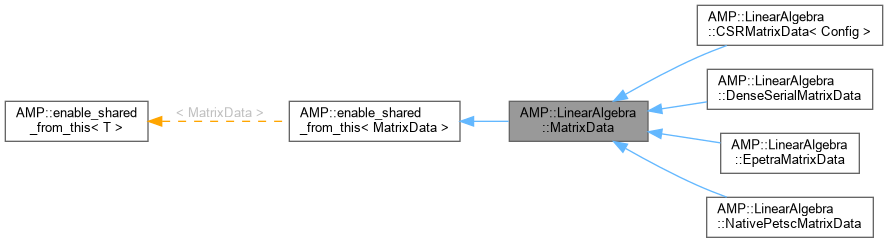

Inheritance diagram for AMP::LinearAlgebra::MatrixData:

[legend]

Public Member Functions
template<class TYPE >
void	addValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, const TYPE *values)
	Add values to those in the matrix.

virtual void	addValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, const void *values, const typeID &id)=0
	Add values to those in the matrix.

virtual size_t	beginCol () const
	Get the global id of first column in diagonal block.

virtual size_t	beginRow () const
	Get the global id of the beginning row.

virtual std::shared_ptr< MatrixData >	cloneMatrixData () const =0
	Clone the data.

virtual size_t	endCol () const
	Get the global id of last column in diagonal block.

virtual size_t	endRow () const
	Get the global id of the ending row.

virtual AMP::Utilities::Backend	getBackend () const
	Get the backend.

virtual typeID	getCoeffType () const =0
	Return the typeid of the matrix coeffs.

virtual std::vector< size_t >	getColumnIDs (size_t row) const =0
	Given a row, retrieve the non-zero column indices of the matrix in compressed format.

virtual AMP_MPI	getComm () const
	Get the comm.

uint64_t	getID () const
	Get a unique id hash for the vector.

virtual std::shared_ptr< Discretization::DOFManager >	getLeftDOFManager () const =0
	Get the DOFManager associated with a left vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{y}\) is a left vector )

virtual std::shared_ptr< Variable >	getLeftVariable () const
	Get the variable associated with a left vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{y}\) is a left vector )

virtual std::shared_ptr< Discretization::DOFManager >	getRightDOFManager () const =0
	Get the DOFManager associated with a right vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{x}\) is a right vector )

virtual std::shared_ptr< Variable >	getRightVariable () const
	Get the variable associated with a right vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{x}\) is a right vector )

virtual void	getRowByGlobalID (size_t row, std::vector< size_t > &cols, std::vector< double > &values) const =0
	Retrieve a row of the matrix in compressed format.

template<class TYPE >
void	getValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, TYPE *values) const
	Get values in the matrix.

virtual void	getValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, void *values, const typeID &id) const =0
	Get values in the matrix.

virtual void	makeConsistent (AMP::LinearAlgebra::ScatterType t)=0
	Perform communication to ensure values in the matrix are the same across cores.

	MatrixData ()
	Empty constructor.

	MatrixData (const MatrixData &)=delete
	Copy constructor.

	MatrixData (int64_t fid, AMP::IO::RestartManager *manager)

	MatrixData (std::shared_ptr< MatrixParametersBase > params)
	Constructor.

virtual std::uint16_t	mode () const
	Return CSR mode of the matrix.

virtual size_t	numberColumnIDs (size_t row) const =0
	Given a row, retrieve the number of non-zero column indices of the matrix.

virtual size_t	numGlobalColumns () const
	Get the number of global columns in the matrix.

virtual size_t	numGlobalRows () const
	Get the number of global rows in the matrix.

virtual size_t	numLocalColumns () const
	Get the number of local columns in the matrix.

virtual size_t	numLocalRows () const
	Get the number of local rows in the matrix.

virtual void	registerChildObjects (AMP::IO::RestartManager *manager) const
	Register any child objects.

virtual void	removeRange (AMP::Scalar bnd_lo, AMP::Scalar bnd_up)=0
	Remove matrix entries within given range.

virtual void	setBackend (AMP::Utilities::Backend backend)

template<class TYPE >
void	setValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, const TYPE *values)
	Set values in the matrix.

virtual void	setValuesByGlobalID (size_t num_rows, size_t num_cols, const size_t rows, const size_t cols, const void *values, const typeID &id)=0
	Set values in the matrix.

std::shared_ptr< MatrixData >	shared_from_this ()

std::shared_ptr< const MatrixData >	shared_from_this () const

virtual std::shared_ptr< MatrixData >	transpose () const =0
	Transpose.

virtual std::string	type () const =0
	Return the type of the matrix.

virtual void	writeRestart (int64_t fid) const
	Write restart data to file.

virtual	~MatrixData ()
	Destructor.

Protected Attributes
uint64_t	d_hash = 0

std::shared_ptr< MatrixParametersBase >	d_pParameters

std::weak_ptr< MatrixData >	weak_ptr_

Detailed Description

Definition at line 27 of file MatrixData.h.

Constructor & Destructor Documentation

◆ MatrixData() [1/4]

AMP::LinearAlgebra::MatrixData::MatrixData ( std::shared_ptr< MatrixParametersBase > params )

explicit

Constructor.

Parameters

[in] params Description of the matrix

◆ ~MatrixData()

virtual AMP::LinearAlgebra::MatrixData::~MatrixData ( )

virtual

Destructor.

◆ MatrixData() [2/4]

AMP::LinearAlgebra::MatrixData::MatrixData ( )

Empty constructor.

◆ MatrixData() [3/4]

AMP::LinearAlgebra::MatrixData::MatrixData ( const MatrixData & )

delete

Copy constructor.

◆ MatrixData() [4/4]

AMP::LinearAlgebra::MatrixData::MatrixData	(	int64_t	fid,
		AMP::IO::RestartManager *	manager
	)

Member Function Documentation

◆ addValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::MatrixData::addValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		const TYPE *	values
	)

Add values to those in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[in]	values	The values to add to the matrix (row-major ordering)

This method may fail if the matrix has not allocated a particular (row,col) specified, depending on the actual subclass of matrix used.

◆ addValuesByGlobalID() [2/2]

virtual void AMP::LinearAlgebra::MatrixData::addValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		const void *	values,
		const typeID &	id
	)

pure virtual

Add values to those in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[in]	values	The values to add to the matrix (row-major ordering)
[in]	id	typeID of raw data

This method may fail if the matrix has not allocated a particular (row,col) specified, depending on the actual subclass of matrix used.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::NativePetscMatrixData.

◆ beginCol()

virtual size_t AMP::LinearAlgebra::MatrixData::beginCol ( ) const

virtual

Get the global id of first column in diagonal block.

Returns: beginning global column id

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

◆ beginRow()

virtual size_t AMP::LinearAlgebra::MatrixData::beginRow ( ) const

virtual

Get the global id of the beginning row.

Returns: beginning global row id

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

◆ cloneMatrixData()

virtual std::shared_ptr< MatrixData > AMP::LinearAlgebra::MatrixData::cloneMatrixData ( ) const

pure virtual

Clone the data.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ endCol()

virtual size_t AMP::LinearAlgebra::MatrixData::endCol ( ) const

virtual

Get the global id of last column in diagonal block.

Returns: ending global column id

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

◆ endRow()

virtual size_t AMP::LinearAlgebra::MatrixData::endRow ( ) const

virtual

Get the global id of the ending row.

Returns: ending global row id

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

◆ getBackend()

virtual AMP::Utilities::Backend AMP::LinearAlgebra::MatrixData::getBackend ( ) const

inlinevirtual

Get the backend.

Definition at line 268 of file MatrixData.h.

References AMP_ASSERT, and d_pParameters.

◆ getCoeffType()

virtual typeID AMP::LinearAlgebra::MatrixData::getCoeffType ( ) const

pure virtual

Return the typeid of the matrix coeffs.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ getColumnIDs()

virtual std::vector< size_t > AMP::LinearAlgebra::MatrixData::getColumnIDs ( size_t row ) const

pure virtual

Given a row, retrieve the non-zero column indices of the matrix in compressed format.

Parameters

[in] row Which row

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::NativePetscMatrixData.

◆ getComm()

virtual AMP_MPI AMP::LinearAlgebra::MatrixData::getComm ( ) const

inlinevirtual

Get the comm.

Reimplemented in AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

Definition at line 261 of file MatrixData.h.

References AMP_ASSERT, and d_pParameters.

◆ getID()

uint64_t AMP::LinearAlgebra::MatrixData::getID ( ) const

Get a unique id hash for the vector.

◆ getLeftDOFManager()

virtual std::shared_ptr< Discretization::DOFManager > AMP::LinearAlgebra::MatrixData::getLeftDOFManager ( ) const

pure virtual

Get the DOFManager associated with a left vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{y}\) is a left vector )

Returns: The DOFManager associated with a left vector

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ getLeftVariable()

virtual std::shared_ptr< Variable > AMP::LinearAlgebra::MatrixData::getLeftVariable ( ) const

inlinevirtual

Get the variable associated with a left vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{y}\) is a left vector )

Returns: The variable associated with a left vector

Definition at line 215 of file MatrixData.h.

References d_pParameters.

◆ getRightDOFManager()

virtual std::shared_ptr< Discretization::DOFManager > AMP::LinearAlgebra::MatrixData::getRightDOFManager ( ) const

pure virtual

Get the DOFManager associated with a right vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{x}\) is a right vector )

Returns: The DOFManager associated with a right vector

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ getRightVariable()

virtual std::shared_ptr< Variable > AMP::LinearAlgebra::MatrixData::getRightVariable ( ) const

inlinevirtual

Get the variable associated with a right vector ( For \(\mathbf{y}^T\mathbf{Ax}\), \(\mathbf{x}\) is a right vector )

Returns: The variable associated with a right vector

Definition at line 205 of file MatrixData.h.

References d_pParameters.

◆ getRowByGlobalID()

virtual void AMP::LinearAlgebra::MatrixData::getRowByGlobalID	(	size_t	row,
		std::vector< size_t > &	cols,
		std::vector< double > &	values
	)		const

pure virtual

Retrieve a row of the matrix in compressed format.

Parameters

[in]	row	Which row
[out]	cols	The column ids of the returned values
[out]	values	The values in the row

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::NativePetscMatrixData.

◆ getValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::MatrixData::getValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		TYPE *	values
	)		const

Get values in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[out]	values	The values to get from the matrix (row-major ordering)

This method will return zero for any entries that have not been allocated or are not ghosts on the current processor.

◆ getValuesByGlobalID() [2/2]

virtual void AMP::LinearAlgebra::MatrixData::getValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		void *	values,
		const typeID &	id
	)		const

pure virtual

Get values in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[out]	values	The values to get from the matrix (row-major ordering)
[in]	id	typeID of raw data

This method will return zero for any entries that have not been allocated or are not ghosts on the current processor.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::NativePetscMatrixData.

◆ makeConsistent()

virtual void AMP::LinearAlgebra::MatrixData::makeConsistent ( AMP::LinearAlgebra::ScatterType t )

pure virtual

Perform communication to ensure values in the matrix are the same across cores.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::NativePetscMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::DenseSerialMatrixData.

◆ mode()

virtual std::uint16_t AMP::LinearAlgebra::MatrixData::mode ( ) const

inlinevirtual

Return CSR mode of the matrix.

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

Definition at line 57 of file MatrixData.h.

◆ numberColumnIDs()

virtual size_t AMP::LinearAlgebra::MatrixData::numberColumnIDs ( size_t row ) const

pure virtual

Given a row, retrieve the number of non-zero column indices of the matrix.

Parameters

[in] row Which row

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ numGlobalColumns()

virtual size_t AMP::LinearAlgebra::MatrixData::numGlobalColumns ( ) const

virtual

Get the number of global columns in the matrix.

Returns: The number of global columns

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ numGlobalRows()

virtual size_t AMP::LinearAlgebra::MatrixData::numGlobalRows ( ) const

virtual

Get the number of global rows in the matrix.

Returns: The number of global rows

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ numLocalColumns()

virtual size_t AMP::LinearAlgebra::MatrixData::numLocalColumns ( ) const

virtual

Get the number of local columns in the matrix.

Returns: The number of local columns

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ numLocalRows()

virtual size_t AMP::LinearAlgebra::MatrixData::numLocalRows ( ) const

virtual

Get the number of local rows in the matrix.

Returns: The number of local rows

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ registerChildObjects()

virtual void AMP::LinearAlgebra::MatrixData::registerChildObjects ( AMP::IO::RestartManager * manager ) const

virtual

Register any child objects.

This function will register child objects with the manager

Parameters

manager Restart manager

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

◆ removeRange()

virtual void AMP::LinearAlgebra::MatrixData::removeRange	(	AMP::Scalar	bnd_lo,
		AMP::Scalar	bnd_up
	)

pure virtual

Remove matrix entries within given range.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ setBackend()

virtual void AMP::LinearAlgebra::MatrixData::setBackend ( AMP::Utilities::Backend backend )

inlinevirtual

Definition at line 274 of file MatrixData.h.

References AMP_ASSERT, and d_pParameters.

◆ setValuesByGlobalID() [1/2]

template<class TYPE >

void AMP::LinearAlgebra::MatrixData::setValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		const TYPE *	values
	)

Set values in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[in]	values	The values to set to the matrix (row-major ordering)

This method may fail if the matrix has not allocated a particular (row,col) specified, depending on the actual subclass of matrix used.

◆ setValuesByGlobalID() [2/2]

virtual void AMP::LinearAlgebra::MatrixData::setValuesByGlobalID	(	size_t	num_rows,
		size_t	num_cols,
		const size_t *	rows,
		const size_t *	cols,
		const void *	values,
		const typeID &	id
	)

pure virtual

Set values in the matrix.

Parameters

[in]	num_rows	The number of rows represented in values
[in]	num_cols	The number of cols represented in values
[in]	rows	The row ids of values
[in]	cols	The column ids of values
[in]	values	The values to set to the matrix (row-major ordering)
[in]	id	typeID of raw data

This method may fail if the matrix has not allocated a particular (row,col) specified, depending on the actual subclass of matrix used.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::EpetraMatrixData, and AMP::LinearAlgebra::NativePetscMatrixData.

◆ shared_from_this() [1/2]

std::shared_ptr< MatrixData > AMP::enable_shared_from_this< MatrixData >::shared_from_this ( )

inlineinherited

Definition at line 28 of file enable_shared_from_this.h.

◆ shared_from_this() [2/2]

std::shared_ptr< const MatrixData > AMP::enable_shared_from_this< MatrixData >::shared_from_this ( ) const

inlineinherited

Definition at line 46 of file enable_shared_from_this.h.

◆ transpose()

virtual std::shared_ptr< MatrixData > AMP::LinearAlgebra::MatrixData::transpose ( ) const

pure virtual

Transpose.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ type()

virtual std::string AMP::LinearAlgebra::MatrixData::type ( ) const

pure virtual

Return the type of the matrix.

Implemented in AMP::LinearAlgebra::CSRMatrixData< Config >, AMP::LinearAlgebra::DenseSerialMatrixData, AMP::LinearAlgebra::NativePetscMatrixData, and AMP::LinearAlgebra::EpetraMatrixData.

◆ writeRestart()

virtual void AMP::LinearAlgebra::MatrixData::writeRestart ( int64_t fid ) const

virtual

Write restart data to file.

This function will write the mesh to an HDF5 file

Parameters

fid	File identifier to write

Reimplemented in AMP::LinearAlgebra::CSRMatrixData< Config >.

Member Data Documentation

◆ d_hash

uint64_t AMP::LinearAlgebra::MatrixData::d_hash = 0

protected

Definition at line 311 of file MatrixData.h.

◆ d_pParameters

std::shared_ptr<MatrixParametersBase> AMP::LinearAlgebra::MatrixData::d_pParameters

protected

Definition at line 308 of file MatrixData.h.

Referenced by getBackend(), getComm(), getLeftVariable(), getRightVariable(), and setBackend().

◆ weak_ptr_

std::weak_ptr<MatrixData > AMP::enable_shared_from_this< MatrixData >::weak_ptr_

mutableprotectedinherited

Definition at line 69 of file enable_shared_from_this.h.

The documentation for this class was generated from the following file:

src/matrices/data/MatrixData.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MatrixData() [1/4]

◆ ~MatrixData()

◆ MatrixData() [2/4]

◆ MatrixData() [3/4]

◆ MatrixData() [4/4]

Member Function Documentation

◆ addValuesByGlobalID() [1/2]

◆ addValuesByGlobalID() [2/2]

◆ beginCol()

◆ beginRow()

◆ cloneMatrixData()

◆ endCol()

◆ endRow()

◆ getBackend()

◆ getCoeffType()

◆ getColumnIDs()

◆ getComm()

◆ getID()

◆ getLeftDOFManager()

◆ getLeftVariable()

◆ getRightDOFManager()

◆ getRightVariable()

◆ getRowByGlobalID()

◆ getValuesByGlobalID() [1/2]

◆ getValuesByGlobalID() [2/2]

◆ makeConsistent()

◆ mode()

◆ numberColumnIDs()

◆ numGlobalColumns()

◆ numGlobalRows()

◆ numLocalColumns()

◆ numLocalRows()

◆ registerChildObjects()

◆ removeRange()

◆ setBackend()

◆ setValuesByGlobalID() [1/2]

◆ setValuesByGlobalID() [2/2]

◆ shared_from_this() [1/2]

◆ shared_from_this() [2/2]

◆ transpose()

◆ type()

◆ writeRestart()

Member Data Documentation

◆ d_hash

◆ d_pParameters

◆ weak_ptr_
