AMP::Operator::MechanicsLinearFEOperatorParameters Class Reference

#include <MechanicsLinearFEOperatorParameters.h>

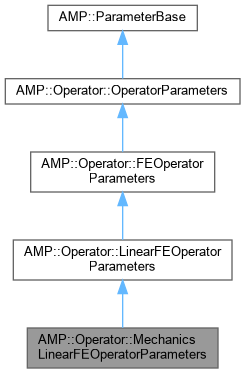

Inheritance diagram for AMP::Operator::MechanicsLinearFEOperatorParameters:

Public Types
typedef std::shared_ptr< ParameterBase >	shared_ptr

Public Member Functions
	MechanicsLinearFEOperatorParameters (std::shared_ptr< AMP::Database > db)
virtual	~MechanicsLinearFEOperatorParameters ()

Public Attributes
std::shared_ptr< AMP::Database >	d_db
AMP::LinearAlgebra::Vector::shared_ptr	d_dispVec
std::shared_ptr< ElementOperation >	d_elemOp
std::shared_ptr< AMP::Discretization::DOFManager >	d_inDofMap
std::shared_ptr< MechanicsMaterialModel >	d_materialModel
std::shared_ptr< AMP::Mesh::Mesh >	d_Mesh
	Optional mesh for the operator.
std::string	d_name
std::shared_ptr< AMP::Discretization::DOFManager >	d_outDofMap
std::shared_ptr< AMP::Operator::Operator >	d_pOperator
	Allow for the case that a fully constructed operator is returned.

Detailed Description

This class encapsulates parameters used to initialize or reset the MechanicsLinearFEOperator.

See also

MechanicsLinearFEOperator

Definition at line 17 of file MechanicsLinearFEOperatorParameters.h.

Member Typedef Documentation

shared_ptr

typedef std::shared_ptr<ParameterBase> AMP::ParameterBase::shared_ptr

inherited

Definition at line 18 of file ParameterBase.h.

Constructor & Destructor Documentation

MechanicsLinearFEOperatorParameters()

AMP::Operator::MechanicsLinearFEOperatorParameters::MechanicsLinearFEOperatorParameters ( std::shared_ptr< AMP::Database >  db )

inlineexplicit

Constructor.

Definition at line 23 of file MechanicsLinearFEOperatorParameters.h.

~MechanicsLinearFEOperatorParameters()

virtual AMP::Operator::MechanicsLinearFEOperatorParameters::~MechanicsLinearFEOperatorParameters ( )

inlinevirtual

Destructor.

Definition at line 31 of file MechanicsLinearFEOperatorParameters.h.

Member Data Documentation

d_db

std::shared_ptr<AMP::Database> AMP::ParameterBase::d_db

inherited

Definition at line 27 of file ParameterBase.h.

d_dispVec

AMP::LinearAlgebra::Vector::shared_ptr AMP::Operator::MechanicsLinearFEOperatorParameters::d_dispVec

Displacement vector, which is passed from MechanicsNonlinearFEOperator to MechanicsLinearFEOperator.

Definition at line 36 of file MechanicsLinearFEOperatorParameters.h.

d_elemOp

std::shared_ptr<ElementOperation> AMP::Operator::FEOperatorParameters::d_elemOp

inherited

Shared pointer to an element operation

Definition at line 29 of file FEOperatorParameters.h.

d_inDofMap

std::shared_ptr<AMP::Discretization::DOFManager> AMP::Operator::LinearFEOperatorParameters::d_inDofMap

inherited

Definition at line 26 of file LinearFEOperatorParameters.h.

d_materialModel

std::shared_ptr<MechanicsMaterialModel> AMP::Operator::MechanicsLinearFEOperatorParameters::d_materialModel

Material model.

Definition at line 33 of file MechanicsLinearFEOperatorParameters.h.

d_Mesh

std::shared_ptr<AMP::Mesh::Mesh> AMP::Operator::OperatorParameters::d_Mesh

inherited

Optional mesh for the operator.

Definition at line 39 of file OperatorParameters.h.

d_name

std::string AMP::ParameterBase::d_name

inherited

Definition at line 25 of file ParameterBase.h.

d_outDofMap

std::shared_ptr<AMP::Discretization::DOFManager> AMP::Operator::LinearFEOperatorParameters::d_outDofMap

inherited

Definition at line 27 of file LinearFEOperatorParameters.h.

d_pOperator

std::shared_ptr<AMP::Operator::Operator> AMP::Operator::OperatorParameters::d_pOperator

inherited

Allow for the case that a fully constructed operator is returned.

Definition at line 42 of file OperatorParameters.h.

---

The documentation for this class was generated from the following file:

• src/operators/mechanics/MechanicsLinearFEOperatorParameters.h
