A class used to reduce a 3D problem to 1D, transfer the solution, and map back to 3D. More...

#include <StridedZAxisMap.h>

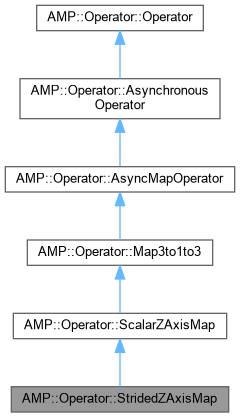

Inheritance diagram for AMP::Operator::StridedZAxisMap:

[legend]

Public Types
typedef ScalarZAxisMapParameters	Parameters
	Typedef to identify the parameters class of this operator.

typedef std::shared_ptr< AMP::Operator::Operator >	shared_ptr

Public Member Functions
void	apply (AMP::LinearAlgebra::Vector::const_shared_ptr u, AMP::LinearAlgebra::Vector::shared_ptr f) override
	Apply operation.

virtual void	apply (std::shared_ptr< const AMP::LinearAlgebra::Vector > u, std::shared_ptr< AMP::LinearAlgebra::Vector > f)=0

void	applyFinish (AMP::LinearAlgebra::Vector::const_shared_ptr u, AMP::LinearAlgebra::Vector::shared_ptr f) override
	Finish a communicative apply operation.

void	applyStart (AMP::LinearAlgebra::Vector::const_shared_ptr u, AMP::LinearAlgebra::Vector::shared_ptr f) override
	Start a communicative apply operation.

virtual std::shared_ptr< AMP::LinearAlgebra::Vector >	createInputVector () const
	Get a input vector ( For \(\mathbf{A(x)}\), \(\mathbf{x}\) is a input vector )

virtual std::shared_ptr< AMP::LinearAlgebra::Vector >	createOutputVector () const
	Get a left vector ( For \(\mathbf{y=A(x)}\), \(\mathbf{y}\) is an output vector )

std::shared_ptr< AMP::LinearAlgebra::Variable >	getInputVariable () const override
	Return the input variable.

AMP::Utilities::MemoryType	getMemoryLocation () const

std::shared_ptr< AMP::Mesh::Mesh >	getMesh ()
	Return the mesh.

std::shared_ptr< const AMP::Mesh::Mesh >	getMesh () const
	Return the mesh.

std::shared_ptr< AMP::Mesh::Mesh >	getMesh (int which)

std::shared_ptr< AMP::LinearAlgebra::Variable >	getOutputVariable () const override
	Return the output variable.

virtual std::shared_ptr< OperatorParameters >	getParameters (const std::string &type, std::shared_ptr< const AMP::LinearAlgebra::Vector > u, std::shared_ptr< OperatorParameters > params=nullptr)

virtual bool	isValidVector (std::shared_ptr< const AMP::LinearAlgebra::Vector >)
	given a vector return whether it is valid or not

virtual void	makeConsistent (std::shared_ptr< AMP::LinearAlgebra::Vector > vec)

virtual void	reInitializeVector (std::shared_ptr< AMP::LinearAlgebra::Vector >)

virtual bool	requiresMakeConsistentSet ()

virtual void	reset (std::shared_ptr< const OperatorParameters > params)

virtual void	residual (std::shared_ptr< const AMP::LinearAlgebra::Vector > f, std::shared_ptr< const AMP::LinearAlgebra::Vector > u, std::shared_ptr< AMP::LinearAlgebra::Vector > r)

virtual std::shared_ptr< AMP::LinearAlgebra::VectorSelector >	selectInputVector () const
	Return the selector for input vectors.

virtual std::shared_ptr< AMP::LinearAlgebra::VectorSelector >	selectOutputVector () const
	Return the selector for output vectors.

virtual void	setDebugPrintInfoLevel (int level)

void	setVector (AMP::LinearAlgebra::Vector::shared_ptr p) override
	Set a frozen vector for results of the apply operation.

	StridedZAxisMap (std::shared_ptr< const AMP::Operator::OperatorParameters > params)
	Standard constructor.

std::shared_ptr< AMP::LinearAlgebra::Vector >	subsetInputVector (std::shared_ptr< AMP::LinearAlgebra::Vector > vec) const
	Subset input vector.

std::shared_ptr< const AMP::LinearAlgebra::Vector >	subsetInputVector (std::shared_ptr< const AMP::LinearAlgebra::Vector > vec) const
	Subset input vector.

std::shared_ptr< AMP::LinearAlgebra::Vector >	subsetOutputVector (std::shared_ptr< AMP::LinearAlgebra::Vector > vec) const
	Subset output vector.

std::shared_ptr< const AMP::LinearAlgebra::Vector >	subsetOutputVector (std::shared_ptr< const AMP::LinearAlgebra::Vector > vec) const
	Subset output vector.

std::string	type () const override
	Return the name of the operator.

virtual	~StridedZAxisMap ()
	Destructor.

Static Public Member Functions
static bool	validMapType (const std::string &s)
	Returns true if MapType = "ScalarZAxis".

Static Public Attributes
static const int	CommTagBase = 20000
	The base tag used in communication.

Protected Member Functions
void	addTo1DMap (std::multimap< double, double > &map, const std::vector< double > &z, const std::vector< double > &val)
	Add an ordered pair to the set of interpolant values.

void	addTo1DMap (std::multimap< double, double > &map, double z, double val)
	Add an ordered pair to the set of interpolant values.

std::vector< AMP_MPI::Request >::iterator	beginRequests ()
	Return an iterator to the first MPI_Request.

virtual std::multimap< double, double >	buildMap (AMP::LinearAlgebra::Vector::const_shared_ptr, const std::shared_ptr< AMP::Mesh::Mesh >, const AMP::Mesh::MeshIterator &) override
	A virtual method to construct the map from a vector.

virtual void	buildReturn (AMP::LinearAlgebra::Vector::shared_ptr, const std::shared_ptr< AMP::Mesh::Mesh >, const AMP::Mesh::MeshIterator &, const std::map< double, double > &) override
	A virtual method to construct a vector from a map.

void	clearRequests ()
	Clear requests.

std::vector< AMP_MPI::Request >::iterator	endRequests ()
	Return an iterator to one past the end of the list of requests.

void	getBackendFromInput (std::shared_ptr< AMP::Database > db)

template<typename T >
const T *	getBufferToAvoidDebugVectorCrashing (const std::vector< T > &in)
	Functions to allow std::vector to be used in MPI communications when empty.

template<typename T >
T *	getBufferToAvoidDebugVectorCrashing (std::vector< T > &in)
	Functions to allow std::vector to be used in MPI communications when empty.

virtual std::shared_ptr< OperatorParameters >	getJacobianParameters (std::shared_ptr< const AMP::LinearAlgebra::Vector >)

AMP_MPI::Request &	getRequest (size_t i)
	Return a specific MPI_Request.

void	reserveRequests (size_t i)
	Reserve a number of MPI_Requests for use.

void	setMemoryAndBackendParameters (std::shared_ptr< AMP::Database > db)

void	waitForAllRequests ()
	Wait for all requests to complete.

Protected Attributes
AMP::Utilities::Backend	d_backend = AMP::Utilities::Backend::Serial

std::shared_ptr< AMP::Discretization::DOFManager >	d_DOFManager

AMP::Mesh::MeshIterator	d_dstIterator1

AMP::Mesh::MeshIterator	d_dstIterator2

int	d_iDebugPrintInfoLevel = 0

int	d_inpDofs

int	d_inpStride

std::shared_ptr< AMP::LinearAlgebra::Variable >	d_inpVariable

int	d_iObject_id

AMP_MPI	d_MapComm

AMP::Utilities::MemoryType	d_memory_location = AMP::Utilities::MemoryType::none

std::shared_ptr< AMP::Mesh::Mesh >	d_Mesh

std::shared_ptr< AMP::Mesh::Mesh >	d_mesh1

std::shared_ptr< AMP::Mesh::Mesh >	d_mesh2

int	d_outDofs

AMP::LinearAlgebra::Vector::shared_ptr	d_OutputVector

int	d_outStride

std::shared_ptr< AMP::LinearAlgebra::Variable >	d_outVariable

std::vector< AMP_MPI::Request >	d_RequestList
	A list of MPI_Requests for use in derived classes.

AMP::Mesh::MeshIterator	d_srcIterator1
	Iterators over the nodes on the boundary.

AMP::Mesh::MeshIterator	d_srcIterator2

Static Protected Attributes
static int	d_iInstance_id

Static Private Member Functions
static void	unpackBuffer (const std::vector< comm_data > &, std::map< double, std::pair< int, double > > &)

Private Attributes
int	d_commTag
	The tag used for communication.

std::vector< bool >	d_own_mesh1
	A list of processors that own each mesh.

std::vector< bool >	d_own_mesh2

AMP::LinearAlgebra::Vector::shared_ptr	d_ResultVector
	The place to put the mapped values.

std::vector< comm_data >	d_SendBuf1
	The buffer used to perform the asynchronous communication.

std::vector< comm_data >	d_SendBuf2

Detailed Description

A class used to reduce a 3D problem to 1D, transfer the solution, and map back to 3D.

This class inherites from ScalarZAxisMap, and performs a reduction from 3D to 1D, transfers the solution, then maps back to 3D. It inherites entire functionality from ScalarZAxis except that the you need to do a subset and stride to pass the correct vector to the base class.

Definition at line 21 of file StridedZAxisMap.h.

Member Typedef Documentation

◆ Parameters

typedef ScalarZAxisMapParameters AMP::Operator::ScalarZAxisMap::Parameters

inherited

Typedef to identify the parameters class of this operator.

Definition at line 33 of file ScalarZAxisMap.h.

◆ shared_ptr

typedef std::shared_ptr<AMP::Operator::Operator> AMP::Operator::Operator::shared_ptr

inherited

Definition at line 29 of file Operator.h.

Constructor & Destructor Documentation

◆ StridedZAxisMap()

AMP::Operator::StridedZAxisMap::StridedZAxisMap ( std::shared_ptr< const AMP::Operator::OperatorParameters > params )

explicit

Standard constructor.

Parameters

[in] params Input parameters

◆ ~StridedZAxisMap()

virtual AMP::Operator::StridedZAxisMap::~StridedZAxisMap ( )

virtual

Destructor.

Member Function Documentation

◆ addTo1DMap() [1/2]

void AMP::Operator::Map3to1to3::addTo1DMap	(	std::multimap< double, double > &	map,
		const std::vector< double > &	z,
		const std::vector< double > &	val
	)

protectedinherited

Add an ordered pair to the set of interpolant values.

Parameters

	map	The map to add the point to
[in]	z	The ordinate
[in]	val	The abscissa

◆ addTo1DMap() [2/2]

void AMP::Operator::Map3to1to3::addTo1DMap	(	std::multimap< double, double > &	map,
		double	z,
		double	val
	)

protectedinherited

Add an ordered pair to the set of interpolant values.

Parameters

	map	The map to add the point to
[in]	z	The ordinate
[in]	val	The abscissa

◆ apply() [1/2]

void AMP::Operator::StridedZAxisMap::apply	(	AMP::LinearAlgebra::Vector::const_shared_ptr	u,
		AMP::LinearAlgebra::Vector::shared_ptr	f
	)

overridevirtual

Apply operation.

The apply opertion for an asyncronous operator simply calls applyStart and applyFinish.

Parameters

[in]	u	An input vector
[out]	f	An output vector

Reimplemented from AMP::Operator::AsyncMapOperator.

◆ apply() [2/2]

virtual void AMP::Operator::Operator::apply	(	std::shared_ptr< const AMP::LinearAlgebra::Vector >	u,
		std::shared_ptr< AMP::LinearAlgebra::Vector >	f
	)

pure virtualinherited

This base class can not give a meaningful definition of apply. See the derived classes for how they define apply. Each operator is free to define apply in a way that is appropriate for that operator.

Parameters

u	shared pointer to const input vector u
f	shared pointer to output vector storing result of applying this operator

Implemented in AMP::Operator::RadDifOp, AMP::Operator::RadDifOpPJac, AMP::Operator::FunctionOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

◆ applyFinish()

void AMP::Operator::Map3to1to3::applyFinish	(	AMP::LinearAlgebra::Vector::const_shared_ptr	u,
		AMP::LinearAlgebra::Vector::shared_ptr	f
	)

overridevirtualinherited

Finish a communicative apply operation.

Implements AMP::Operator::AsynchronousOperator.

◆ applyStart()

void AMP::Operator::Map3to1to3::applyStart	(	AMP::LinearAlgebra::Vector::const_shared_ptr	u,
		AMP::LinearAlgebra::Vector::shared_ptr	f
	)

overridevirtualinherited

Start a communicative apply operation.

Implements AMP::Operator::AsynchronousOperator.

◆ beginRequests()

std::vector< AMP_MPI::Request >::iterator AMP::Operator::AsynchronousOperator::beginRequests ( )

protectedinherited

Return an iterator to the first MPI_Request.

Returns: The iterator

◆ buildMap()

virtual std::multimap< double, double > AMP::Operator::ScalarZAxisMap::buildMap	(	AMP::LinearAlgebra::Vector::const_shared_ptr	vec,
		const std::shared_ptr< AMP::Mesh::Mesh >	mesh,
		const AMP::Mesh::MeshIterator &	it
	)

overrideprotectedvirtualinherited

A virtual method to construct the map from a vector.

This function constructs the map from a given vector. The inherited class must implement this function

Parameters

[in]	vec	The vector to be used to construct the map
[in]	mesh	The meshused to construct the map
[in]	it	The iterator over the boundary used for the map

Reimplemented from AMP::Operator::Map3to1to3.

◆ buildReturn()

virtual void AMP::Operator::ScalarZAxisMap::buildReturn	(	AMP::LinearAlgebra::Vector::shared_ptr	vec,
		const std::shared_ptr< AMP::Mesh::Mesh >	mesh,
		const AMP::Mesh::MeshIterator &	it,
		const std::map< double, double > &	map
	)

overrideprotectedvirtualinherited

A virtual method to construct a vector from a map.

This function constructs a vector from the map. The inherited class must implement this function

Parameters

[out]	vec	The vector to be used to construct the map
[in]	mesh	The mesh used to construct the map
[in]	it	The iterator over the boundary used for the map
[in]	map	The map containing all of the points

Reimplemented from AMP::Operator::Map3to1to3.

◆ clearRequests()

void AMP::Operator::AsynchronousOperator::clearRequests ( )

protectedinherited

Clear requests.

◆ createInputVector()

virtual std::shared_ptr< AMP::LinearAlgebra::Vector > AMP::Operator::Operator::createInputVector ( ) const

virtualinherited

Get a input vector ( For \(\mathbf{A(x)}\), \(\mathbf{x}\) is a input vector )

Returns: A newly created input vector

Reimplemented in AMP::Operator::IdentityOperator, AMP::Operator::LinearOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, AMP::Operator::MemorySpaceMigrationOperator, AMP::Operator::BDFRadDifOpPJac, AMP::Operator::RadDifOp, and AMP::Operator::RadDifOpPJac.

◆ createOutputVector()

virtual std::shared_ptr< AMP::LinearAlgebra::Vector > AMP::Operator::Operator::createOutputVector ( ) const

virtualinherited

Get a left vector ( For \(\mathbf{y=A(x)}\), \(\mathbf{y}\) is an output vector )

Returns: A newly created output vector

Reimplemented in AMP::Operator::IdentityOperator, AMP::Operator::LinearOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

◆ endRequests()

std::vector< AMP_MPI::Request >::iterator AMP::Operator::AsynchronousOperator::endRequests ( )

protectedinherited

Return an iterator to one past the end of the list of requests.

Returns: The iterator

◆ getBackendFromInput()

void AMP::Operator::Operator::getBackendFromInput ( std::shared_ptr< AMP::Database > db )

protectedinherited

◆ getBufferToAvoidDebugVectorCrashing() [1/2]

template<typename T >

const T * AMP::Operator::AsynchronousOperator::getBufferToAvoidDebugVectorCrashing ( const std::vector< T > & in )

inlineprotectedinherited

Functions to allow std::vector to be used in MPI communications when empty.

Template Parameters

T	The type of buffer to translate

Parameters

[in] in Buffer in a std::vector

Returns: Buffer of type T

Definition at line 73 of file AsynchronousOperator.h.

◆ getBufferToAvoidDebugVectorCrashing() [2/2]

template<typename T >

T * AMP::Operator::AsynchronousOperator::getBufferToAvoidDebugVectorCrashing ( std::vector< T > & in )

inlineprotectedinherited

Functions to allow std::vector to be used in MPI communications when empty.

Template Parameters

T	The type of buffer to translate

Parameters

[in] in Buffer in a std::vector

Returns: Buffer of type T

Definition at line 59 of file AsynchronousOperator.h.

◆ getInputVariable()

std::shared_ptr< AMP::LinearAlgebra::Variable > AMP::Operator::AsyncMapOperator::getInputVariable ( ) const

inlineoverridevirtualinherited

Return the input variable.

Reimplemented from AMP::Operator::Operator.

Definition at line 47 of file AsyncMapOperator.h.

References AMP::Operator::AsyncMapOperator::d_inpVariable.

◆ getJacobianParameters()

virtual std::shared_ptr< OperatorParameters > AMP::Operator::Operator::getJacobianParameters ( std::shared_ptr< const AMP::LinearAlgebra::Vector > )

inlineprotectedvirtualinherited

This function returns a OperatorParameters object constructed by the operator which contains parameters from which new Jacobian operators can be created. Returning a parameter object instead of an Operator itself is meant to give users more flexibility.

Definition at line 180 of file Operator.h.

◆ getMemoryLocation()

AMP::Utilities::MemoryType AMP::Operator::Operator::getMemoryLocation ( ) const

inlineinherited

Definition at line 89 of file Operator.h.

References AMP::Operator::Operator::d_memory_location.

◆ getMesh() [1/3]

std::shared_ptr< AMP::Mesh::Mesh > AMP::Operator::Operator::getMesh ( )

inlineinherited

Return the mesh.

Definition at line 149 of file Operator.h.

References AMP::Operator::Operator::d_Mesh.

◆ getMesh() [2/3]

std::shared_ptr< const AMP::Mesh::Mesh > AMP::Operator::Operator::getMesh ( ) const

inlineinherited

Return the mesh.

Definition at line 152 of file Operator.h.

References AMP::Operator::Operator::d_Mesh.

◆ getMesh() [3/3]

std::shared_ptr< AMP::Mesh::Mesh > AMP::Operator::AsyncMapOperator::getMesh ( int which )

inherited

Get the meshes this map uses.

Parameters

[in] which 1 for d_mesh1 and 2 for d_mesh2

◆ getOutputVariable()

std::shared_ptr< AMP::LinearAlgebra::Variable > AMP::Operator::AsyncMapOperator::getOutputVariable ( ) const

inlineoverridevirtualinherited

Return the output variable.

Reimplemented from AMP::Operator::Operator.

Definition at line 51 of file AsyncMapOperator.h.

References AMP::Operator::AsyncMapOperator::d_outVariable.

◆ getParameters()

virtual std::shared_ptr< OperatorParameters > AMP::Operator::Operator::getParameters	(	const std::string &	type,
		std::shared_ptr< const AMP::LinearAlgebra::Vector >	u,
		std::shared_ptr< OperatorParameters >	params = `nullptr`
	)

virtualinherited

This function returns a OperatorParameters object constructed by the operator which contains parameters from which new operators can be created. Returning a parameter object instead of an Operator itself is meant to give users more flexibility. Examples of how this functionality might be used would be the construction of Jacobian, frozen Jacobian, preconditioner approximations to the Jacobian, adjoint operators etc

Parameters

type	std:string specifying type of return operator parameters being requested. Currently the valid option is Jacobian
u	const pointer to current solution vector
params	pointer to additional parameters that might be required to construct the return parameters

Reimplemented in AMP::Operator::IdentityOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

◆ getRequest()

AMP_MPI::Request & AMP::Operator::AsynchronousOperator::getRequest ( size_t i )

protectedinherited

Return a specific MPI_Request.

Returns: The request

◆ isValidVector()

virtual bool AMP::Operator::Operator::isValidVector ( std::shared_ptr< const AMP::LinearAlgebra::Vector > )

inlinevirtualinherited

given a vector return whether it is valid or not

Reimplemented in AMP::Operator::BDFRadDifOp, AMP::Operator::RadDifOp, AMP::Operator::ColumnOperator, AMP::Operator::CoupledOperator, AMP::TimeIntegrator::TimeOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

Definition at line 146 of file Operator.h.

◆ makeConsistent()

virtual void AMP::Operator::Operator::makeConsistent ( std::shared_ptr< AMP::LinearAlgebra::Vector > vec )

virtualinherited

virtual interface used to make a vector consistent in an operator defined way. An example of where an operator is required to make a vector consistent is in the context of AMR where ghost values on coarse-fine interfaces are filled in an operator dependent way. The default implementation is to simply call the vector makeConsistent(SET)

Reimplemented in AMP::Operator::MemorySpaceMigrationLinearOperator, AMP::Operator::MemorySpaceMigrationOperator, and AMP::TimeIntegrator::TimeOperator.

◆ reInitializeVector()

virtual void AMP::Operator::Operator::reInitializeVector ( std::shared_ptr< AMP::LinearAlgebra::Vector > )

inlinevirtualinherited

re-initialize a vector, e.g. after a regrid operation has happened. This is useful for example when numerical overshoots or undershoots have happened due to interpolation for example The default is a null op

Reimplemented in AMP::TimeIntegrator::TimeOperator, AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

Definition at line 167 of file Operator.h.

◆ requiresMakeConsistentSet()

virtual bool AMP::Operator::AsyncMapOperator::requiresMakeConsistentSet ( )

virtualinherited

Reimplemented in AMP::Operator::NodeToNodeMap.

◆ reserveRequests()

void AMP::Operator::AsynchronousOperator::reserveRequests ( size_t i )

protectedinherited

Reserve a number of MPI_Requests for use.

Parameters

[in] i The number of MPI_Requests that will be used

◆ reset()

virtual void AMP::Operator::Operator::reset ( std::shared_ptr< const OperatorParameters > params )

virtualinherited

This function is useful for re-initializing/updating an operator

Parameters

params parameter object containing parameters to change

Referenced by AMP::Operator::FirstOperator::FirstOperator(), and AMP::Operator::SecondOperator::SecondOperator().

◆ residual()

virtual void AMP::Operator::Operator::residual	(	std::shared_ptr< const AMP::LinearAlgebra::Vector >	f,
		std::shared_ptr< const AMP::LinearAlgebra::Vector >	u,
		std::shared_ptr< AMP::LinearAlgebra::Vector >	r
	)

virtualinherited

Default base class implementation of the residual: f-L(u)

Parameters

f	shared pointer to const vector rhs
u	shared pointer to const vector u
r	shared pointer to vector residual

Reimplemented in AMP::Solver::AMG::HasDeferConsistency< AMP::Operator::LinearOperator >, AMP::Operator::MemorySpaceMigrationLinearOperator, AMP::Operator::MemorySpaceMigrationOperator, AMP::TimeIntegrator::IDATimeOperator, and AMP::TimeIntegrator::TimeOperator.

◆ selectInputVector()

virtual std::shared_ptr< AMP::LinearAlgebra::VectorSelector > AMP::Operator::Operator::selectInputVector ( ) const

virtualinherited

Return the selector for input vectors.

Reimplemented in AMP::Operator::MemorySpaceMigrationLinearOperator, AMP::Operator::MemorySpaceMigrationOperator, AMP::Operator::FlowFrapconJacobian, AMP::Operator::FlowFrapconOperator, AMP::Operator::SubchannelFourEqLinearOperator, and AMP::Operator::SubchannelFourEqNonlinearOperator.

◆ selectOutputVector()

virtual std::shared_ptr< AMP::LinearAlgebra::VectorSelector > AMP::Operator::Operator::selectOutputVector ( ) const

virtualinherited

Return the selector for output vectors.

Reimplemented in AMP::Operator::MemorySpaceMigrationLinearOperator, AMP::Operator::MemorySpaceMigrationOperator, AMP::Operator::FlowFrapconJacobian, AMP::Operator::FlowFrapconOperator, AMP::Operator::SubchannelFourEqLinearOperator, and AMP::Operator::SubchannelFourEqNonlinearOperator.

◆ setDebugPrintInfoLevel()

virtual void AMP::Operator::Operator::setDebugPrintInfoLevel ( int level )

inlinevirtualinherited

Specify level of diagnostic information printed during iterations.

Parameters

level zero prints none or minimal information, higher numbers provide increasingly verbose debugging information.

Reimplemented in AMP::Operator::MemorySpaceMigrationLinearOperator, and AMP::Operator::MemorySpaceMigrationOperator.

Definition at line 97 of file Operator.h.

References AMP::Operator::Operator::d_iDebugPrintInfoLevel.

◆ setMemoryAndBackendParameters()

void AMP::Operator::Operator::setMemoryAndBackendParameters ( std::shared_ptr< AMP::Database > db )

protectedinherited

◆ setVector()

void AMP::Operator::StridedZAxisMap::setVector ( AMP::LinearAlgebra::Vector::shared_ptr result )

overridevirtual

Set a frozen vector for results of the apply operation.

Parameters

result The results vector

Reimplemented from AMP::Operator::Map3to1to3.

◆ subsetInputVector() [1/2]

std::shared_ptr< AMP::LinearAlgebra::Vector > AMP::Operator::Operator::subsetInputVector ( std::shared_ptr< AMP::LinearAlgebra::Vector > vec ) const

inherited

Subset input vector.

◆ subsetInputVector() [2/2]

std::shared_ptr< const AMP::LinearAlgebra::Vector > AMP::Operator::Operator::subsetInputVector ( std::shared_ptr< const AMP::LinearAlgebra::Vector > vec ) const

inherited

Subset input vector.

◆ subsetOutputVector() [1/2]

std::shared_ptr< AMP::LinearAlgebra::Vector > AMP::Operator::Operator::subsetOutputVector ( std::shared_ptr< AMP::LinearAlgebra::Vector > vec ) const

inherited

Subset output vector.

◆ subsetOutputVector() [2/2]

std::shared_ptr< const AMP::LinearAlgebra::Vector > AMP::Operator::Operator::subsetOutputVector ( std::shared_ptr< const AMP::LinearAlgebra::Vector > vec ) const

inherited

Subset output vector.

◆ type()

std::string AMP::Operator::StridedZAxisMap::type ( ) const

inlineoverridevirtual

Return the name of the operator.

Reimplemented from AMP::Operator::ScalarZAxisMap.

Definition at line 33 of file StridedZAxisMap.h.

◆ unpackBuffer()

static void AMP::Operator::Map3to1to3::unpackBuffer	(	const std::vector< comm_data > &	,
		std::map< double, std::pair< int, double > > &
	)

staticprivateinherited

◆ validMapType()

static bool AMP::Operator::StridedZAxisMap::validMapType ( const std::string & s )

static

Returns true if MapType = "ScalarZAxis".

Parameters

[in] s A string extracted from the MapType line in a MeshToMeshMap db

Returns: True iff s == "ScalarZAxis"

◆ waitForAllRequests()

void AMP::Operator::AsynchronousOperator::waitForAllRequests ( )

protectedinherited

Wait for all requests to complete.

Member Data Documentation

◆ CommTagBase

const int AMP::Operator::ScalarZAxisMap::CommTagBase = 20000

staticinherited

The base tag used in communication.

Definition at line 36 of file ScalarZAxisMap.h.

◆ d_backend

AMP::Utilities::Backend AMP::Operator::Operator::d_backend = AMP::Utilities::Backend::Serial

protectedinherited

Definition at line 197 of file Operator.h.

◆ d_commTag

int AMP::Operator::Map3to1to3::d_commTag

privateinherited

The tag used for communication.

Definition at line 120 of file Map3to1to3.h.

◆ d_DOFManager

std::shared_ptr<AMP::Discretization::DOFManager> AMP::Operator::AsyncMapOperator::d_DOFManager

protectedinherited

Definition at line 63 of file AsyncMapOperator.h.

◆ d_dstIterator1

AMP::Mesh::MeshIterator AMP::Operator::Map3to1to3::d_dstIterator1

protectedinherited

Definition at line 108 of file Map3to1to3.h.

◆ d_dstIterator2

AMP::Mesh::MeshIterator AMP::Operator::Map3to1to3::d_dstIterator2

protectedinherited

Definition at line 109 of file Map3to1to3.h.

◆ d_iDebugPrintInfoLevel

int AMP::Operator::Operator::d_iDebugPrintInfoLevel = 0

protectedinherited

Definition at line 187 of file Operator.h.

Referenced by AMP::Operator::Operator::setDebugPrintInfoLevel().

◆ d_iInstance_id

int AMP::Operator::Operator::d_iInstance_id

staticprotectedinherited

Definition at line 191 of file Operator.h.

◆ d_inpDofs

int AMP::Operator::StridedZAxisMap::d_inpDofs

protected

Definition at line 48 of file StridedZAxisMap.h.

◆ d_inpStride

int AMP::Operator::StridedZAxisMap::d_inpStride

protected

Definition at line 48 of file StridedZAxisMap.h.

◆ d_inpVariable

std::shared_ptr<AMP::LinearAlgebra::Variable> AMP::Operator::AsyncMapOperator::d_inpVariable

protectedinherited

Definition at line 64 of file AsyncMapOperator.h.

Referenced by AMP::Operator::AsyncMapOperator::getInputVariable().

◆ d_iObject_id

int AMP::Operator::Operator::d_iObject_id

protectedinherited

Definition at line 189 of file Operator.h.

◆ d_MapComm

AMP_MPI AMP::Operator::AsyncMapOperator::d_MapComm

protectedinherited

Definition at line 58 of file AsyncMapOperator.h.

◆ d_memory_location

AMP::Utilities::MemoryType AMP::Operator::Operator::d_memory_location = AMP::Utilities::MemoryType::none

protectedinherited

Definition at line 195 of file Operator.h.

Referenced by AMP::Operator::Operator::getMemoryLocation().

◆ d_Mesh

std::shared_ptr<AMP::Mesh::Mesh> AMP::Operator::Operator::d_Mesh

protectedinherited

Definition at line 193 of file Operator.h.

Referenced by AMP::Operator::Operator::getMesh(), AMP::Operator::Operator::getMesh(), and AMP::Operator::ContactResidualCorrection::setMasterMesh().

◆ d_mesh1

std::shared_ptr<AMP::Mesh::Mesh> AMP::Operator::AsyncMapOperator::d_mesh1

protectedinherited

Definition at line 61 of file AsyncMapOperator.h.

◆ d_mesh2

std::shared_ptr<AMP::Mesh::Mesh> AMP::Operator::AsyncMapOperator::d_mesh2

protectedinherited

Definition at line 62 of file AsyncMapOperator.h.

◆ d_outDofs

int AMP::Operator::StridedZAxisMap::d_outDofs

protected

Definition at line 48 of file StridedZAxisMap.h.

◆ d_OutputVector

AMP::LinearAlgebra::Vector::shared_ptr AMP::Operator::AsyncMapOperator::d_OutputVector

protectedinherited

Definition at line 68 of file AsyncMapOperator.h.

◆ d_outStride

int AMP::Operator::StridedZAxisMap::d_outStride

protected

Definition at line 48 of file StridedZAxisMap.h.

◆ d_outVariable

std::shared_ptr<AMP::LinearAlgebra::Variable> AMP::Operator::AsyncMapOperator::d_outVariable

protectedinherited

Definition at line 65 of file AsyncMapOperator.h.

Referenced by AMP::Operator::AsyncMapOperator::getOutputVariable().

◆ d_own_mesh1

std::vector<bool> AMP::Operator::Map3to1to3::d_own_mesh1

privateinherited

A list of processors that own each mesh.

Definition at line 116 of file Map3to1to3.h.

◆ d_own_mesh2

std::vector<bool> AMP::Operator::Map3to1to3::d_own_mesh2

privateinherited

Definition at line 117 of file Map3to1to3.h.

◆ d_RequestList

std::vector<AMP_MPI::Request> AMP::Operator::AsynchronousOperator::d_RequestList

protectedinherited

A list of MPI_Requests for use in derived classes.

Definition at line 22 of file AsynchronousOperator.h.

◆ d_ResultVector

AMP::LinearAlgebra::Vector::shared_ptr AMP::Operator::Map3to1to3::d_ResultVector

privateinherited

The place to put the mapped values.

Definition at line 113 of file Map3to1to3.h.

◆ d_SendBuf1

std::vector<comm_data> AMP::Operator::Map3to1to3::d_SendBuf1

privateinherited

The buffer used to perform the asynchronous communication.

Definition at line 136 of file Map3to1to3.h.

◆ d_SendBuf2

std::vector<comm_data> AMP::Operator::Map3to1to3::d_SendBuf2

privateinherited

Definition at line 137 of file Map3to1to3.h.

◆ d_srcIterator1

AMP::Mesh::MeshIterator AMP::Operator::Map3to1to3::d_srcIterator1

protectedinherited

Iterators over the nodes on the boundary.

Definition at line 106 of file Map3to1to3.h.

◆ d_srcIterator2

AMP::Mesh::MeshIterator AMP::Operator::Map3to1to3::d_srcIterator2

protectedinherited

Definition at line 107 of file Map3to1to3.h.

The documentation for this class was generated from the following file:

src/operators/map/StridedZAxisMap.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Parameters

◆ shared_ptr

Constructor & Destructor Documentation

◆ StridedZAxisMap()

◆ ~StridedZAxisMap()

Member Function Documentation

◆ addTo1DMap() [1/2]

◆ addTo1DMap() [2/2]

◆ apply() [1/2]

◆ apply() [2/2]

◆ applyFinish()

◆ applyStart()

◆ beginRequests()

◆ buildMap()

◆ buildReturn()

◆ clearRequests()

◆ createInputVector()

◆ createOutputVector()

◆ endRequests()

◆ getBackendFromInput()

◆ getBufferToAvoidDebugVectorCrashing() [1/2]

◆ getBufferToAvoidDebugVectorCrashing() [2/2]

◆ getInputVariable()

◆ getJacobianParameters()

◆ getMemoryLocation()

◆ getMesh() [1/3]

◆ getMesh() [2/3]

◆ getMesh() [3/3]

◆ getOutputVariable()

◆ getParameters()

◆ getRequest()

◆ isValidVector()

◆ makeConsistent()

◆ reInitializeVector()

◆ requiresMakeConsistentSet()

◆ reserveRequests()

◆ reset()

◆ residual()

◆ selectInputVector()

◆ selectOutputVector()

◆ setDebugPrintInfoLevel()

◆ setMemoryAndBackendParameters()

◆ setVector()

◆ subsetInputVector() [1/2]

◆ subsetInputVector() [2/2]

◆ subsetOutputVector() [1/2]

◆ subsetOutputVector() [2/2]

◆ type()

◆ unpackBuffer()

◆ validMapType()

◆ waitForAllRequests()

Member Data Documentation

◆ CommTagBase

◆ d_backend

◆ d_commTag

◆ d_DOFManager

◆ d_dstIterator1

◆ d_dstIterator2

◆ d_iDebugPrintInfoLevel

◆ d_iInstance_id

◆ d_inpDofs

◆ d_inpStride

◆ d_inpVariable

◆ d_iObject_id

◆ d_MapComm

◆ d_memory_location

◆ d_Mesh

◆ d_mesh1

◆ d_mesh2
